2GIG 2GIG-PIR100-345 Passive Infrared Motion Detector, 345MHz

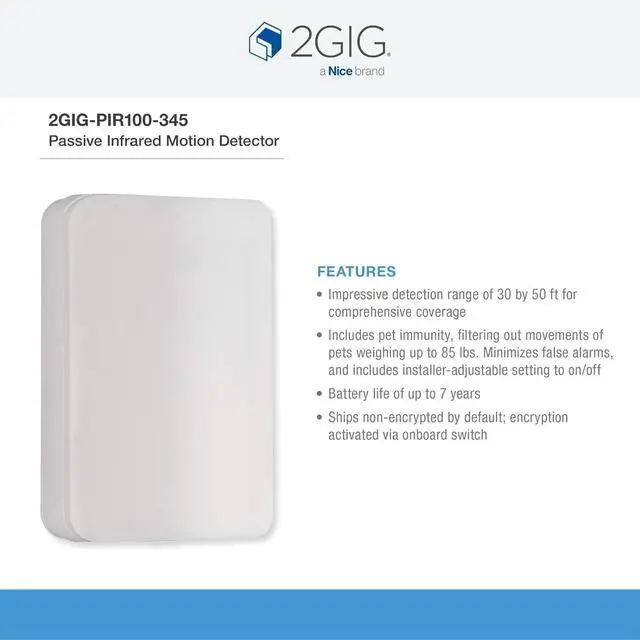

Monitor activity around your home with the 2GIG Passive Infrared Motion Detector, 345MHz. Built with a sleek, low-profile design, this sensor operates on the 345 MHz frequency to communicate with the GC Touch, 2GIG Edge, and earlier 2GIG control panels. With a wide detection range of 30 by 50 feet, this motion detector features pet immunity for animals up to 85 lbs. to enhance security by allowing the sensor to detect human movement while reducing false alarms caused by small pets. It also features an On/Off switchable encryption to enable or disable encrypted communication between the motion detector and the 2GIG control panel. The motion detector is an interior wall-mounted unit and comes with an included battery that can last up to 7 years.
Wall-mounted unit for indoors with detection range of 30(D) x 50(W) feet
Works with GC Touch, 2GIG Edge, and earlier 2GIG control panels on the 345MHz frequency

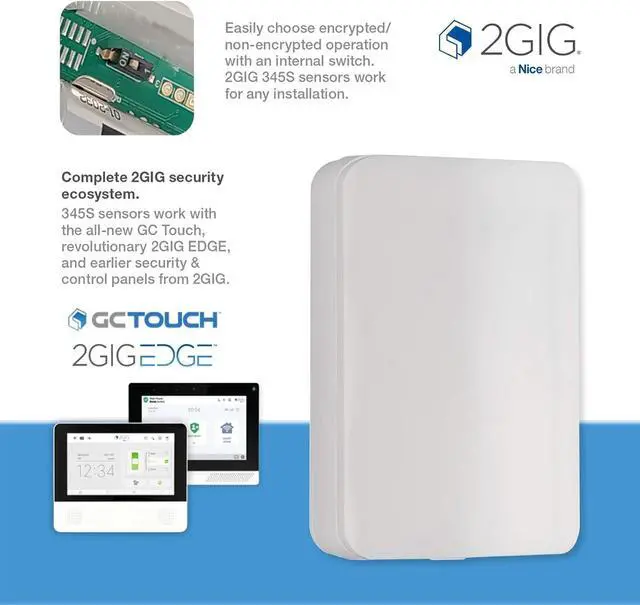

On/Off switchable encryption allows detector to enable/disable communication with the control panel
Ignores pets up to 85 pounds to minimize false alarms
Includes CR 123A 3V battery (lasts up to 7 years)
ContentsPassive Infrared Motion Detector, 345MHz
CR 123A 3V Battery
Instruction Manual
Technical DetailsManufacturer Part #: 2GIG-PIR100-345
UPC: 093863186516
Transmitter Frequency: 345MHz
Compatibility: 2GIG Panels
Code Outputs: Alarm, Alarm Restore, Tamper, Tamper Restore, Supervisory, Low Battery
Supervisory Interval: 70 Minutes
Sensor Type: Quad Element
Pet Immunity: Up to 85 lbs (38 kg)
Suggested Mounting Height: 7.5 ft. (2.3 m)
Sensor Range: 30 ft. (9.1m) x 50 ft. (15.2 m)
Horizontal Sensing Angle: 100° Maximum Spread
Dimensions: 3.53(L) x 2.35(W) x 1.63(H) inches (5.4 x 6 x 4.1 cm)
Weight: 3.5 oz (98 g)
Housing Material: ABS Plastic
Operating Temperature: 32°-120° F (0°-49° C)
Relative Humidity: 5% to 90%, Non-condensing
Battery (Included): CR 123A 3V or equivalent lithium battery
Certification: ETL, FCC, and IC
