MENGQI-CONTROL in and Out Single Door Security Locking System Access Control with Waterproof RFID Keypad Reader+600LBS Magnetic Lock Power Supply Box + Cards/Key fobs (Phone APP remotely Open Door)
- Control 1 door.Get in and out door by swiping card or PIN code. The systems with 2 RFID waterrpoof keypad readers can track in and out.Can store/download/check entry records and generate report by professional management software.
- Control of memory up to 20,000 user / up to 100,000 logs. Auto open/close at any pre-set time during any day. Support "who" can enter which door at certain time, authorized access control.Also support swipe 4 times continuously to keep door open.
- Card Type: EM-ID Card .Response Speed: Less than 0.2 second.Exit button has base, easy install.The electric magnetic lock is with 600bls holding force.
- Have smart phone APP to open lock remotely.App operate system: iOS & Android.Desktop USB reader,read card number into software so that easy programming/register user. Detail video guide and wire diagram make all easily, you can DIY.
- Network communication via TCP/IP. Software Supportable Database: Access & SQL Server. Support Win7/Win8/Win10/Win11 both 32 & 64 bit
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
We provide video guide+detail wire diagram,so you can easily setup system.
We only do quality product and service, because this is for security system, can check video before purchase.

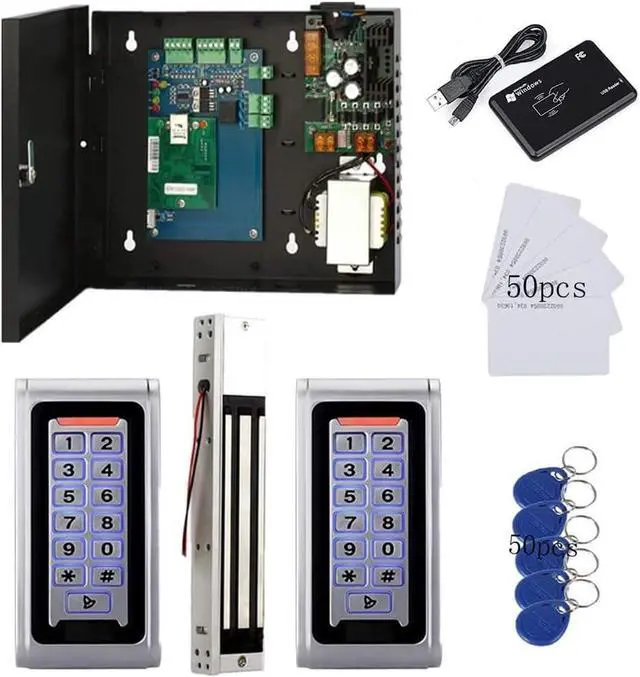

Package Include:

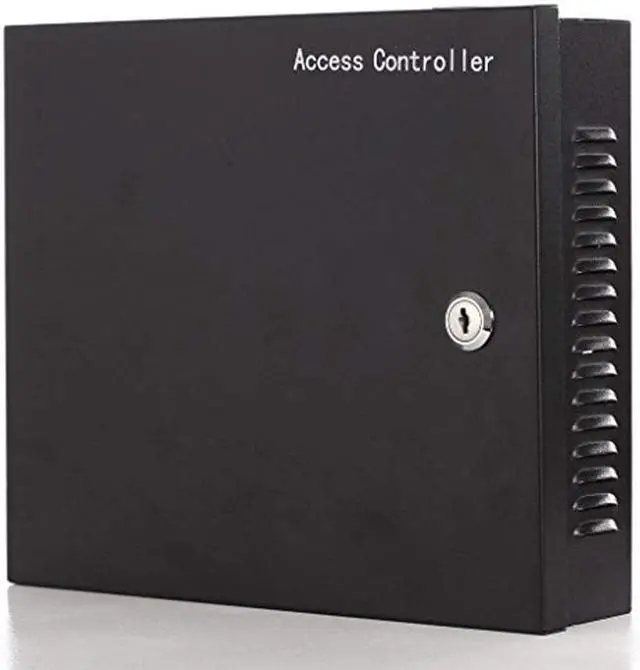

1 x Power supply Box (110-240V input, 5A output, to power the whole system, also as cabinet for above control board)

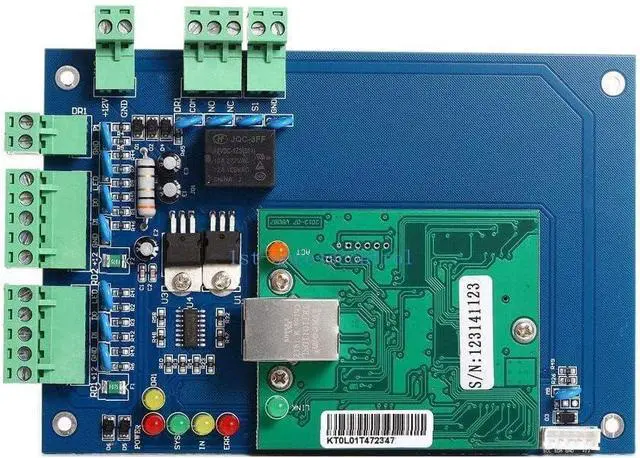

1 x 1 Door Wiegand Access control Panel
1 x Electric Magnetic Lock(600lbs /280kg holding force)
2 x Metal RFID Keypad Reader (IP68 waterproof )
1 x RFID Enroll USB Reader
50 x RFID Cards

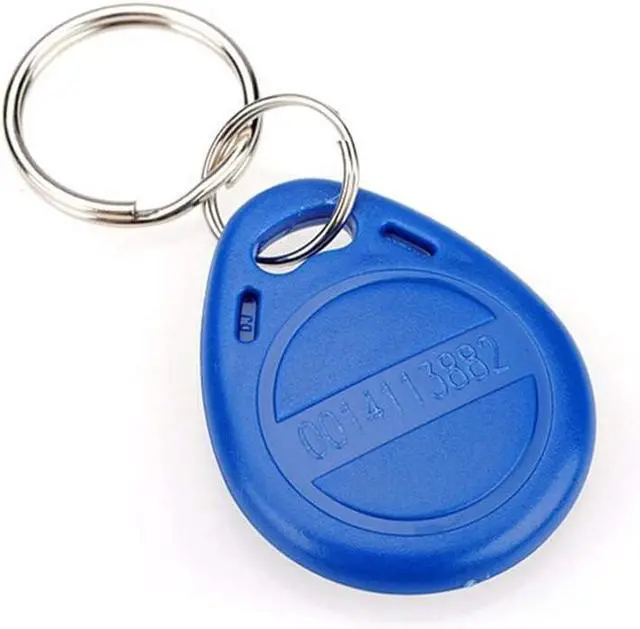

50 x RFID Keychains
1 x User manual with Detail Instruction/Wire diagram/Video Guide
Basic funtion: swipe card/key fob, input PIN code or use card + PIN to open door.
Easily add/delete/activate/disable the user open privilege by professional management software.
Support phone app to open door locally or remotely.
Can be used for high security area, the control board as master unit is put inside room.
Can check/download/export the detail history entrance record.
Allow access for certain door at certain time for different users.
Can keep door auto open during business hour and then auto close at set time, support holiday security control.
Can swipe certain times to keep open and swipe certain times to close door.
Can be used for user attendance check also.
A lot other features such as anti-pass back, 1st card open, multi-card open .etc.
......
Voltage/Current: 12V/500mA
Lock body size: 9.84L x 1.89W x 0.98H(inch); Plate size: 7.09L x 1.50W x 0.47H(inch)
It is a high-performance 600lbs holding force electric magnetic lock which suit for many access control system. Suitable for :wooden door, metal door, etc.
NC mode(Locked while supplied with power).
Performance testing: 1000000 times aging test.
Safety function: built-in voltage spike suppressor
Anti-residual magnetism designed.Design without mechanical failure.MOV provides reverse curren
Track in and Out for 1 Door Security Access Control System with 2 RFID Waterproof Keypad Reader+600lbs Electronic Magnetic Lock+Power Supply Box What the system can do: Electric Magnetic Lock:
We only do quality product and service, because this is for security system, can check video before purchase.
Package Include:
1 x Power supply Box (110-240V input, 5A output, to power the whole system, also as cabinet for above control board)
1 x 1 Door Wiegand Access control Panel
1 x Electric Magnetic Lock(600lbs /280kg holding force)
2 x Metal RFID Keypad Reader (IP68 waterproof )
1 x RFID Enroll USB Reader
50 x RFID Cards
50 x RFID Keychains
1 x User manual with Detail Instruction/Wire diagram/Video Guide
Basic funtion: swipe card/key fob, input PIN code or use card + PIN to open door.
Easily add/delete/activate/disable the user open privilege by professional management software.
Support phone app to open door locally or remotely.
Can be used for high security area, the control board as master unit is put inside room.
Can check/download/export the detail history entrance record.
Allow access for certain door at certain time for different users.
Can keep door auto open during business hour and then auto close at set time, support holiday security control.
Can swipe certain times to keep open and swipe certain times to close door.
Can be used for user attendance check also.
A lot other features such as anti-pass back, 1st card open, multi-card open .etc.
......
Voltage/Current: 12V/500mA
Lock body size: 9.84L x 1.89W x 0.98H(inch); Plate size: 7.09L x 1.50W x 0.47H(inch)
It is a high-performance 600lbs holding force electric magnetic lock which suit for many access control system. Suitable for :wooden door, metal door, etc.
NC mode(Locked while supplied with power).
Performance testing: 1000000 times aging test.
Safety function: built-in voltage spike suppressor
Anti-residual magnetism designed.Design without mechanical failure.MOV provides reverse curren
Track in and Out for 1 Door Security Access Control System with 2 RFID Waterproof Keypad Reader+600lbs Electronic Magnetic Lock+Power Supply Box What the system can do: Electric Magnetic Lock:
