Rsrteng CCTV Tester 8K 32MP 4K 12MP IP Camera Tester with POE++ max 90W, 8MP TVI/CVI/AHD/CVBS CCTV Camera Monitor, 1CH SFP Interface, IPC Test WiFi Cable Tester Network Tools HD I/O VGA Power Output

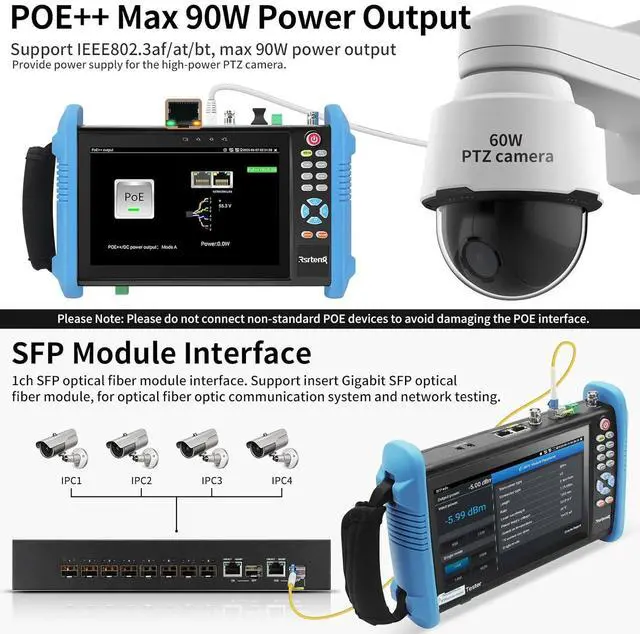

POE++ MAX 90W Power Output & 1CH Gigabit SFP Module InterfaceRsrteng IPC-9800ADH Pro CCTV Tester support standard IEEE 802.3af&IEEE 802.3at & IEEE 802.3bt, max 90W power output.Provide power supply for high-power PTZ speed dome camera. 1CH SFP optical fiber module interface,support insert Gigabit SFP optical fiber module for optical fiber network testing.

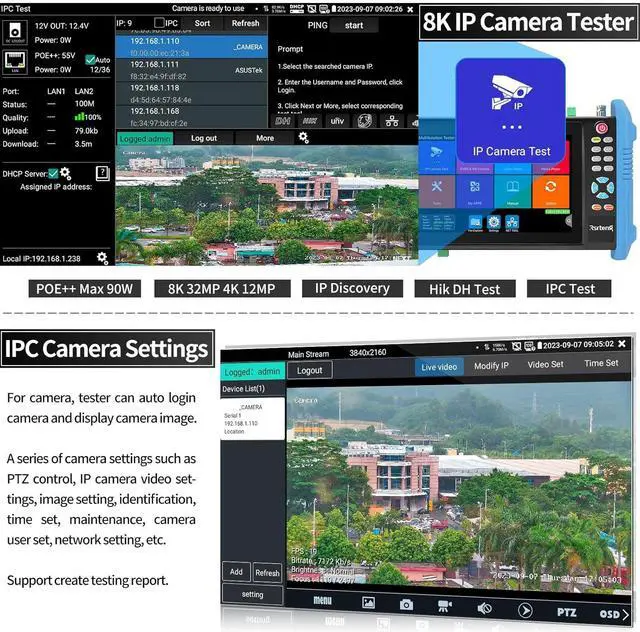

IP Camera TesterNetwork camera tester support max 8K 32MP 4K IP 12MP IP Camera test. Real-time network traffic detection in the status bar. Rapid Video, auto view the video, create testing report. IP Discovery/IPC test /RTSP play /Client APK. Powerful network tools trace route, link monitor, DHCP server, port flashing, Ping test.

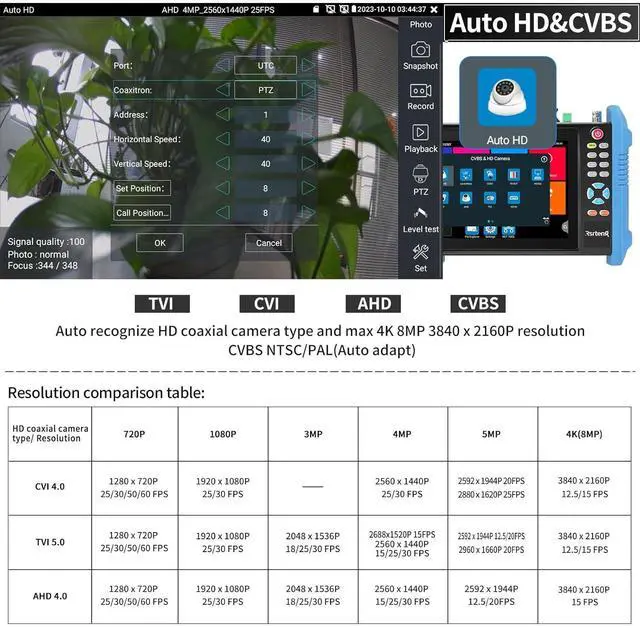

Coaxial HD CCTV Camera testSupport max 8MP(3840x2160P) TVI/AHD/CVI camera test, support UTC PTZ control and call OSD menu. Built-in "Auto HD" APP can automatically recognize the camera type when viewing HD AHD/TVI/CVI/CVBS cameras. cctv camera tester also support CVBS analog camera test. Support Color bars test.

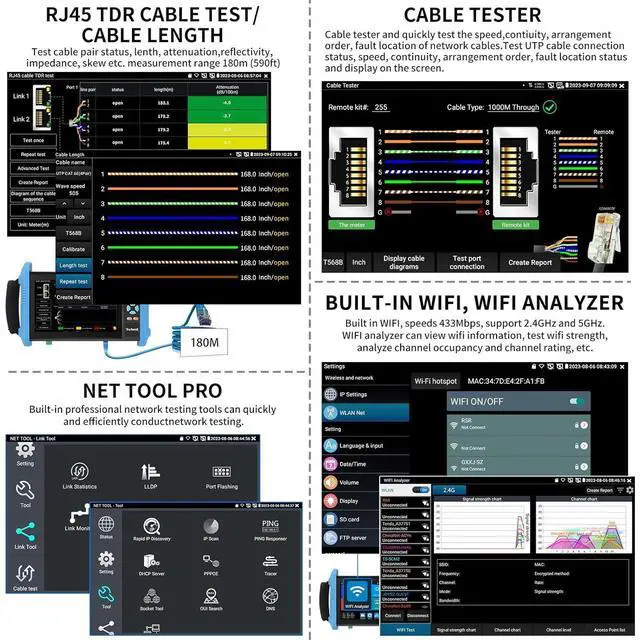

Professional testing tools Built-in special tools for Hik and for DH, support batches of fast setting of Hik and DH cameras. At the same time, it has built-in OVIF test tool and other brand camera test tools, which can be compatible with most existing cameras. UTP cable test. RJ45 TDR cable test can test cable pair status, length, attenuation, reflectivity, impedance, skew etc, measurement range 180M. Use it to make your installation simple and efficient.

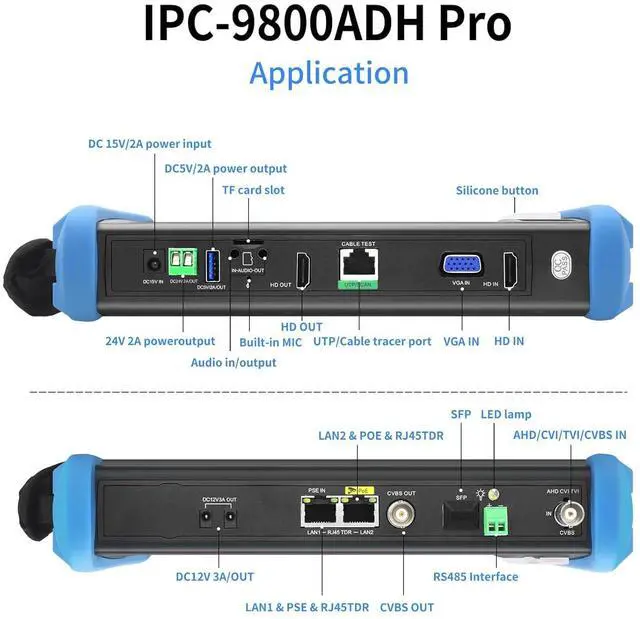

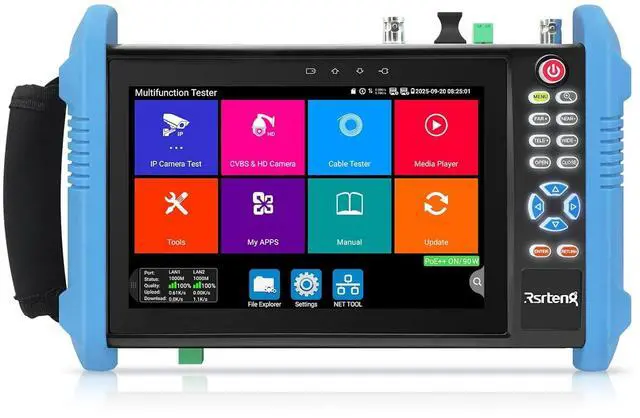

More parameters Camera TesterCCTV camera monitor upgraded to Android 11 version, which can install more apps in it. With 7 inch IPS touch screen, 1280*800 resolution. Dual Ethernet port 10/100/1000Mbps, Support RS485, Audio I/O, VGI input, HD I/O, WiFi, DC output:24V/2A,12V/3A,5V/2A, LED lamp. Cemera tester Dimension/Net weight 9.4 x 5.3 x 1.4 inch/0.93kg(2.07lbs).
