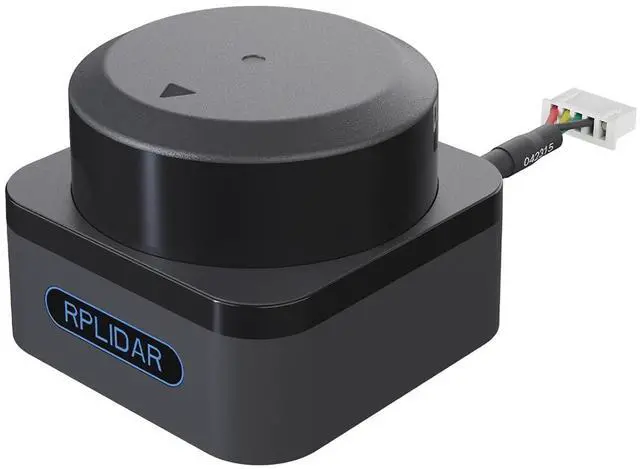

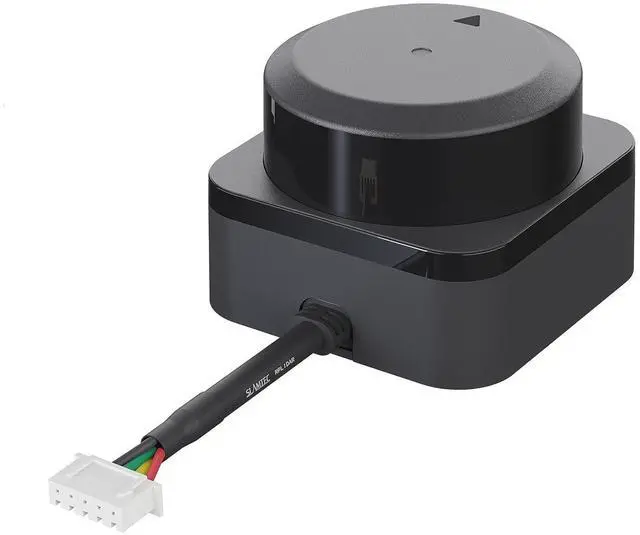

WayPonDEV RPLIDAR S3 Lidar Sensor 2D 360 Degree 40 Meters Scanning Radius IP65 ROS SLAM LIDAR Sensor Scanner for Obstacle Avoidance and Navigation of Robots (TTL UART)

[High-Speed Laser Ranging Capability] Slamtec RPLIDAR S3 lidar sensor adopts laser SL-TOF ranging technology, 32KHz times/second frequency, 0.05~40m measuring distance, 10~20Hz Scan frequency, 0.15°~0.18° resolution and TTL UART interface. And it uses non-contact energy and signal transmission technology, so that the S3 lidar can run stably and reliably for a long time.

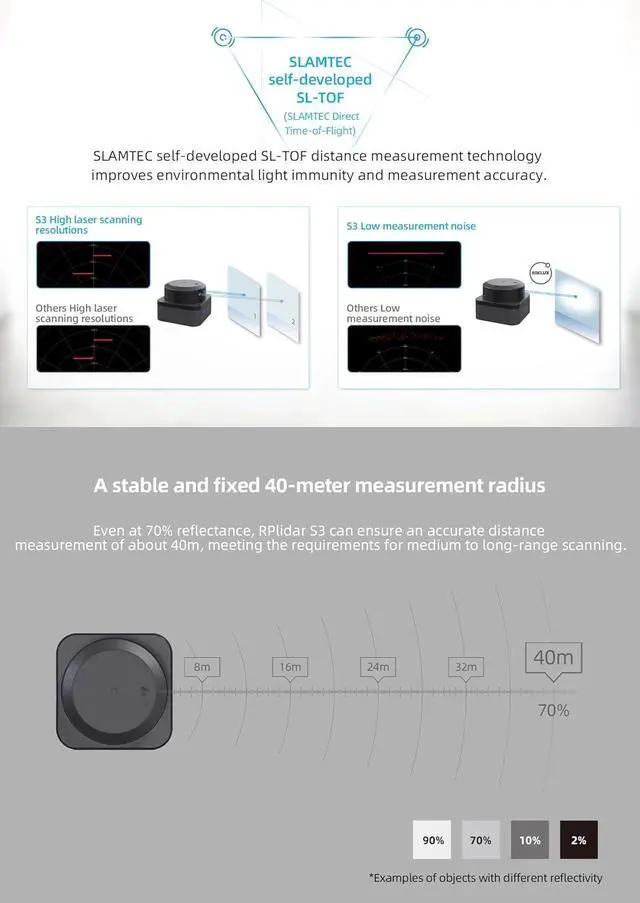

[Strong Light Adaptability] RPLIDAR S3 rangefinder has a more stable ranging performance when detecting long-distance objects, switching between black and white objects, and strong light direct objects, and can achieve ideal mapping within a 40-meter ranging radius in indoor and outdoor environments Effect.

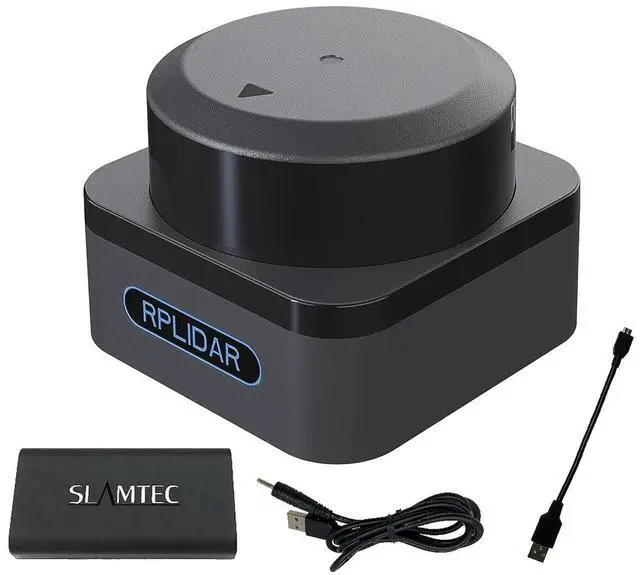

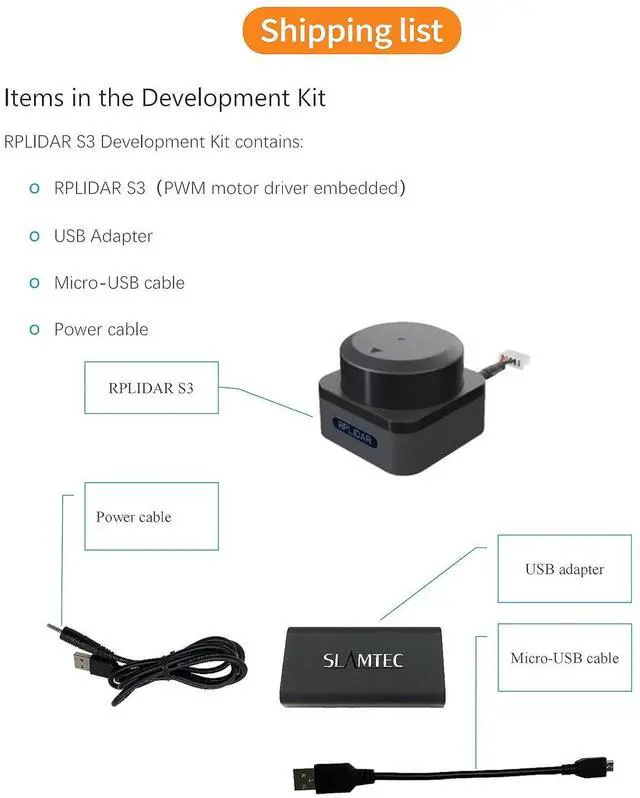

[Plug and Play] With the 3 functions: built-in serial port and USB interface, open source SDK and tools and integration with ROS. Simply connect the RPLIDAR and a computer via a micro USB cable, users can use the RPLIDAR without coding work. High-speed RPVision Range Engine: RPVision 2.0
[Wide Range of Application Scenarios] RPLIDAR S3 is a two-dimensional laser ranging radar, which can be used for general simultaneous positioning and mapping (SLAM), environmental scanning and 3D reconstruction, service robots for a long time, industrial fields, home care/ Navigation and positioning of cleaning robots, obstacle detection.
[Various Development Platforms] In order to facilitate users to use RPLIDAR S3 lidar scanner for product development and accelerate the development cycle, we provide the Framegrabber plug-in in the robot management and development software RoboStudio for users to graphically debug. And The SDK development kit under Linux and other platforms supports Windows and Linux operating systems.
[Wiki] SDK Development or User Manual: "https://www.slamtec.com/en/Support#rplidar-s3". After sales: wpd#youyeetoo.com(#-@). Or Click "WayPonDEV" and ask a question. If you have any technical quetsions please leave messages to us, thank you !
