Ethernet IP Extender Over Coax Kit, Extension Distance Up to 3938ft(1200m), 10/100mbps EOC Converter Set for IP Security CCTV Cameras

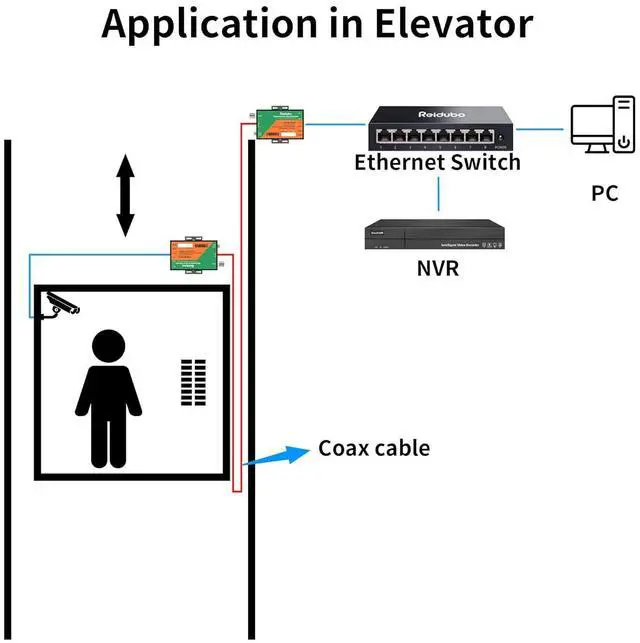

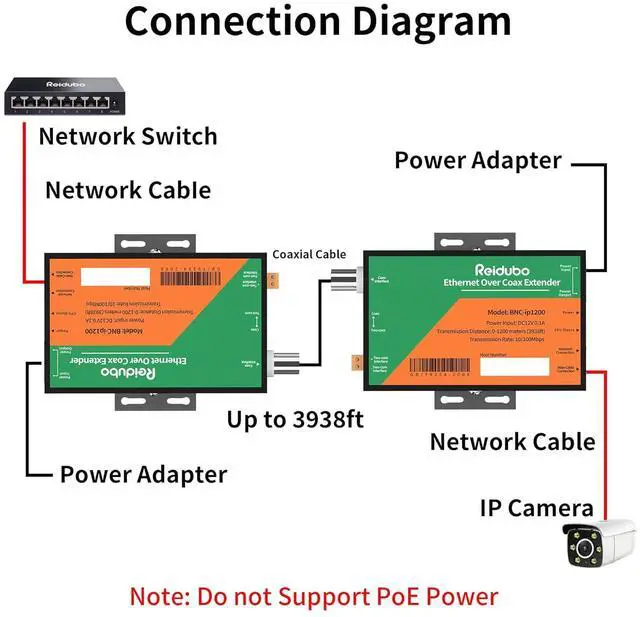

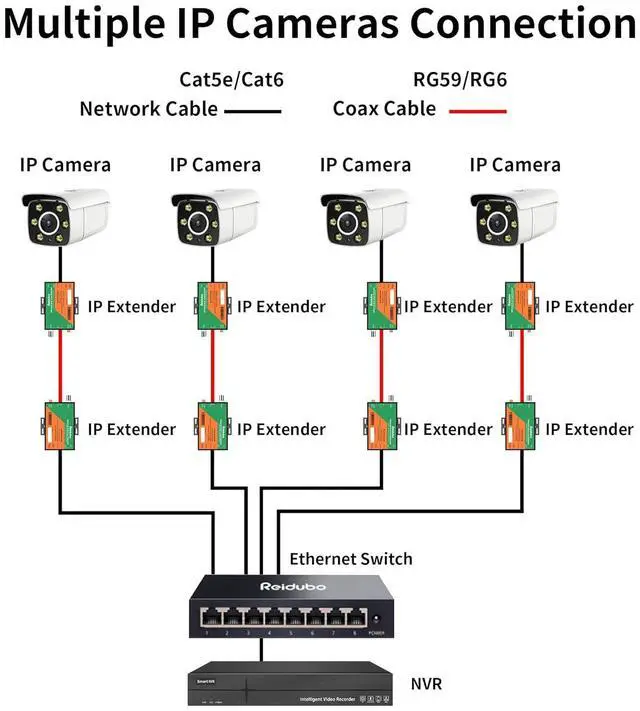

Long-Distance Signal TransmissionExtends IP signals such as network data or HD video up to 3938ft (1200 meters) via coaxial cable (RG6/RG59/RG11), ideal for CCTV cameras, security systems, or remote network access where Ethernet cables can't reach.

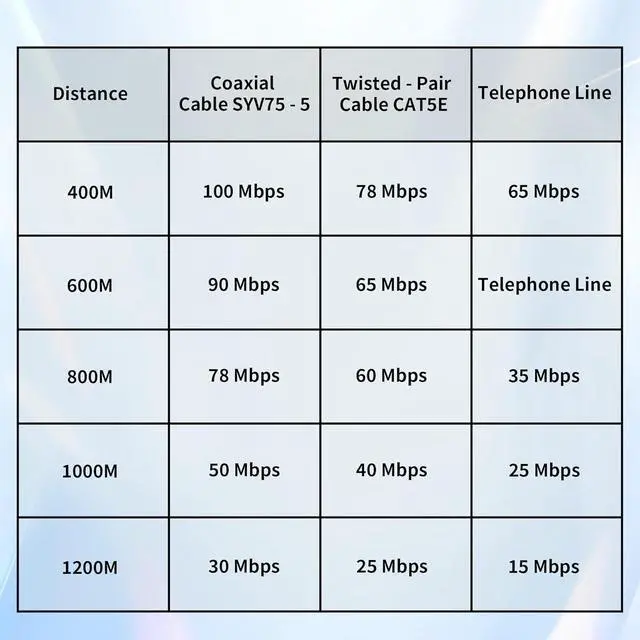

Transmission Distance & SpeedWith coaxial cable, the transmission distance and speed of this Ethernet IP extender can achieve: 1312ft (400m) at 100Mbps, 2624ft (800m) at 78Mbps, 3937ft (1,200m) at 30Mbps. For distances over 1,640ft (500m), use at least RG59. With twisted pair, it will be: 1312ft (400m) at 78Mbps, 2624ft (800m) at 60Mbps, 3937ft (1,200m) at 25Mbps. Supports mixed deployment of 2-core twisted pair and coaxial cables.

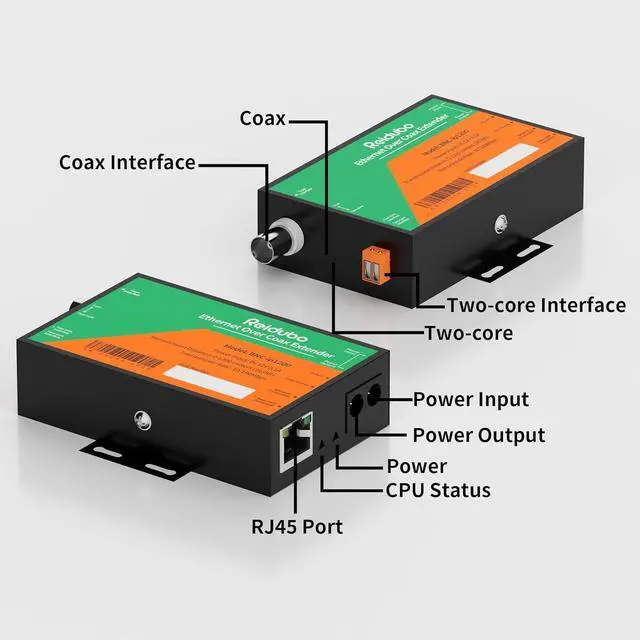

Interfaces IP interface: A RJ45 port, a BNC-F port, a twp-core interface, power input and power output ports. Indicator lights: CPU Status indicator light, LAN indicator light, PWR indicator light.

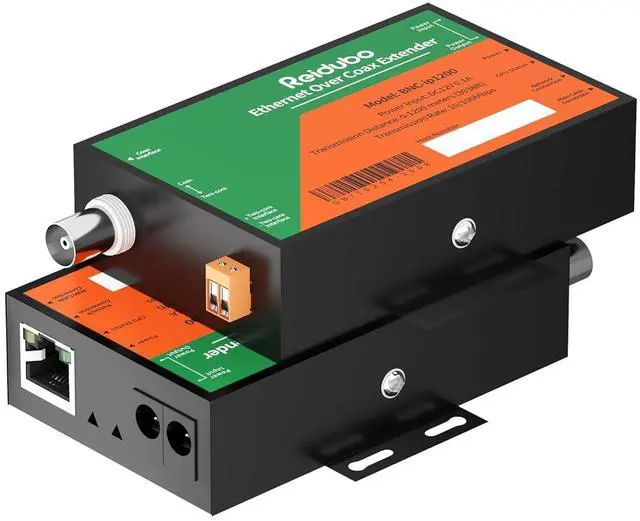

Support Wall-mountingExquisite and compact, easy to install, support wall-mounting. Dimensions: L 95 * W 63 * H 22mm. The all metal shell design, fast and efficient heat dissipation, ensuring the normal and stable working of the devices.
Non PoE AvailableThe product does not support PoE function, and both the transmitting and receiving ends of it need a DC power adapter for power supply.
