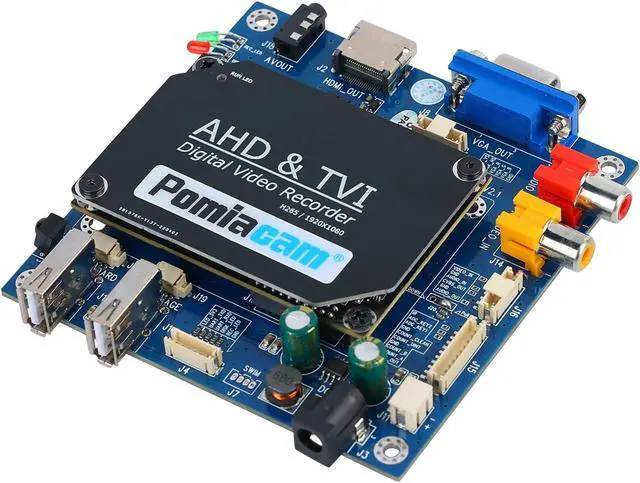

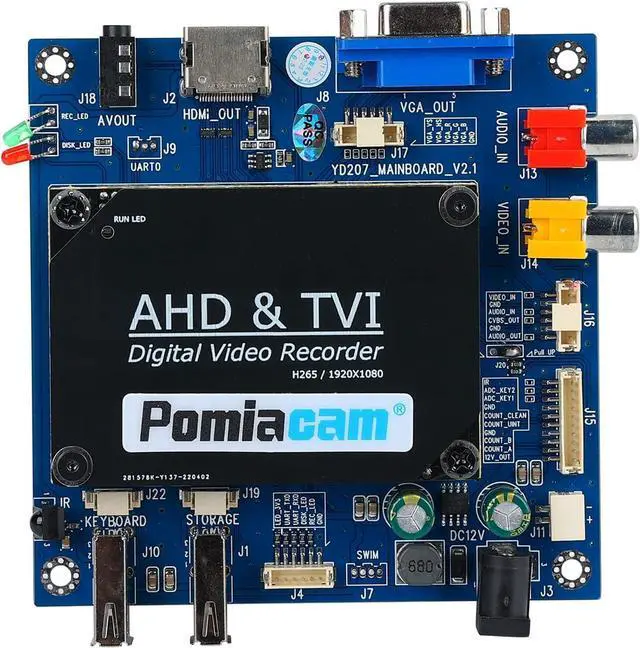

DVR Board AHD 1CH 1080P Video Recording Motherboard CVBS, AHD, TVI Access D1, 720P, 1080P Support HDMI VGA CVBS Soutput Ports

DVR MotherboardDCH122 motherboard is a video storage motherboard specially developed for the industrial endoscope market. It provides a variety of video formats for input, including AHD, TVI, CVBS and other formats, and HDMI, VGA, CVBS and other interfaces for output, which is convenient to choose freely.
Compared with other DVRSDVR Motherboard has less image quality attenuation, making the image more fidelity. In the scenario of long cable transmission, DVR Motherboard has lower signal requirements, and costs ordinary PC keyboard to access real-time OSD editing, file name modification, serial communication and other functions. Using this module can greatly shorten the user's product development cycle!
Support multi-functionDVR Motherboard Support CVBS, AHD, TVI and other formats (D1, 720P, 1080P) camera access, HDMI VGA CVBS output interface, audio input and output, remote control, UART, ADC key operation, support PC keyboard to edit OSD text
AHD&TVI HD VIDEO PRECESSING DVR Motherboard Support multi-language menu, support encoder to measure cable distance, support photo and video recording, media file name can be changed, support scaling, U disk storage (SD card storage needs to add conversion circuit), support MP4 video file format, support image brightness and chromaticity contrast adjustment
Customizable & Warranty PeriodWe gift a 12-month warranty period. Feel free to contact me with any questions. You can customize the startup screen, if you need to customize the startup screen, you can contact me by email, this is my email: sales09@autopvision.com
