Rsrteng CCTV Camera Tester, 8K 32MP IP Camera Tester with POE++ Max 90W 8MP CVI TVI AHD SDI CVBS Camera Tester 7inch IPS Touch Screen CCTV Tester Support SFP, WiFi HD IPC Tester IPC-9800ADHS Pro

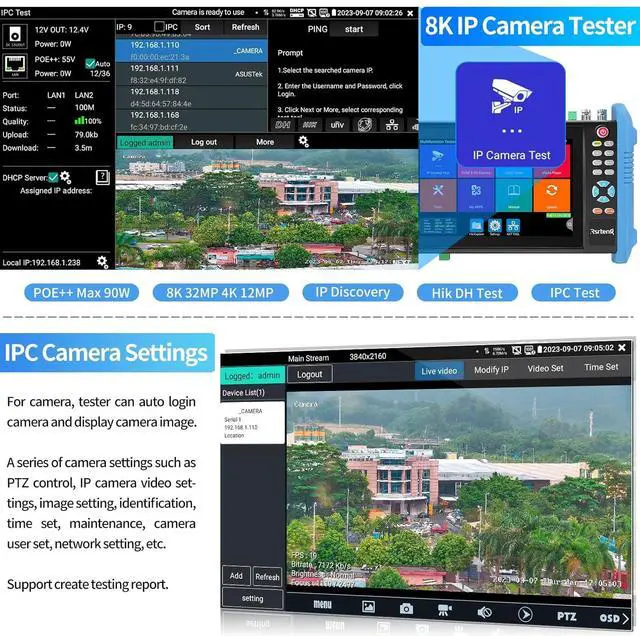

IP Camera TesterNetwork camera tester support max 8K 32MP 8160*3616P 4K 12MP 4000*3000P IP Camera test. Real-time network traffic detection in the status bar. Rapid Video, auto view the video, create testing report. IP Discovery/IPC test /RTSP play /Client APK. CCTV Tester Built-in special tools for Hik and for DH and other 3rd brand camera test tools, support batches of fast setting of Hik and DH cameras and compatible with most existing cameras.

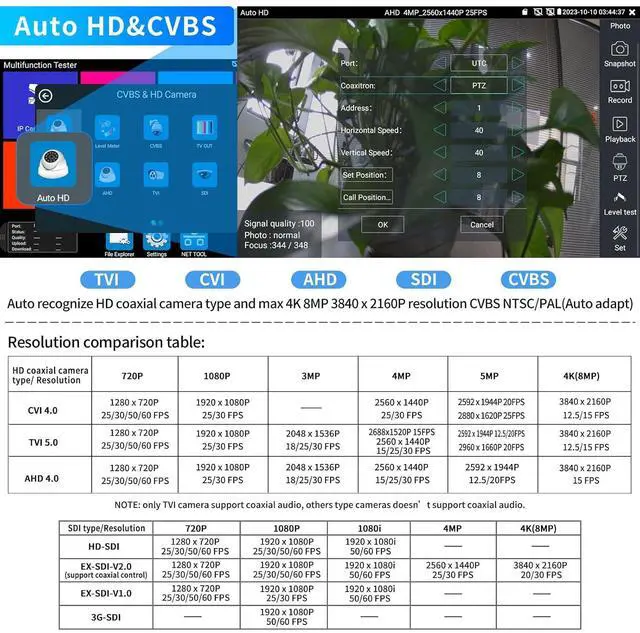

Coaxial HD CCTV Camera testCCTV tester monitor support max 8MP(3840x2160P) TVI / AHD / CVI / SDI coaxial camera test,UTC PTZ control and call OSD menu. Built-in "Auto HD" APP can automatically recognize the camera type when viewing HD AHD / TVI / CVI / SDI cameras. The 7 inch ip tester also support CVBS analog camera test. Color bars test.

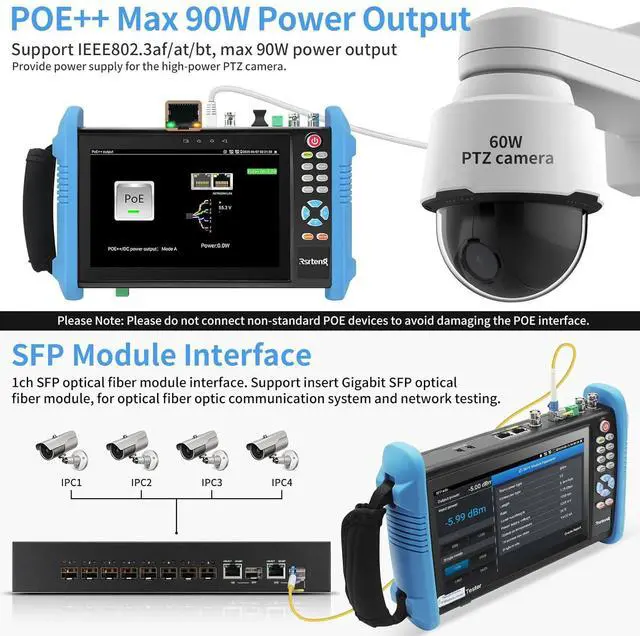

POE++ MAX 90W Power Output & 1CH Gigabit SFP Module InterfaceRsrteng IPC-9800ADHS Pro CCTV Tester support standard IEEE 802.3af & IEEE 802.3at and IEEE 802.3bt,max 90W power output.Provide power supply for high-power PTZ speed dome camera. 1CH SFP optical fiber module interface,support insert Gigabit SFP optical fiber module for optical fiber network testing.

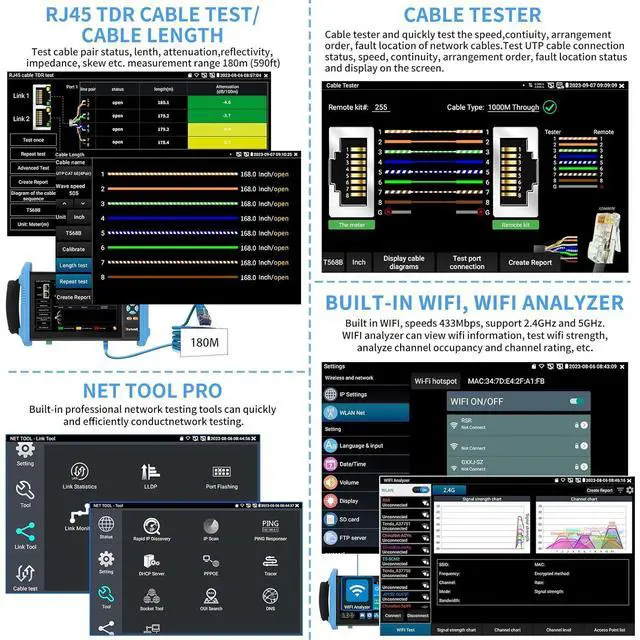

Professional testing toolsPower management can view real-time data such as voltage and power of POE, DC12V,DC24V output/PSE, and DC15V input. Powerful network tools trace route, link monitor, DHCP server, port flashing, Ping test. UTP cable test. RJ45 TDR cable test can test cable pair status, length, attenuation, reflectivity, impedance, skew etc, measurement range 180M. Use it to make your installation simple and efficient.

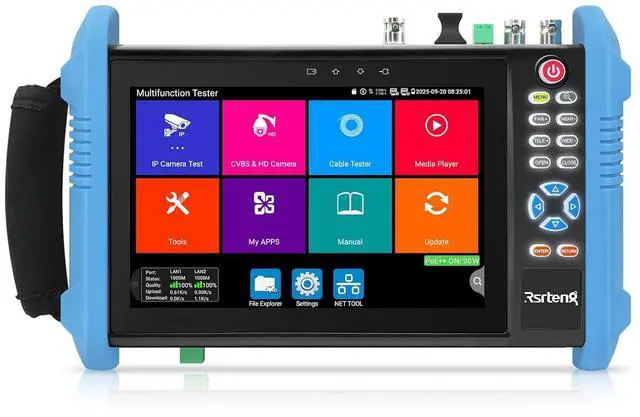

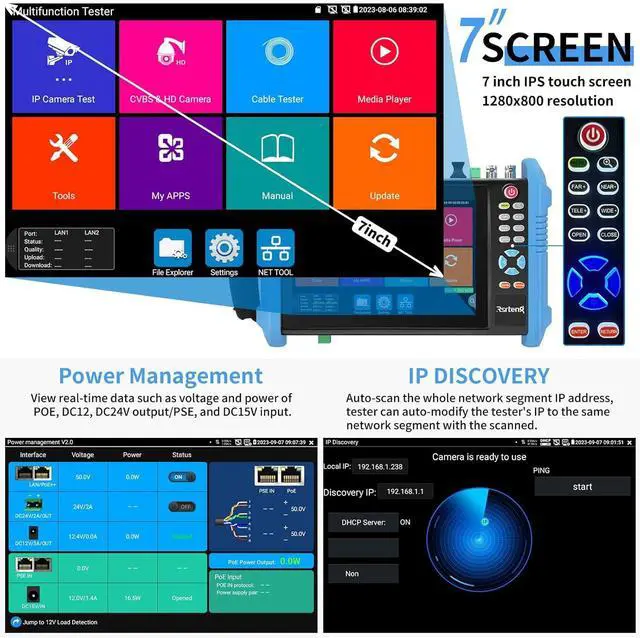

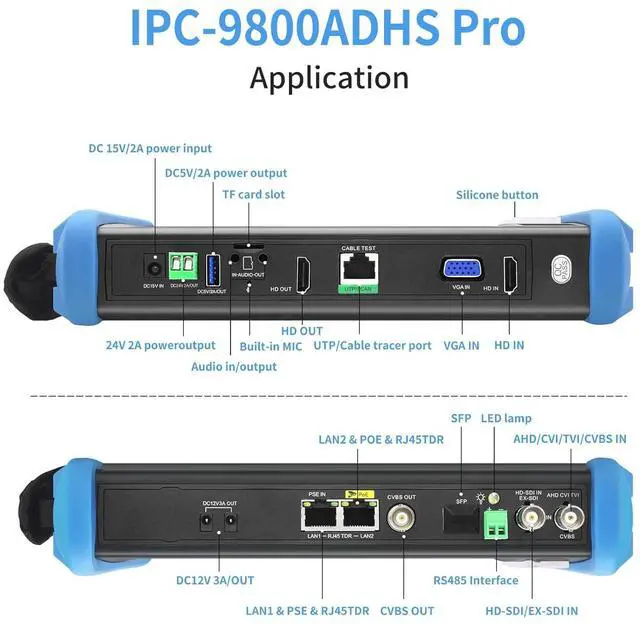

More parameters Camera TesterCCTV camera monitor upgraded to Android 11.0 version, which can install more apps in it. With 7 inch IPS touch screen, 1280*800 resolution. Dual Ethernet port 10/100/1000Mbps, Support RS485, Audio I/O, VGI input, HDMI I/O, WiFi, DC output:24V/2A,12V/3A,5V/2A, LED lamp. Cemera tester Dimension/Net weight 9.4 x 5.3 x 1.4 inch/0.93kg(2.07lbs).
More modelsIPC-9800 series models include IPC-9800(B07K8RFWX6), IPC-9800ADH(B094W22TVT), IPC-9800ADHS(B07K8QD2H3), IPC-9800CADHS(B0BJDVWV6T), IPC-9800CMADHS(B0BYNDNWS4), All features IPC-9800MOVTADHS(B07K8KWKRN). If you are interested in any of the models, you can to browse product information.
