Upgrade Portable Wrist CCTV Tester,5'' LCD Monitor,HDMI in &VGA in,Camera Debugging Helper
- CCTV TESTER5-inch 800X480 Resolution Screen PAL/NTSC (Auto adapt). CCTV Tester ,Hybrid camera tester is able to test and debug coaxial 720P / 960P / 1080P /3MP/4MP/5MP/8MP AHD camera &CVI camera & TVI camera and traditional CVBS analog camera Does not support IP & SDI cameras).
- PTZ CONTROLSupport RS485 ,Compatible with multiple PTZ protocols (PELCO-D / PELCO-P ); baud rate: 2400, 4800, 9600, 19200 (optional), zooms in/out the lens, adjusts the focus, aperture/setsPTZ continuing rotate test.
- UTC CONTROLPress and hold the M menu button for 5 seconds to enter, UTC is displayed at the top of the screen. Press the menu button to bring up the camera menu and operate the UTC menu with the up / down / left / right input keys. Press the M menu button for 5 seconds to exit UTC mode.
- HDMI &VGA inputsupport resolution (800*600 , 1024*768 , 1280*720 , 1280*1024 , 1440*900 , 1920*1080 ) 60HZ.
- APPLICATION UTP cable test: Test UTP cable connection status and display o
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
CCTV TESTER5-inch 800X480 Resolution Screen PAL/NTSC (Auto adapt). CCTV Tester ,Hybrid camera tester is able to test and debug coaxial 720P / 960P / 1080P /3MP/4MP/5MP/8MP AHD camera &CVI camera & TVI camera and traditional CVBS analog camera Does not support IP & SDI cameras).
PTZ CONTROLSupport RS485 ,Compatible with multiple PTZ protocols (PELCO-D / PELCO-P ); baud rate: 2400, 4800, 9600, 19200 (optional), zooms in/out the lens, adjusts the focus, aperture/setsPTZ continuing rotate test.
UTC CONTROLPress and hold the M menu button for 5 seconds to enter, UTC is displayed at the top of the screen. Press the menu button to bring up the camera menu and operate the UTC menu with the up / down / left / right input keys. Press the M menu button for 5 seconds to exit UTC mode.

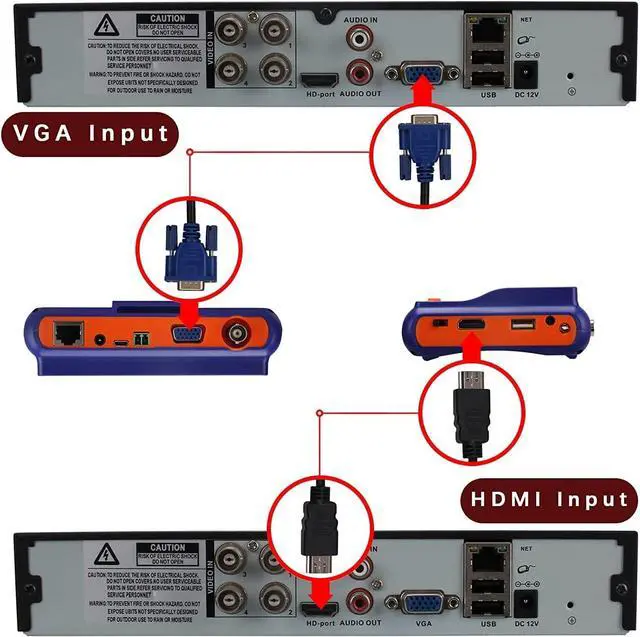

HDMI &VGA inputsupport resolution (800*600 , 1024*768 , 1280*720 , 1280*1024 , 1440*900 , 1920*1080 ) 60HZ.

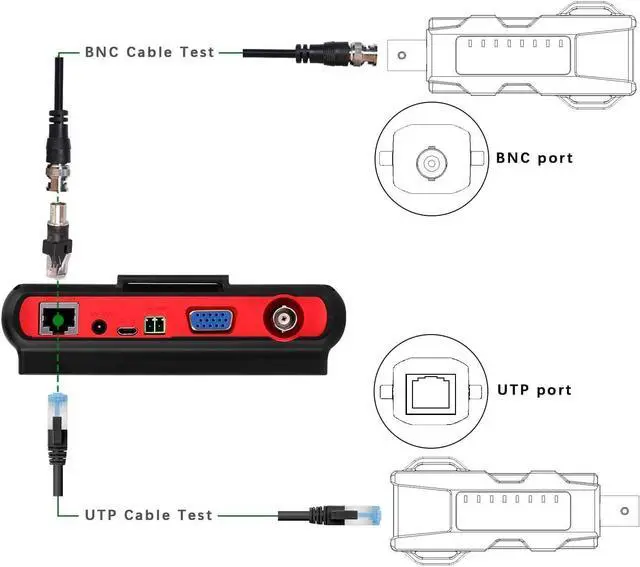

APPLICATION UTP cable test: Test UTP cable connection status and display on the screen(BNC cable&LAN cable).Audio test, Supports 12 languages to choose from ,USB2.0 interface provides 5V / 1A emergency power output,Power the camera with DC 12V /1A power output from the tester.
PTZ CONTROLSupport RS485 ,Compatible with multiple PTZ protocols (PELCO-D / PELCO-P ); baud rate: 2400, 4800, 9600, 19200 (optional), zooms in/out the lens, adjusts the focus, aperture/setsPTZ continuing rotate test.
UTC CONTROLPress and hold the M menu button for 5 seconds to enter, UTC is displayed at the top of the screen. Press the menu button to bring up the camera menu and operate the UTC menu with the up / down / left / right input keys. Press the M menu button for 5 seconds to exit UTC mode.
HDMI &VGA inputsupport resolution (800*600 , 1024*768 , 1280*720 , 1280*1024 , 1440*900 , 1920*1080 ) 60HZ.
APPLICATION UTP cable test: Test UTP cable connection status and display on the screen(BNC cable&LAN cable).Audio test, Supports 12 languages to choose from ,USB2.0 interface provides 5V / 1A emergency power output,Power the camera with DC 12V /1A power output from the tester.
