Rsrteng X7-ADHS CCTV Camera Tester 8K 32MP IP Camera Test 7-inch IPS Touch Screen Monitor CCTV Tester with HD TVI/CVI/AHD/SDI/CVBS/Support POE WiFi HD 8GB TF Card

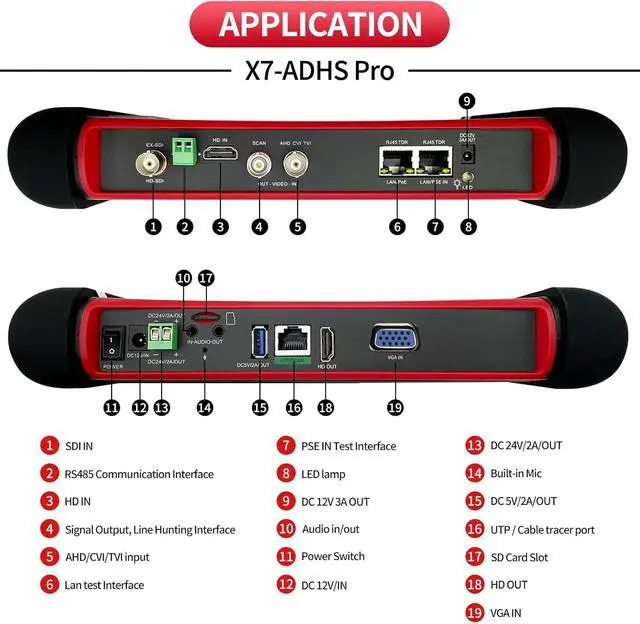

CCTV Camera TesterModel:X7-ADHS Pro .7 inch touch screen tester, 1280*800 high resolution.Support UTP cable test and Support POE, WiFi, 10/100/1000M Ethernet, RS485, Audio in, HD I/O,The camera tester tool will make your installation process simple and efficient. Note: Please do not connect any live cables or equipment to the TDR or UTP interfaces.

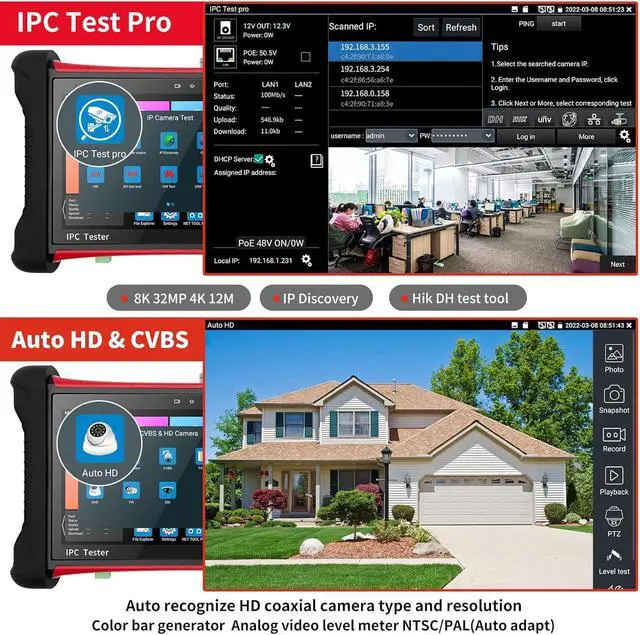

IP Camera TestHD camera tester support max 8K 32MP 12MP 4K IP camera test. Rapid Video Auto view the video, create testing report. Multi-brand PC test.Support batch activate for Hik & DH cameras and modify IP address,password etc; IP Discovery/IPC test /RTSP play/Client APK.
HD Coaxial Camera Test Built-in "Auto HD" APP can automatically recognize the camera type.Max 8MP (3840x2160P) TVI/AHD/CVI/EX-SDI,HD-SDI,3G-SDI/CVBS analog camera test,NTSC/PAL(Auto adapt).Support Coaxial PTZ control & call OSD menu,analog level test,TVI 5.0 audio test.RS485 control, compatible with more than 30 protocols such as for PELCO-D/P etc.
Powerful network tool & Cable TracerSupport PoE IEEE802.3af/at 48V, maximum power 30W, UTP cable test, POE test RJ45 TDR cable test.Built in 2.4GHz W-i-Fi analyzer,create hotspot.Support snapshot, video record & playback;Quickly search BNC cable,network cable and telephone cable from the mess cables and NCV Voltage Detector. With Cable tracer, can quickly find out the target cable(BNC cable, network cable and telephone cable) from the mess cables. Cable tracer support AC Voltage Detector.
