CCTV Tester 5 Inch 4 in 1 8MP AHD/TVI/CVI CCTV Camera Tester Analog Camera Tester with VGA/HDMI/PTZ Input Output DC12V 1A

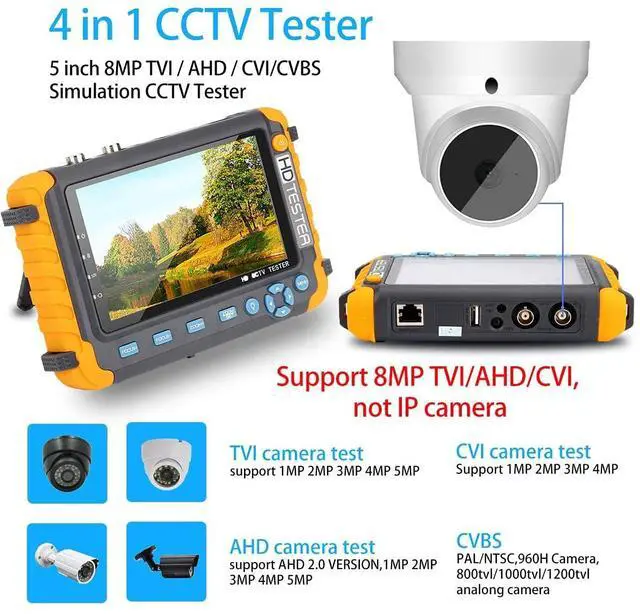

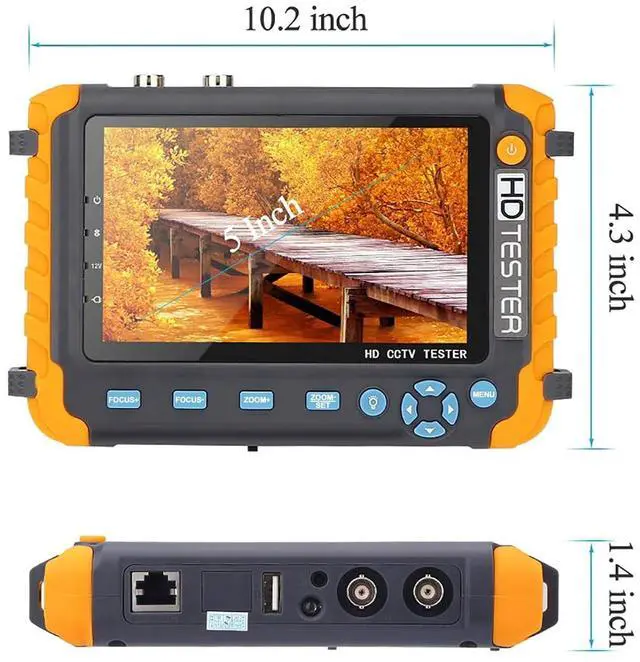

HD TVI video surveillance TesterCCTV Monitor Tester Upgraded 5.0-inch 800 x 480(Not touch screen) high-resolution analog camera tester with clear picture quality and supports PAL/NTSC standard video signals. Support CVBS/AHD/TVI/CVI camera test. Maximum support 4K=8MP AHD/TVI/CVI, Only supports analog cameras(NOT Support IP PoE Camera).
Camera TesterThe analog camera tester is specially developed for on-site installation and maintenance of analog cameras and high-definition coaxial cameras, providing many useful functions, such as video display, pan/tilt control, DC12V output power, audio testing, image generation Adapter, VGA HDMI1.0 input(It is Suitable for Testing DVR/NVR), RS485 data search, cable test, LED lights, etc.

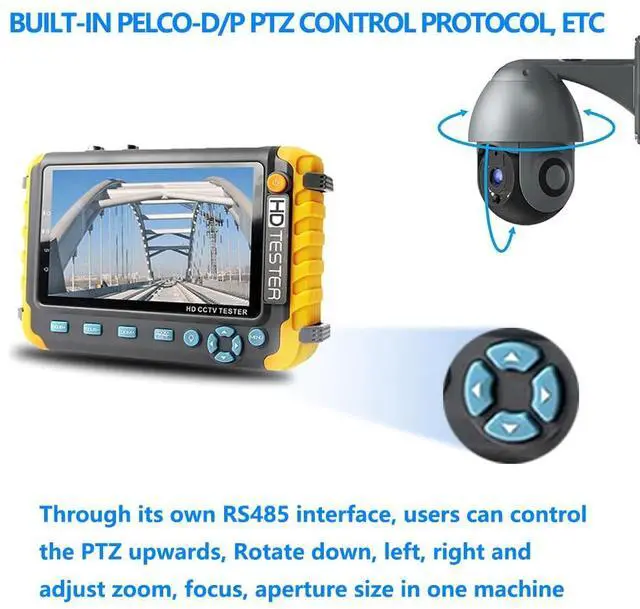

PTZ ControllerThe Coaxial Camera tester has built-in Pelco-D/P PTZ control protocol, etc. Through the built-in RS485 interface, the user can control the up and down, left and right rotation of the PTZ, and can adjust the zoom, focus, and aperture size in one machine.
Analog Camera TesterSecurity Camera Tester supports UTP cable testing, displaying the UTP cable connection status, cable type and wire sequence, and reading the test box number. The monitor of this multi-function CCTV tester also supports VGA input and HDMI input. You can use the monitor and DVR recorder to work together.
CCTV Camera TesterThe CCTV tester builts in 2600mA battery, DC12V 1A output power supply, use the DC12V power supply output by the tester to power the camera, and it can work continuously for 11 hours after being fully charged.(note:The device cannot be used at low voltage. When the device prompts low voltage or low battery, you need to stop using it and charge it ).
