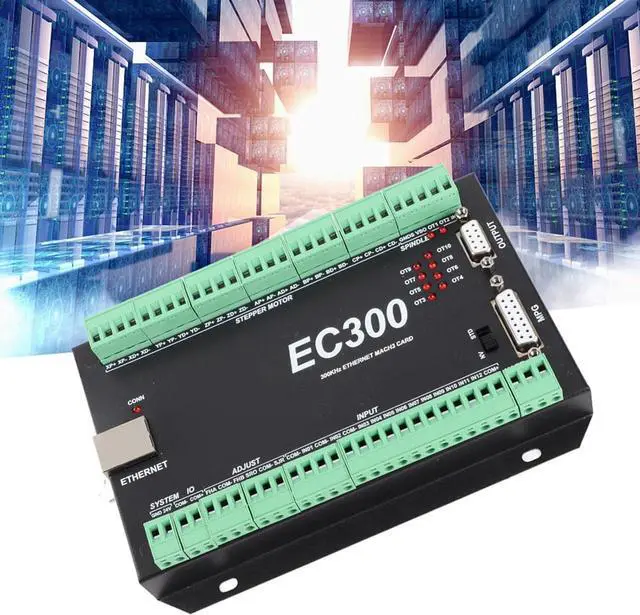

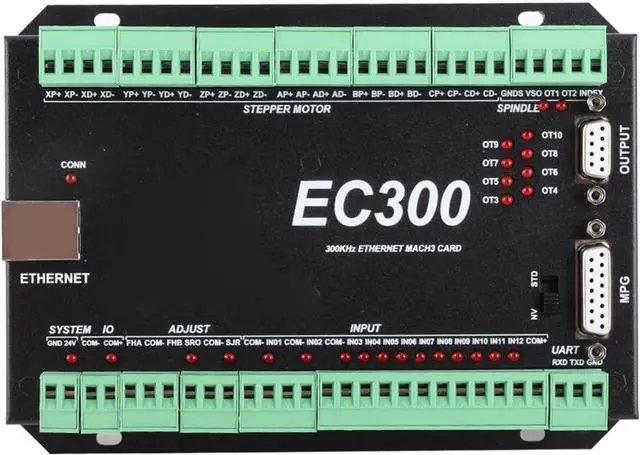

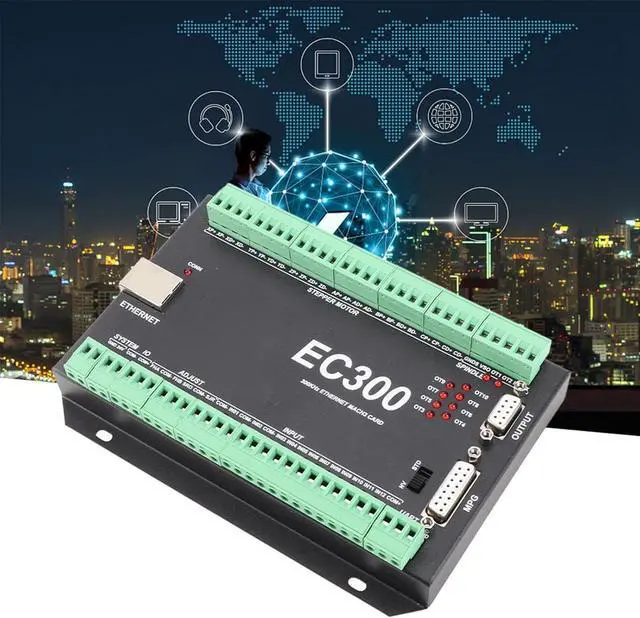

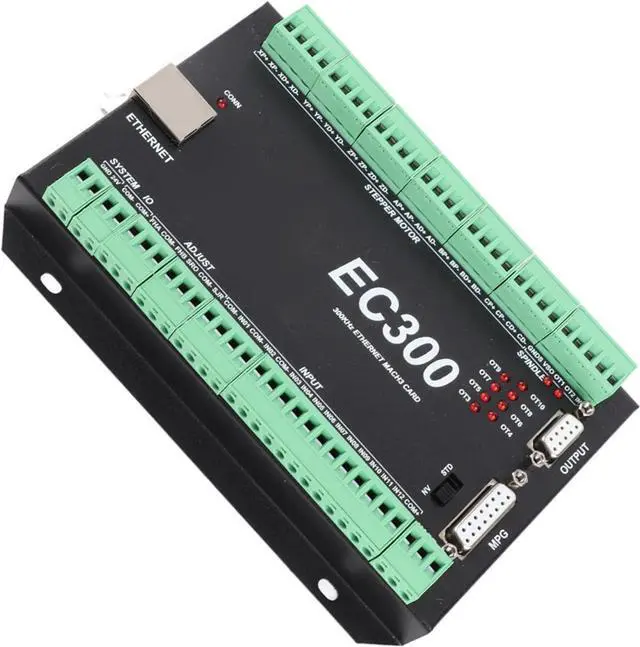

Oumefar 3-6 Axis 300kHz Ethernet Motion Controller EC300 CNC Control System Ethernet Motion Control Card Board for Software(3 Axis)
- Product Description : This EC300 control system is a high performace external motion controller for Mach 3 software , with Ethernet interface supporting standard MPG and Digital Dream MPG , which is an ideal choice for you
- Wonderful Components : Our Ethernet motion control card board adopts ARM motion control chip , and it also owns two relays to output , users can choose motion control 3 6 Axis(X , Y , Z , A , B , C) as optional choice
- Input Ports : Our DC 24V CNC control system possesses 12 opto isolated digital input ports and 10 opto isolated digital output ports , 1 analog output port of 0 10V adjustable speed for spindle (can change to PWM output port)
- Power Supply : The main power supply is 24VDC , the current should be higher than 1A . IO Power is 24VDC power supply input , the current should be higher than 1A(The controller already supply the power for IO port , no need the external power supply for IO port anymore)
- Network Connecting : This 300kHz Ethernet moti
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Description : This EC300 control system is a high performace external motion controller for Mach 3 software , with Ethernet interface supporting standard MPG and Digital Dream MPG , which is an ideal choice for you
Wonderful Components : Our Ethernet motion control card board adopts ARM motion control chip , and it also owns two relays to output , users can choose motion control 3 6 Axis(X , Y , Z , A , B , C) as optional choice
Input Ports : Our DC 24V CNC control system possesses 12 opto isolated digital input ports and 10 opto isolated digital output ports , 1 analog output port of 0 10V adjustable speed for spindle (can change to PWM output port)
Power Supply : The main power supply is 24VDC , the current should be higher than 1A . IO Power is 24VDC power supply input , the current should be higher than 1A(The controller already supply the power for IO port , no need the external power supply for IO port anymore)
Network Connecting : This 300kHz Ethernet motion controller can communicate with a connection to a control computer's network , and the network connection can be built with direct connection or via router/Swith devices
Wonderful Components : Our Ethernet motion control card board adopts ARM motion control chip , and it also owns two relays to output , users can choose motion control 3 6 Axis(X , Y , Z , A , B , C) as optional choice
Input Ports : Our DC 24V CNC control system possesses 12 opto isolated digital input ports and 10 opto isolated digital output ports , 1 analog output port of 0 10V adjustable speed for spindle (can change to PWM output port)
Power Supply : The main power supply is 24VDC , the current should be higher than 1A . IO Power is 24VDC power supply input , the current should be higher than 1A(The controller already supply the power for IO port , no need the external power supply for IO port anymore)
Network Connecting : This 300kHz Ethernet motion controller can communicate with a connection to a control computer's network , and the network connection can be built with direct connection or via router/Swith devices
