Infrared Motion Sensor for Backlit Panel LightsCompatible with Remote Control for Smart Lighting & Energy Savings (Bluetooth Passive Infrared, 24)

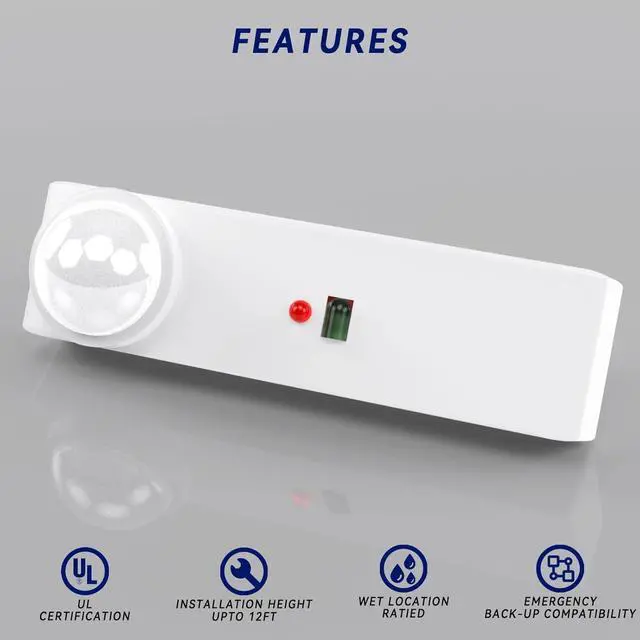

PIR Occupancy Sensor with Bi-Level Dimming ControlThis passive infrared (PIR) occupancy sensor is designed for LED panel light fixtures, providing bi-level dimming control (100% standby dim OFF). Ideal for offices, classrooms, corridors, and commercial indoor spaces that require automatic lighting control and energy efficiency.
Daylight Harvesting for Energy SavingsBuilt-in daylight harvesting function adjusts light output based on available natural light. When ambient light is sufficient, the fixture remains dimmed or off; when daylight drops below the threshold, the light automatically turns onreducing unnecessary power consumption and improving comfort.

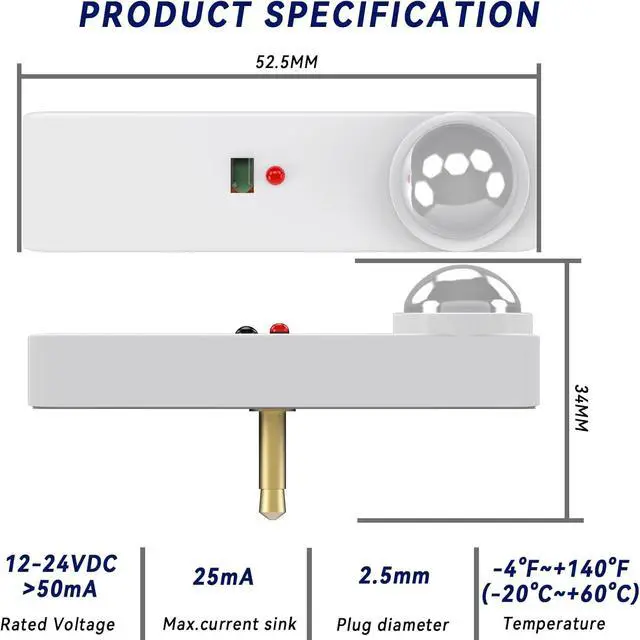

010V Dimming Output & Wide CompatibilityOperates on 1224V DC power supply and supports 010V dimming output (max. 25mA sinking current), compatible with most 010V LED drivers and dimming ballasts. Designed specifically for integrated fixture mounting inside LED panel lights.

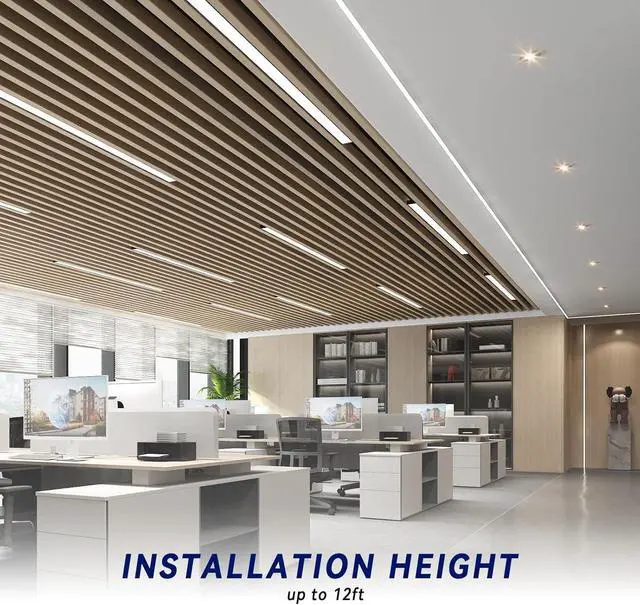

360° Detection with Adjustable SettingsProvides 360° detection coverage with a mounting height up to 12 ft (4 m). Key parameters including hold time, task light level, standby dim level, and standby time can be adjusted via optional RC-100 remote control, allowing flexible customization for different applications.

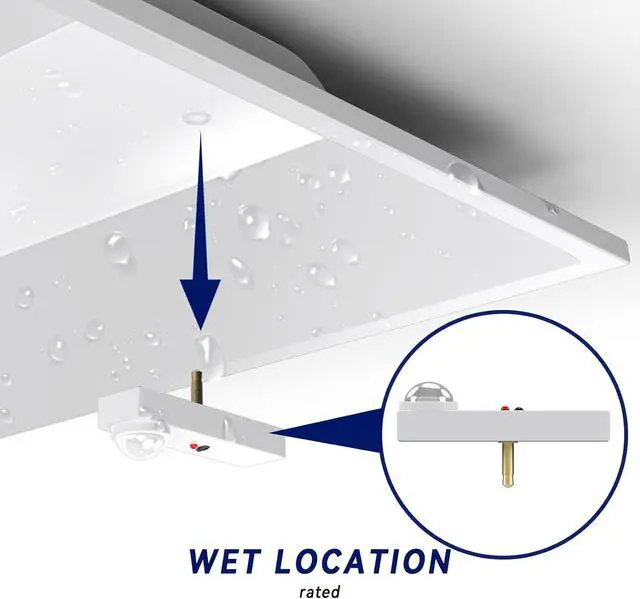

Reliable Indoor Performance & Easy IntegrationRated for indoor use with IP20 protection and stable operation from -20°C to 60°C. After initial power-on, the sensor completes a 40-second warm-up before normal operation. Factory default settings are optimized for most commercial lighting scenarios, making installation and setup simple.
