You can see, hear and speak
This video intercom door phone system includes 1-outdoor color camera, 1-color LCD 7 inch touch screen.
With an indoor 7-inch color monitor and connected outdoor doorbell with integrated HD camera, with an ultra-flat design, great sound quality, and 24 selectable doorbell tones. What's more, waterproofing and IR LED projection provides both durability and clear images no matter the weather or time of day/night.
What is more, the outdoor camera is made of aluminum alloy which is antioxidative and whose appearance is very beautiful. Besides, it's very easy to install with the user manual.
The color video door phone kit will surely satisfy your requirements with proven technique, stable and outstanding performance.
Please refer camera to monitor extension wire: (The extension wire is not included, but we will provide the 4 pin connector for you connect the extension wires.)
RVV4*0.30mm cable or CAT network cable for 30m(95feet).
RVV4*0.50mm cable or CAT network cable for 50m(150feet),
RVV4* 1.0 mm cable or CAT network cable for 100m(330feet)

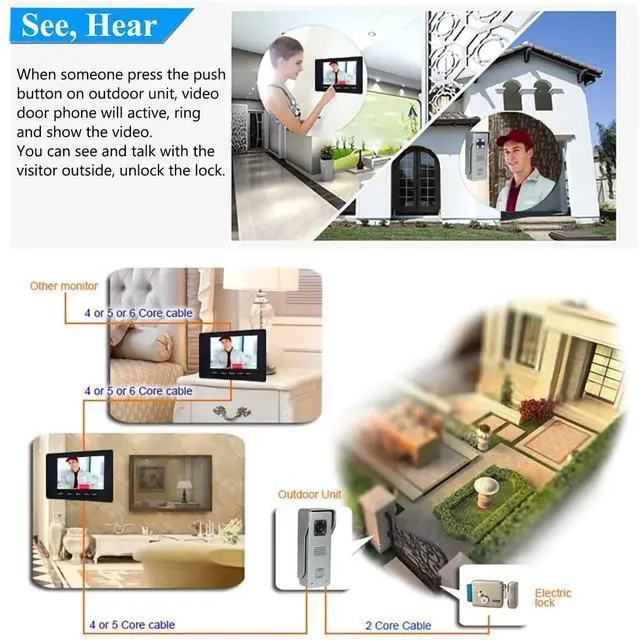

When someone press the CALL button on outdoor unit, it will active the indoor monitor, monitor will turn on, ring and show the video outside. So you can see who is outside.
Communicate with hands-free speaker.
Then you can press the INTERCOM button on monitor to talk with the people outside, UNLOCK the lock and press the INTERCOM button again to end the conversion.
Video doorbell camera uses all-metal angle 92 degree, so monitor look more wider and clearer.
7-inch color monitor, hand-free, simple style and fashion. 25 Ringtones to choose and Volume adjustment.
IR night vision, Waterproof

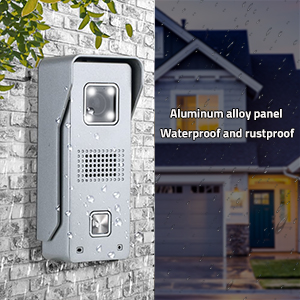

Aluminum alloy panel for durable protection from vandalism, with a rain proof cover to prevent the water and protect the outdoor camera from damage..
4 IR LED and IR sensor, it will light on automatically.
One key to monitor, communication, unlock
You can know who is outside at a glance, Speak directly to anyone who approaches , two-way audio with hands-free speaker, check the situation out of the door, unlocking electronic control locks.
Never worry about the safety.

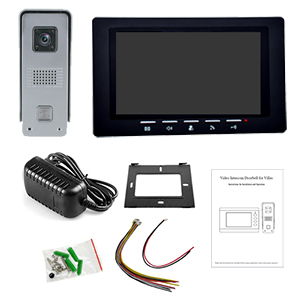

Package
1 x Indoor Unit
1 x Outdoor Unit
1 x Adapter
1 x Mounting plate
1 x packing of accessories
1 x English manual

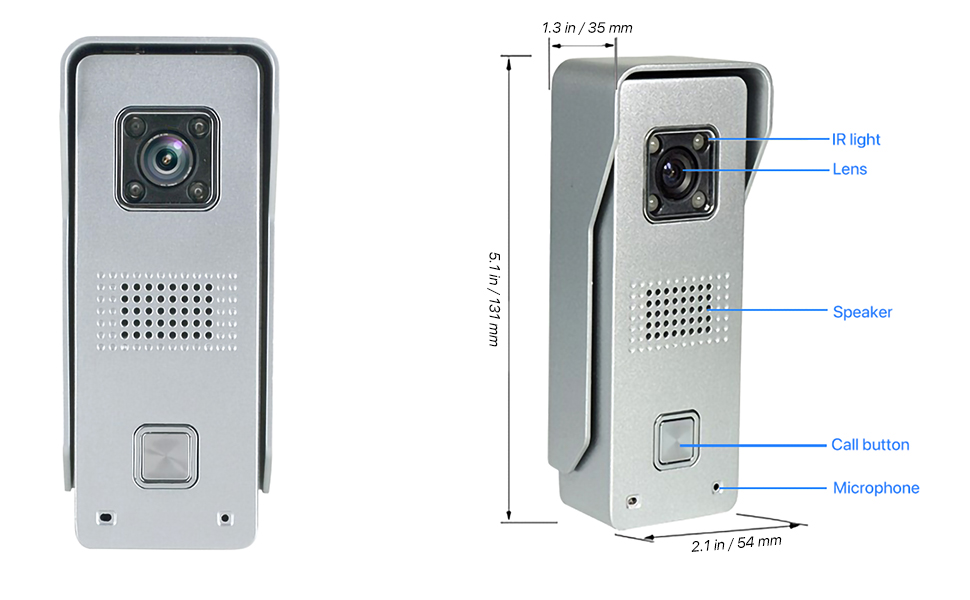

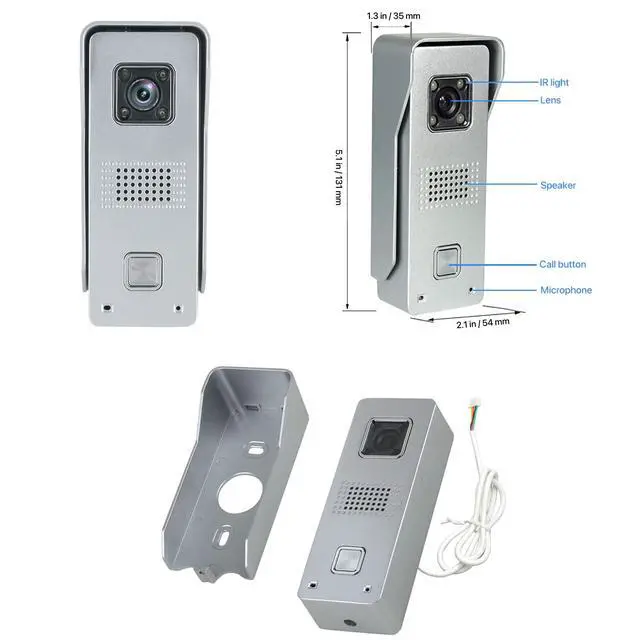

Door Camera:
The operating temperature range of this outdoor camera is -4?(-20?) to 122?(50?), it can run perfectly in extreme temperatures.
- Horizontal resolution:700 TV-Lines
- Image sensor:Colorful CMOS sensor
- Sensor Size:1/3,Visual angle:92
- IR Led: 4pcs, auto on/off
- Panel Material: Aluminium alloy
- Installation: Surface mounting
- Simple 4- wire connection
- Size:145 x 55 x 40 mm / 4.9 x 1.9 x 1.5 inch

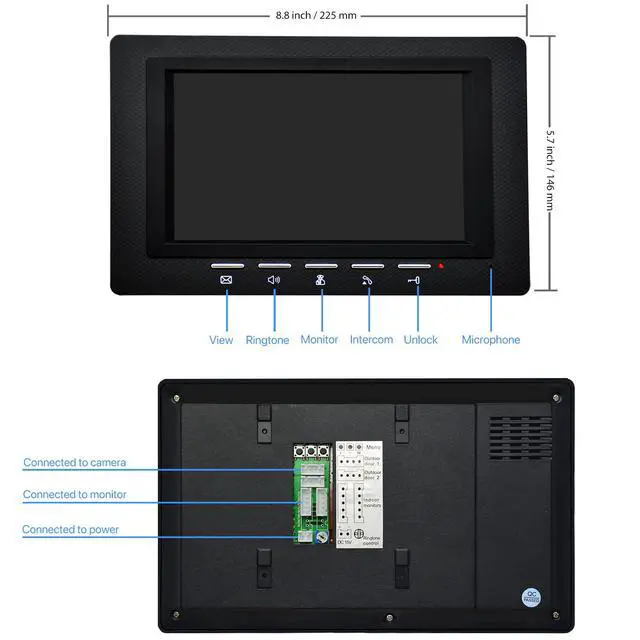

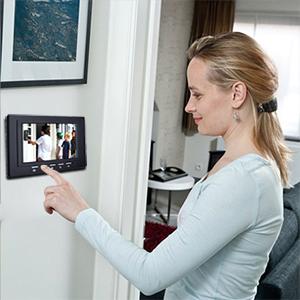

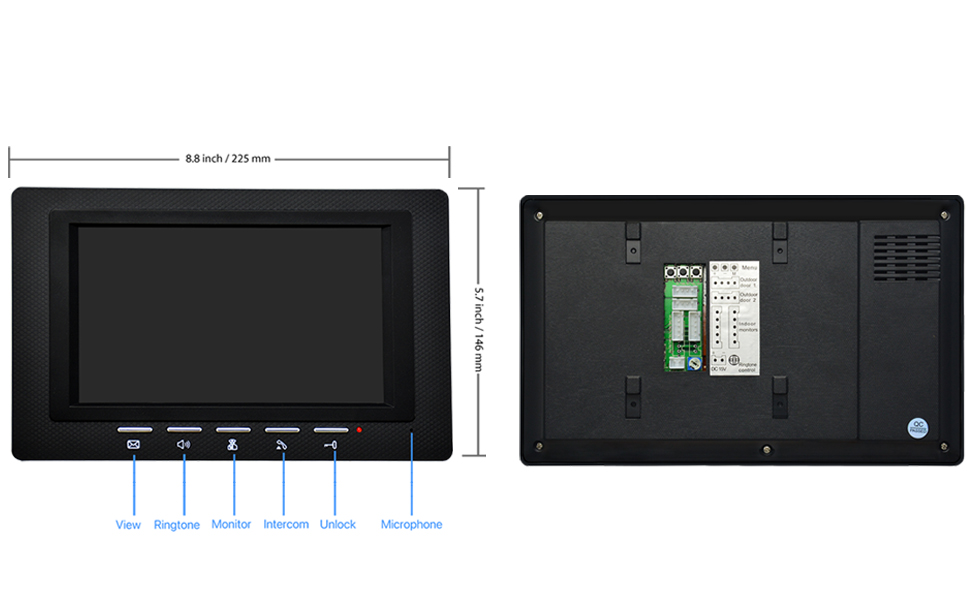

Indoor Monitor:
Stay away from robbers and other bad guys without having to walk to the front door or outside the door when strangers ring the doorbell.
- Screen: 7 inch TFT-LCD screen
- Resolution: 800 x 480
- Ring: 25-chord melody rings
- Panel Material: ABS plastic
- Installation: Surface mounting
- input voltage:AC 100-240V 50/60Hz
- Working voltage:DC 15V, 1.5A
- Size:225 x 137 x 20 mm / 8.8 x 5.4 x 0.8 inch
Wiring diagram
Video Intercom Test
We are hope the following points can help you solve. First test the wired video doorbell with the white cable inside our box.
- Test the doorbell: Can 2 people to test or (camera and monitor)maintain a distance of more than 10ft, too close will produce harsh noise, but this is normal.
- If the screen shows black /blue/, please check if the power/ cable/ is connected,there is a protective film on the display.so look a little old.
- If the intercom has no sound or is too small, please adjust the last turbine on the right side of the screen.
- If the door camera call does not ring, please reconnect the power.
- Max distance from outdoor unit to indoor unit for 330ft.
- You can use 4-core cable or 8-core network cable to wiring.
NOTE:

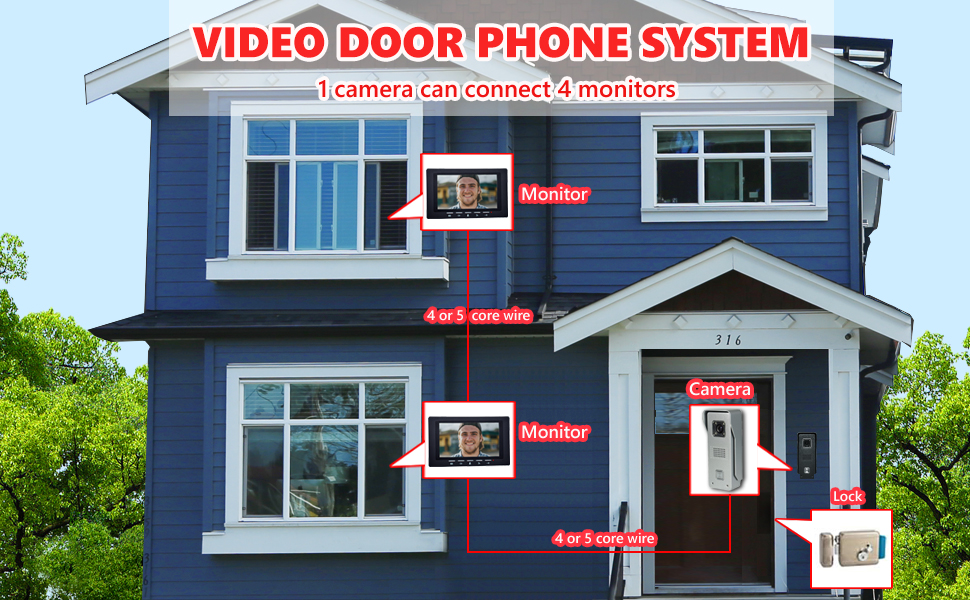

This wired video doorbell kits Can't connect phone, computer, or wireless. But 1 camera can connect 4 monitor (wired cable).

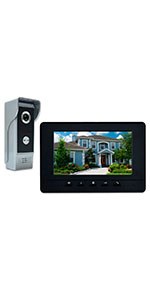

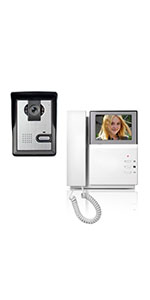

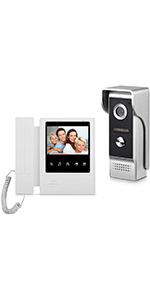

 4.3 inch video doorbell system |  4.3 inch video doorbell system |  7 inch video doorbell system |  7 inch video doorbell system |  7 inch video doorbell system |  7 inch video doorbell system | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Monitor Size | 4.3 inches | 4.3 inches | 7 inches | 7 inches | 7 inches | 7 inches |
| Night Vison | ? | ? | ? | ? | ? | ? |
| Camera Rainproof | ? | ? | ? | ? | ? | ? |
| Monitor Unlock | ? | ? | ? | ? | ? | ? |
| TFT LCD SCreen | ? | ? | ? | ? | ? | ? |
| Connection Method | Wired | Wired | Wired | Wired | Wired | Wired |
