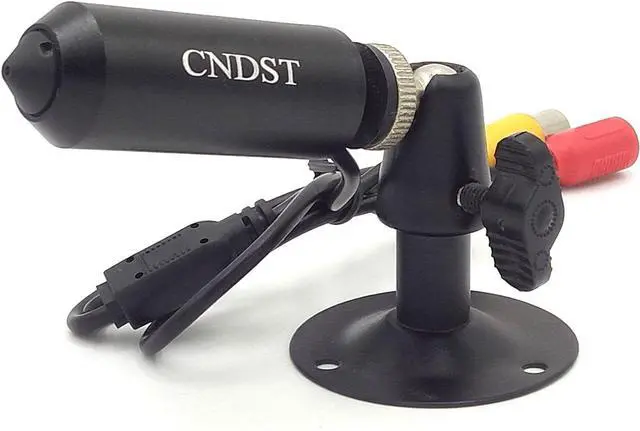

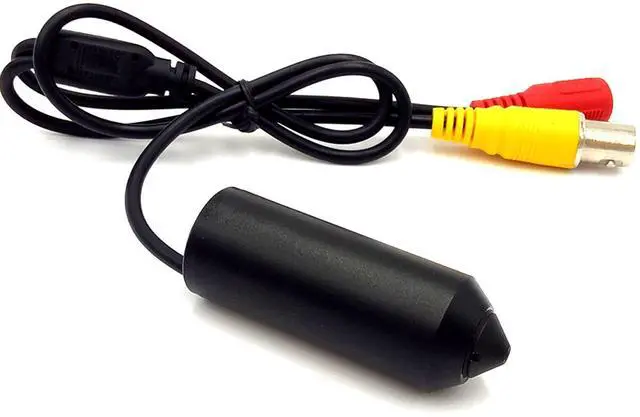

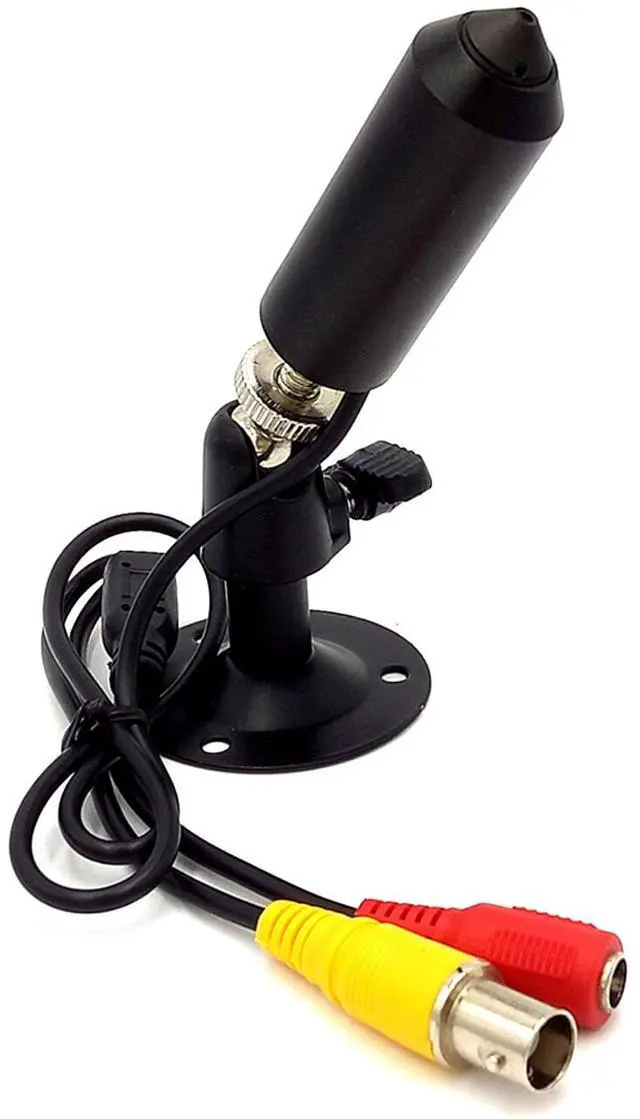

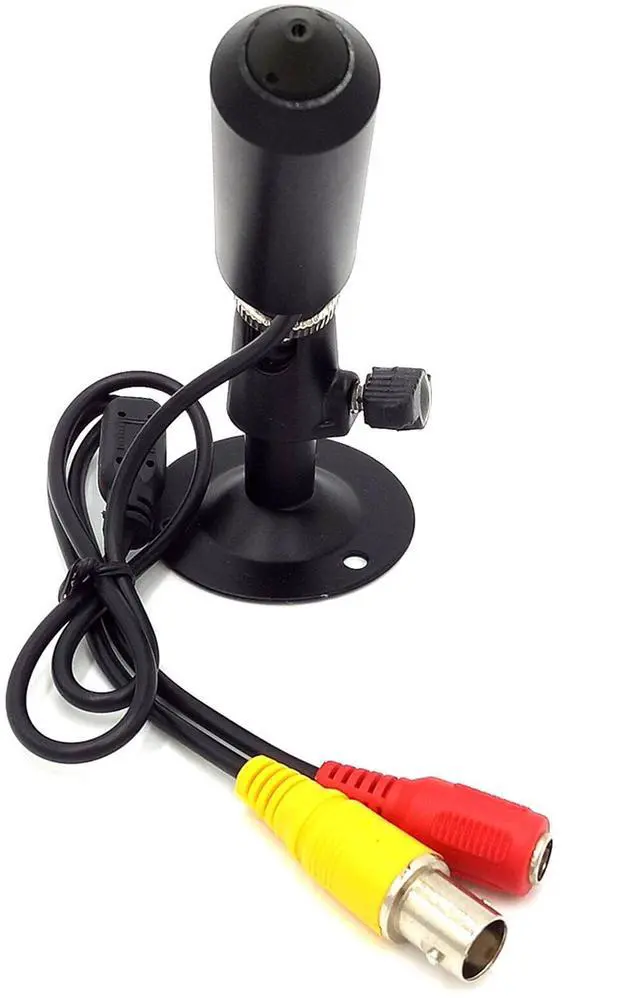

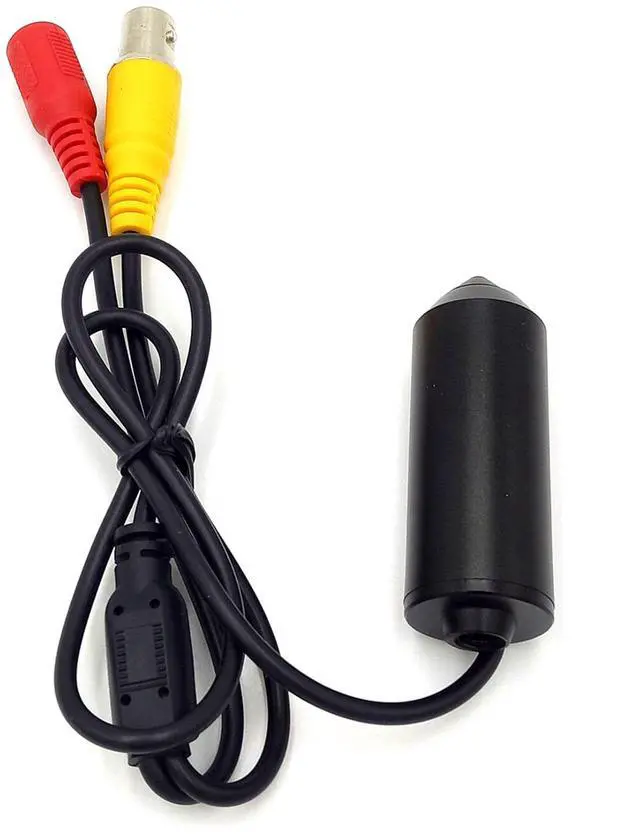

CCTV Hd 1080P 2MP Mini Spy Pinhole Security Camera 3.6mm 90degree 4-in-1 TVI/CVI/AHD/CVBS Mini Surveillance Camera,for 1080P 4-in-1 TVI/AHD/CVI/CVBS DVR
- Camera can not use with H.264 DVR, Camera was set up to AHD already, if you need change AHD to TVI or CVI or CVBS, you can change on your DVR. But your DVR should be 1080P 4-in-1 AHD/CVI/TVI/CVBS.
- Function: with UTC function, and built-in OSD menu, Material: metal housing and bracket, f3.6mm board lens, 90 degree.
- Working Condition: Camera can work during daytime and night with light, pls use with DC 12V 1A power addapter, the device is not capable of audio recording.
- Lens: f3.6mm board lens, and the lens can be adusted according to the object. Advantage: AHD cameras resolution and picture quality is much better than analog cameras.
- Resolution: 2000TVL, 2MP, Starlight, Flexibility: Camera diameter is little as a coin, it is easy for installation and use.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
***Camera was set up to AHD already, if you need change AHD to TVI or CVI or CVBS, you can change on your DVR. But your DVR should be 1080P 4-in-1 AHD/CVI/TVI/CVBS, otherwise Camera will not work***
Main Features
Min. Illumination :StarLight 0.0001 Lux (F1.2)
Signal System: NTSC
Lens: Standard 3.6mm
Camera Type: Indoor/Outdoor
Power Supply: DC12V/75Ma
Specification Of the Camera:
Model: DST-AHD230P1
Horizontal Resolution 2.0 Mega Pixel 1080P NTSC : 1920*1080@30fps
Min. Illumination StarLight 0.0001 Lux (F1.2)
Signal System NTSC
Electronic Shutter NTSC:1/60~1/100000s
Max Transmission Distance Common 75-3 lines can be up to 500m
S/N Ratio More than 46dB
Gamma 0.45/1.0
Exposure Auto
OSD N/A
White Balance Auto White Balance
Backlight OFF/ON/BLC/ HLC
Pic Adjust Mirror/Brightness/Contrast /Sharpness/Hue/Gain
ATR ON/OFF
Motion Det OFF/ON(Detect sense/ Area Sel)
Privacy Masking OFF/ON (4 Zone)
Day/Nigh True Day and Night (Auto/ Day / Night / Ext. D&N)
2D-NR OFF/ON (0-15/16 level)
Camera ID OFF/ON
Sync.System Internal
Video Output 1 Vp-p / 75 Ohms
Working Conditions -20~60Degree/0-93% Humidity
Package Dimensions(L x W x H): 4.05 x 3.15 x 2.24 inch
Package Weight: 130g

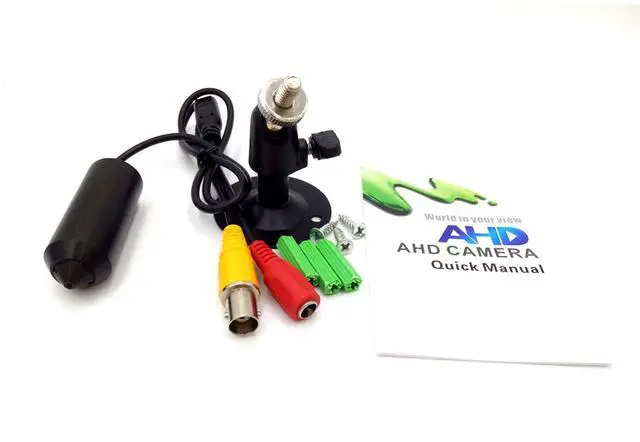

Package Include:
1 x Camera
1 x Installation accessories
1 x Manual
