Viewtech Universal Ultra Short Throw Projector Wall Mount Fully Adjustable: 16"-32"
- ? Fully extracted, the mount is 16" from the wall, can bring your projector as close as to 16" from the wall. Fully extended, the mount is 32" from the wall, can bring your projector as far as to 32" from the wall. Package size: 19.5" x 8" x 10.4"

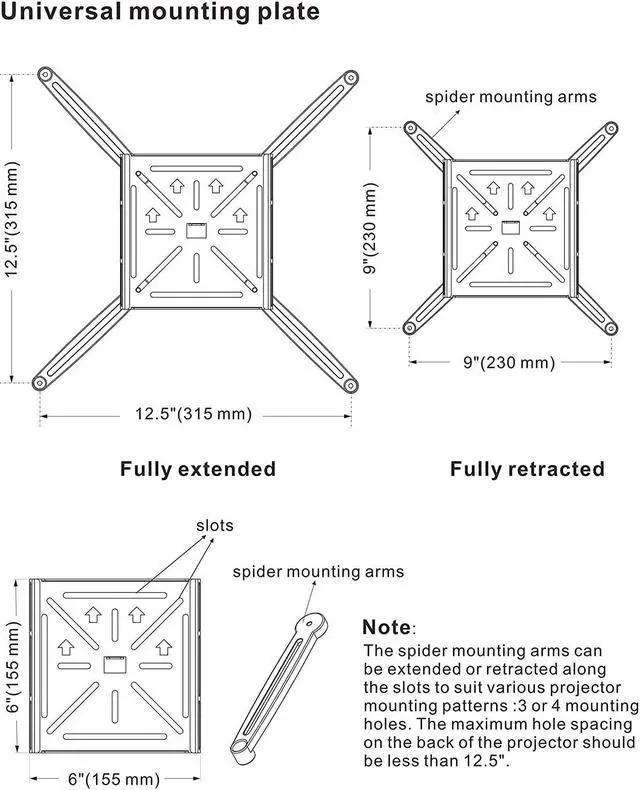

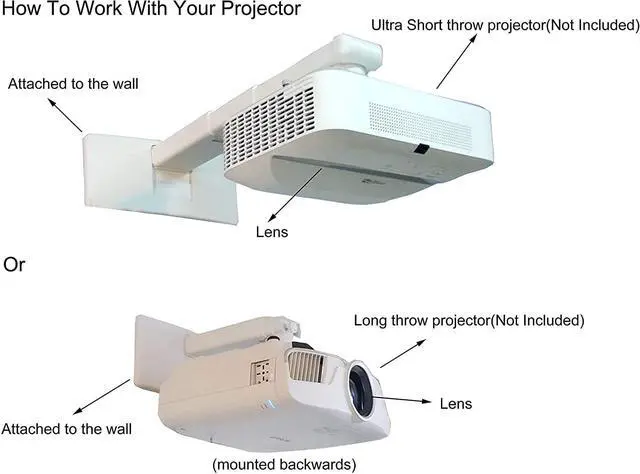

- ? Universal Projector mounting plate with 4 adjustable spider mounting arms ,which can be extended or retracted to suit various projector mounting patterns: 3 or 4 mounting holes, fits most ultra short throw projectors. Maximum distance between mounting holes on back of projector must be less than 12.5”. Highly recommended for projectors with throw ratio: 0.18 to 0.35.
- ? The mount offers adjustments in 3 directions: 3" vertical image adjustment & 1.7" lateral image adjustment & 16" extension length (16"-32") in image size adjustment and 3 fine tune adjustment knobs: roll: ±5 degrees, pitch: ±5 degrees, yaw: ±5 degrees, making the aligning of the image into a rectangle extremely easy, quick and accurate
- ? Hollow compact telescopic ar
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

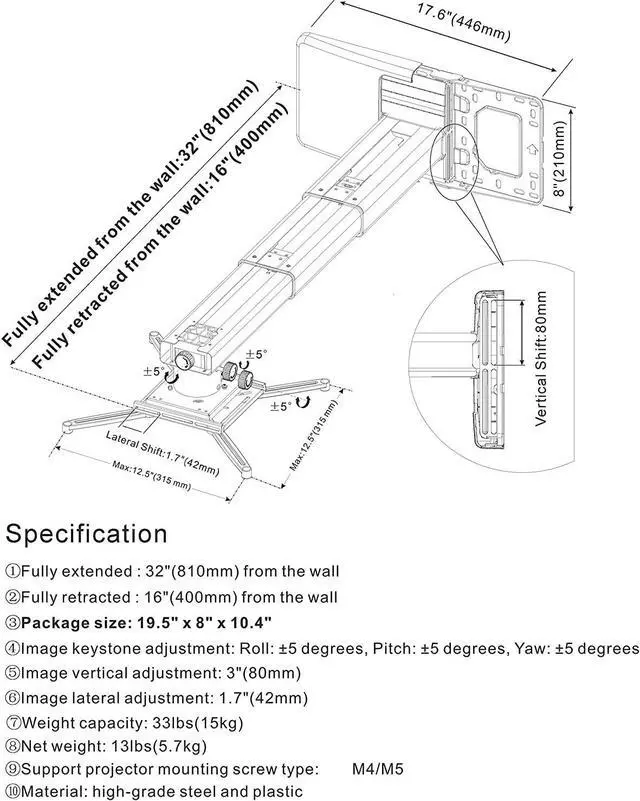

SpecificationFully extended from the wall
32"(810mm)Fully retracted from the wall

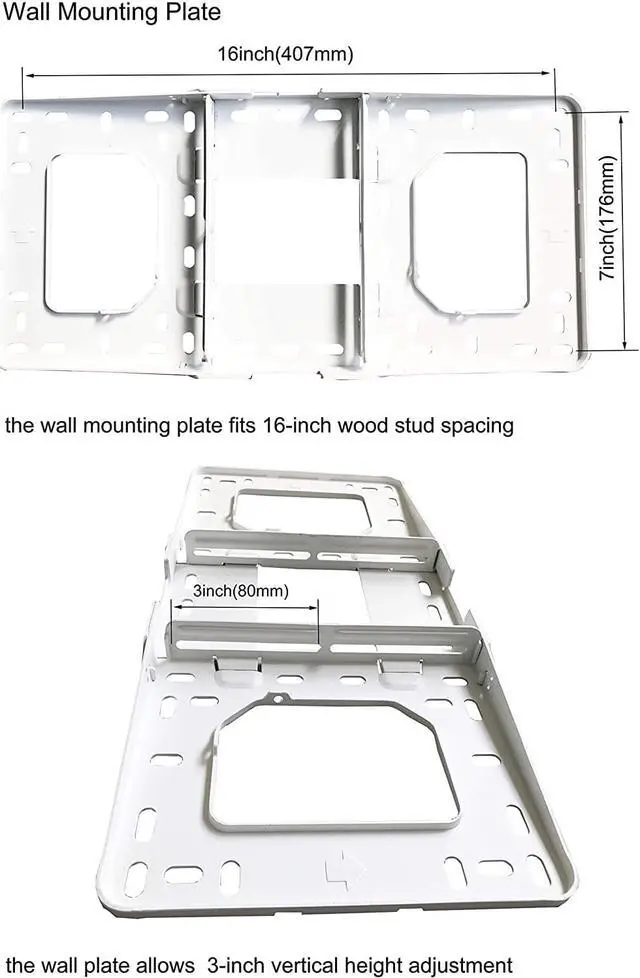

16"(400mm)The wall mounting plate fits 8"/11"/16" wood stud spacingPackage size
19.5" x 8" x 10.4"Image keystone adjustment
Roll
±5 degrees, Pitch
±5 degrees, Yaw
±5 degreesImage vertical adjustment
3"(80mm)Image lateral adjustment
1.7"(42mm)Weight capacity
33lbs(15kg)Net weight

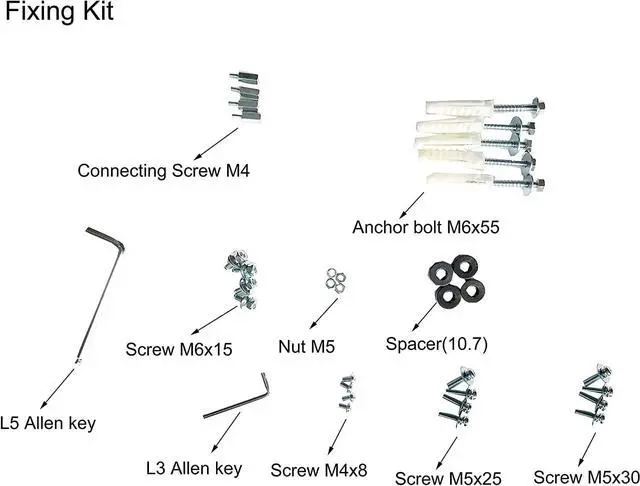

13lbs(5.7kg)Projector mounting screw type
M4/M5Material
high-grade steel and plasticHave a question?Find answers in product info, Q&As, reviews
32"(810mm)Fully retracted from the wall
16"(400mm)The wall mounting plate fits 8"/11"/16" wood stud spacingPackage size
19.5" x 8" x 10.4"Image keystone adjustment
Roll
±5 degrees, Pitch
±5 degrees, Yaw
±5 degreesImage vertical adjustment
3"(80mm)Image lateral adjustment
1.7"(42mm)Weight capacity
33lbs(15kg)Net weight
13lbs(5.7kg)Projector mounting screw type
M4/M5Material
high-grade steel and plasticHave a question?Find answers in product info, Q&As, reviews
