- NF-488 PoE Tester is a practical tool for installation and maintenance of technical personnel in security monitoring, conmunication wires,
integrated wiring and other weak current systems. Main Functions:
- Test the information of the standard/non-standard PoE device, such as voltage, polarity, mid-span or end-span.
- Test of real-time power consumed by PD devices in PoE power supply systems.

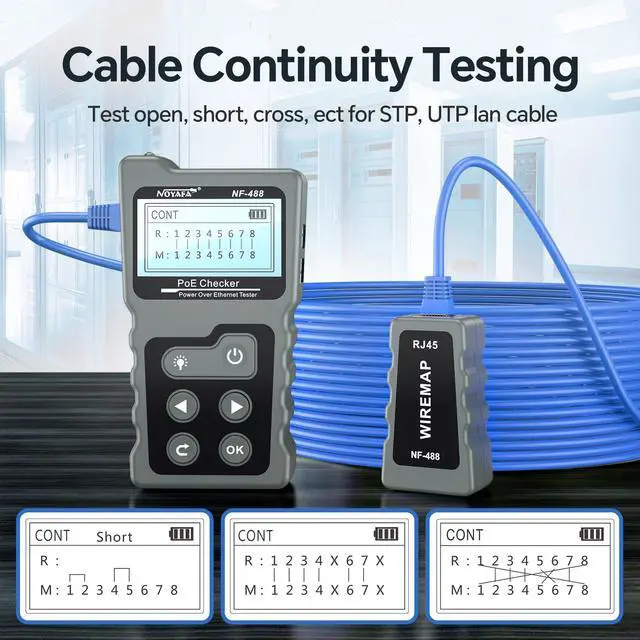

- Test the open, short, cross status in the network cable.
- Test the power consumed by DC appliances.
- The loop test function of the switch
Specifications
- Item Name: Network Cable Tester
- Material: ABS
- Continuity Function:
- Cable Type: STP/UTP

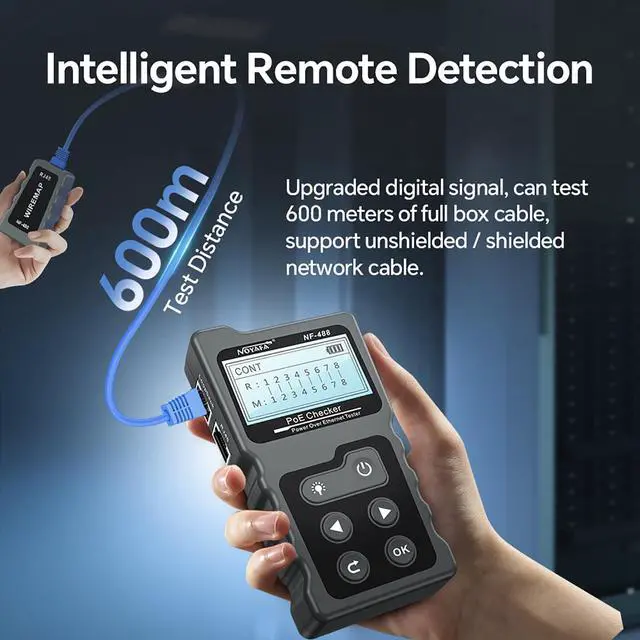

- Maximum Testing Range: 600m
- Wire Mapping: Emitter + Remote, Emitter + Switch/Routor
Notes
- Due to the light and screen setting difference, the item's color may be slightly different from the pictures.
- Please allow slight dimension difference due to different manual measurement.

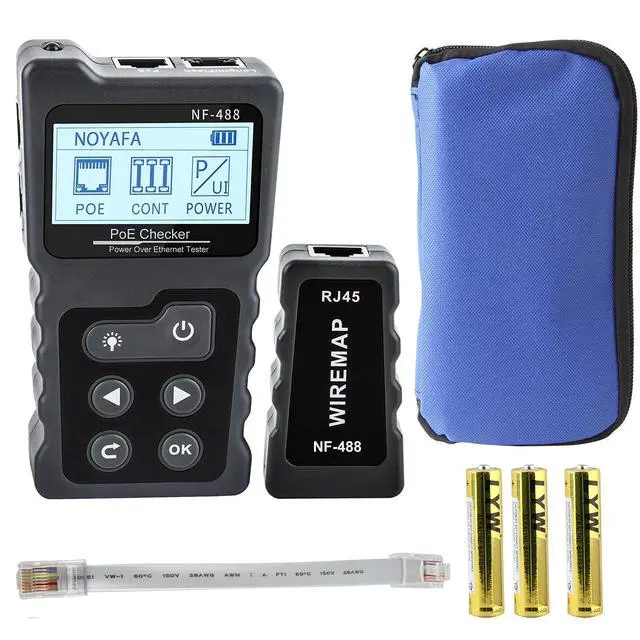

Package Includes:
- 1 x Emitter
- 1 x Remote Control
- 1 x Crocodile Clip Test Line
- 1 x Network Cable
- 1 x Carry bag
- 1 x User Manual
- 1 x Gift Box

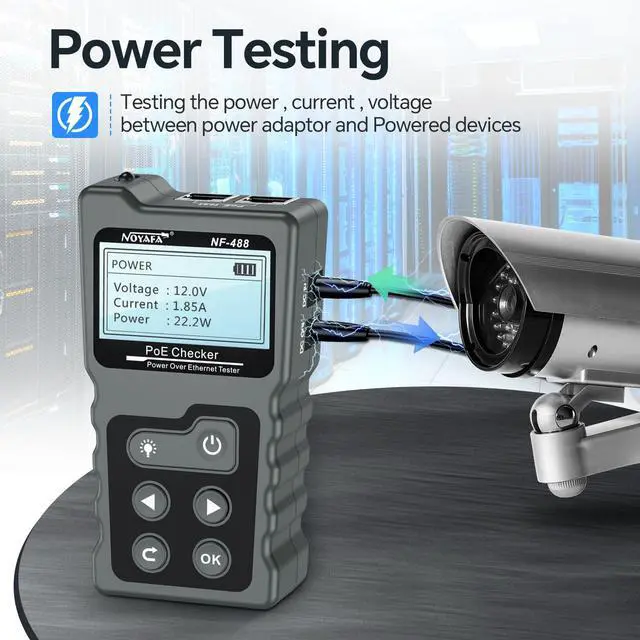

POWER TESTING
Testing the power, current, voltage between power adaptor and Powered devices

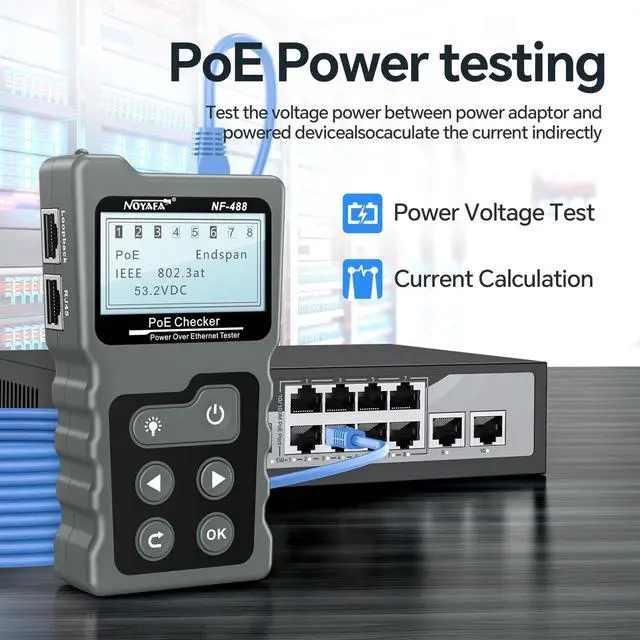

POE POWER TESTINGH
Test the voltage power between power adaptor and powered device
POE TESTING VIA SWITCH
Identify the type of POE, it is af or at standard. Power supply modes (endspan/misdpan, 4 pairs)
LOOPBACK TESTING
Testing the LOOP circuit connected TO switch is normal or not 1 .If the Led indicator is lit on,it means the loop circuit is good . 2. If not,then there may exsit some problems in the circuit.
POE Function:
Remote Specification:
- NF-488 PoE Tester is a practical tool for installation and maintenance of technical personnel in security monitoring, conmunication wires,
integrated wiring and other weak current systems. Main Functions:
- Test the information of the standard/non-standard PoE device, such as voltage, polarity, mid-span or end-span.
- Test of real-time power consumed by PD devices in PoE power supply systems.
- Test the open, short, cross status in the network cable.
- Test the power consumed by DC appliances.
- The loop test function of the switch
Specifications
- Item Name: Network Cable Tester
- Material: ABS
- Continuity Function:
- Cable Type: STP/UTP
- Maximum Testing Range: 600m
- Wire Mapping: Emitter + Remote, Emitter + Switch/Routor
Notes
- Due to the light and screen setting difference, the item's color may be slightly different from the pictures.
- Please allow slight dimension difference due to different manual measurement.
Package Includes:
- 1 x Emitter
- 1 x Remote Control
- 1 x Crocodile Clip Test Line
- 1 x Network Cable
- 1 x Carry bag
- 1 x User Manual
- 1 x Gift Box
POWER TESTING
Testing the power, current, voltage between power adaptor and Powered devices
POE POWER TESTINGH
Test the voltage power between power adaptor and powered device
POE TESTING VIA SWITCH
Identify the type of POE, it is af or at standard. Power supply modes (endspan/misdpan, 4 pairs)
LOOPBACK TESTING
Testing the LOOP circuit connected TO switch is normal or not 1 .If the Led indicator is lit on,it means the loop circuit is good . 2. If not,then there may exsit some problems in the circuit.
POE Function:
| Test Range | DC 5-60V PoE Switch |
| Standard Identify | 802.3af/at (Standard/Non-standard) |
| Test Range Power | 0-18W |
| Voltage Test Range | DC 0-60V |
| Current Test Range | 0-3A |
| Power Test Range | 0-180W |
| Display | LCD Screen, with Backlight |
| Input Voltage Protection | DC 48V, 5mA |
| Maximum Working Current | =80mA |
| Loopback | Compatible with 10M/100M Switch |
| Power Supply | 3 x 1.5V AAA Battery |
Remote Specification:
| Ports | RJ45 |
| Function | Wire Mapping for Network Cable |
| Input Voltage Protection | DC 48V, 5mA |
| Features | Portable, Fine Workmanship, LCD Display |
| Screen Size | 128mm x 64mm/5.04" x 2.52" (Approx.) |
| Total Size | 14cm x 4cm x 2cm/5.51" x 1.57" x 0.79" (Approx.) |
