Analyze your USB cables!
"Which cable is available with USBPD?"
"Could this TypeC cable send 500MB/s or no?"
I guess you had these problems before.
Also, in these days so many bad USB cable appear on the market.
sometime these cable will destroy our devices.
So we make this device.
Easy to Use, Easy to Understand.
UCC2 gives you below information.
- Cable resist value

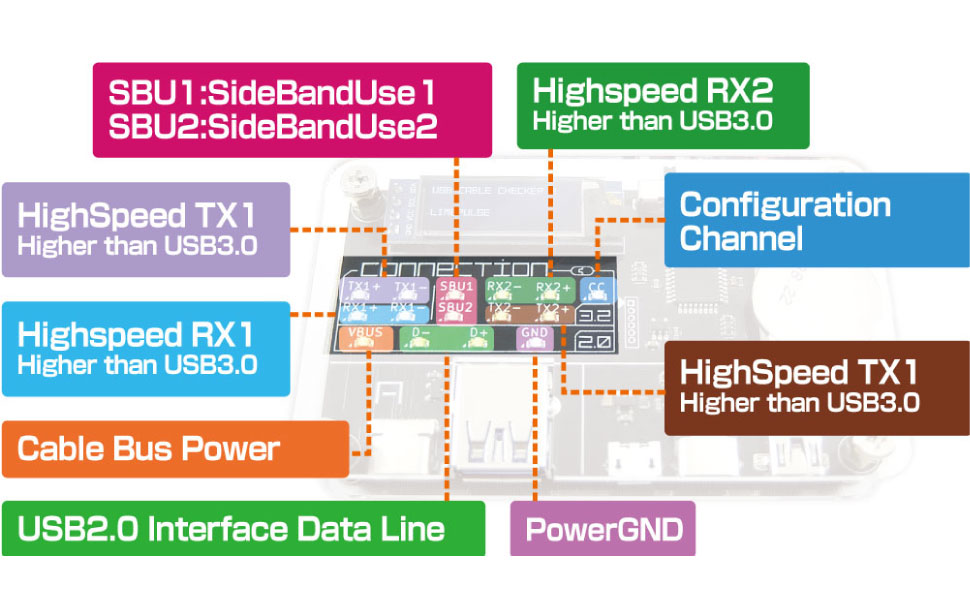

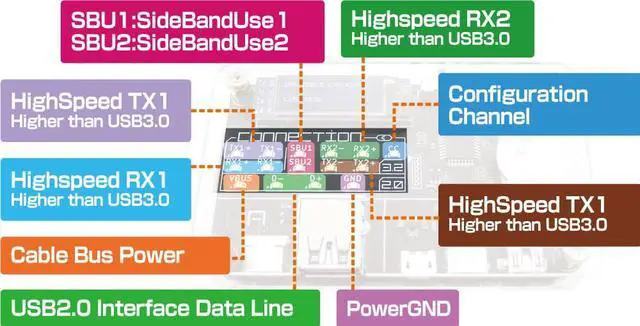

- Cable wire check with x15 LED (3.1 gen2 have 10+1 wire and 2.0 have 4 wire)
Analyze and Check Wires.
- Analyze what kind of Resist inside of plug
- Plug Shell ground check
Supported USB interface
USB Type A(~3.1 Gen2)
USB Type C(~3.2)
USB Type mini B(~2.0)
USB Type micro B(~2.0)
USB Type C(~3.2)

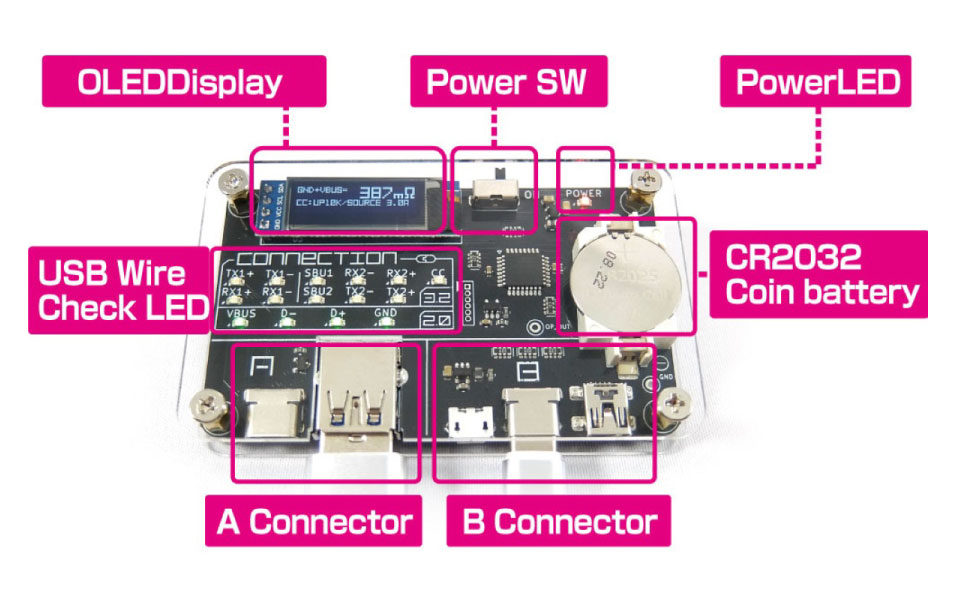

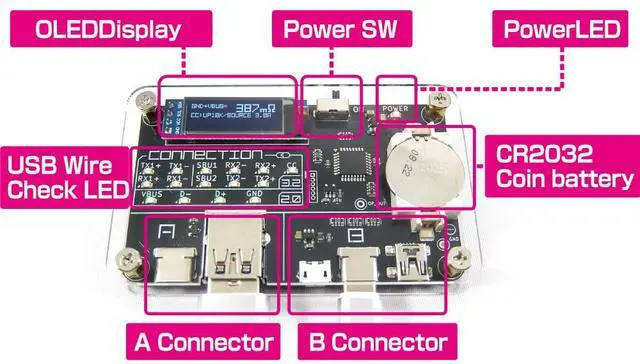

USB wire Status LED x15
OLED Display x1
PowerSwitch x1
PowerLED x1
[Power]
CR2032 button battery x1 (battery sold separately)
[Size]
H13.8xW86.85xD53.7mm
[Weight]
45g
Shipment with fully assembled one, no need any solder or built.
Made in Japan
