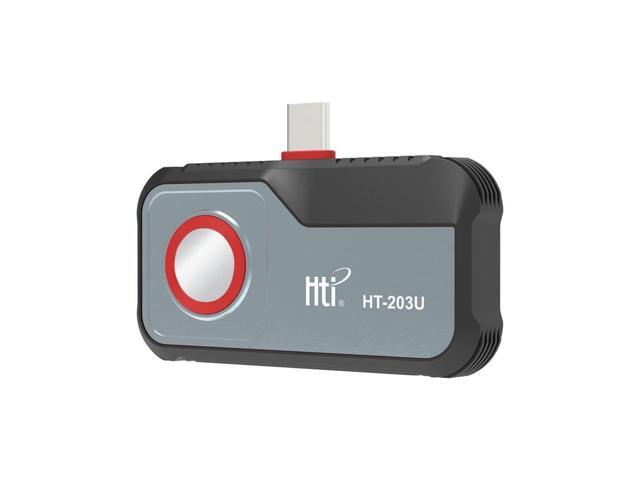

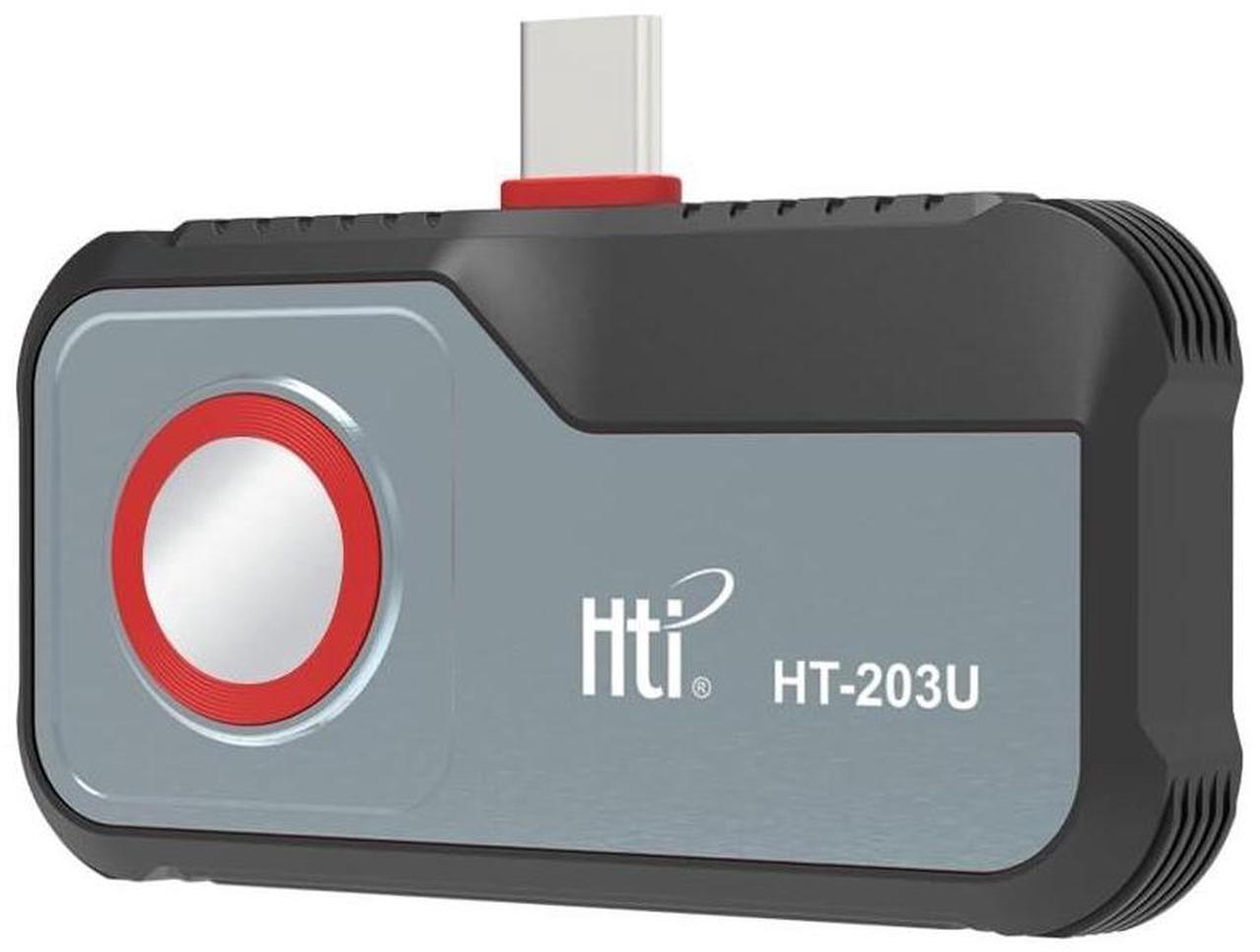

Hti HT-203U Mobile Thermal Imager Infrared Optics Heat IR HD Thermal Imaging

Model Number HT-203U
Measuring Range -20~550(-4~1022)
Accuracy ±2 or ±2%
Thermal image resolution 256x192
Wavelength coverage 8~14m
Pixel Size 12m
Focal Length 3.2 mm
Frame 25Hz
Temperature measurement mode Center point/hot and cold spot tracking
Temperature measurement method Temperature measurement of points, lines, and surfaces

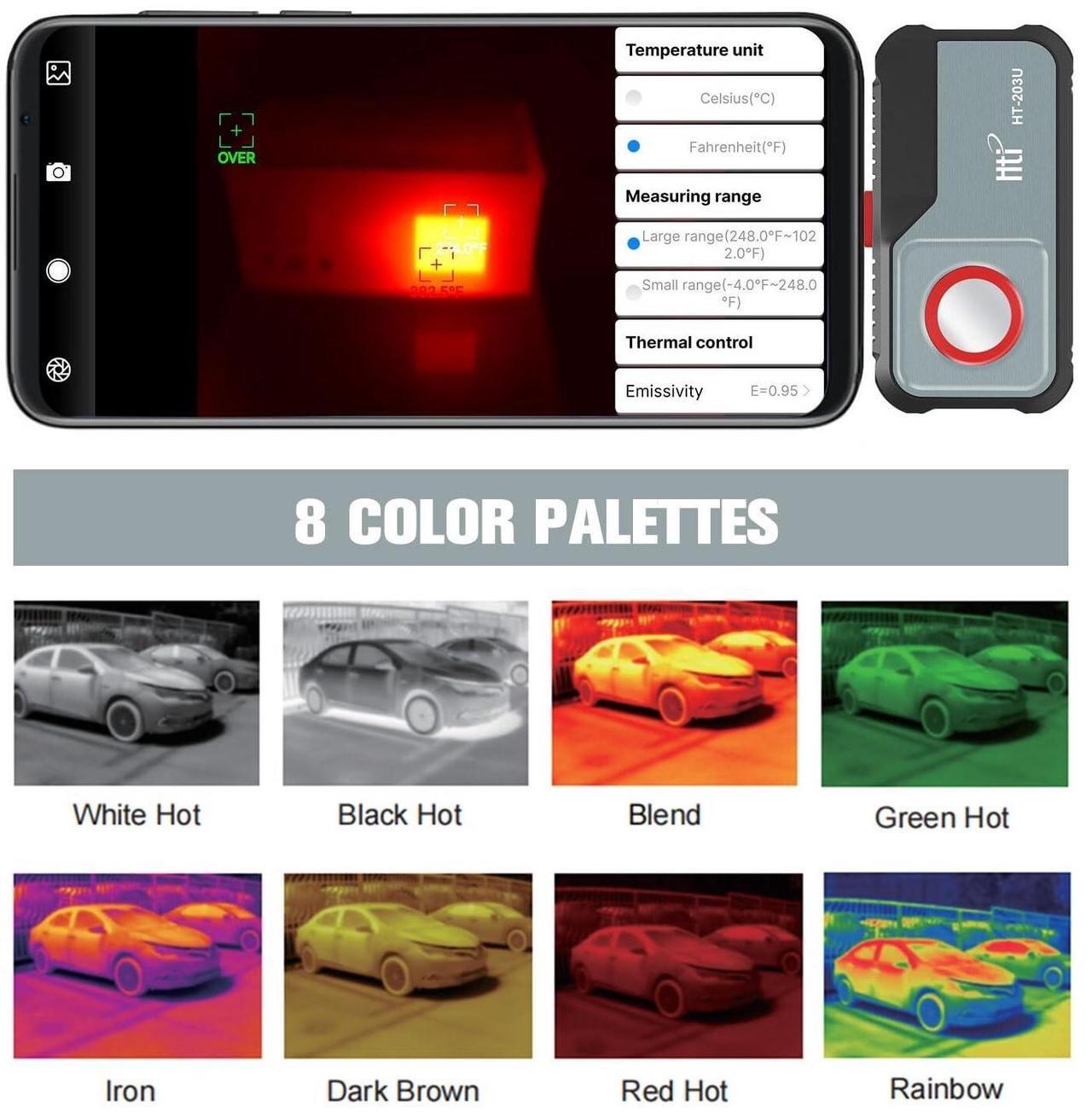

palette Rainbow/Iron Red/Cool/White Heat/Black Heat
NETD lens Focal Length 40mk@25, @F/ 1.2
Field angle 50.0 °× 37.2 °
Detector Type Amorphous silicon uncooled infrared focal plane
Emissivity Setting 0.01 ~ 1.00 Adjustable
Focus Mode No focusing
Thermal Sensitivity 0.1
Working Temperature -20~50
Storage Temperature -30~70
Weight 28g
Size 46*70*14mm

Specifications

:
Measuring Range: -20°C~550°C (-4°F~1022°F)
Accuracy: ±2 or ±2%
Thermal Image Resolution: 256x192 Pixels
Wavelength Coverage: 8~14m
Pixel Size: 12m
Temperature Measurement Mode: Center point/hot and cold spot tracking

Features:
**Advanced Thermal Imaging Technology**
The HTI HT-203U Infrared Thermal Imager is a cutting-edge tool designed for professionals and hobbyists alike. With a thermal image resolution of 256x192 pixels and a wavelength coverage of 8~14m, this device captures detailed thermal images with precision. The 12m pixel size ensures accurate temperature readings, making it ideal for a wide range of applications. Whether you're diagnosing electrical issues, inspecting PCBs, or performing building inspections, the HTI HT-203U delivers reliable and clear thermal imaging.

**Versatile and User-Friendly Design**

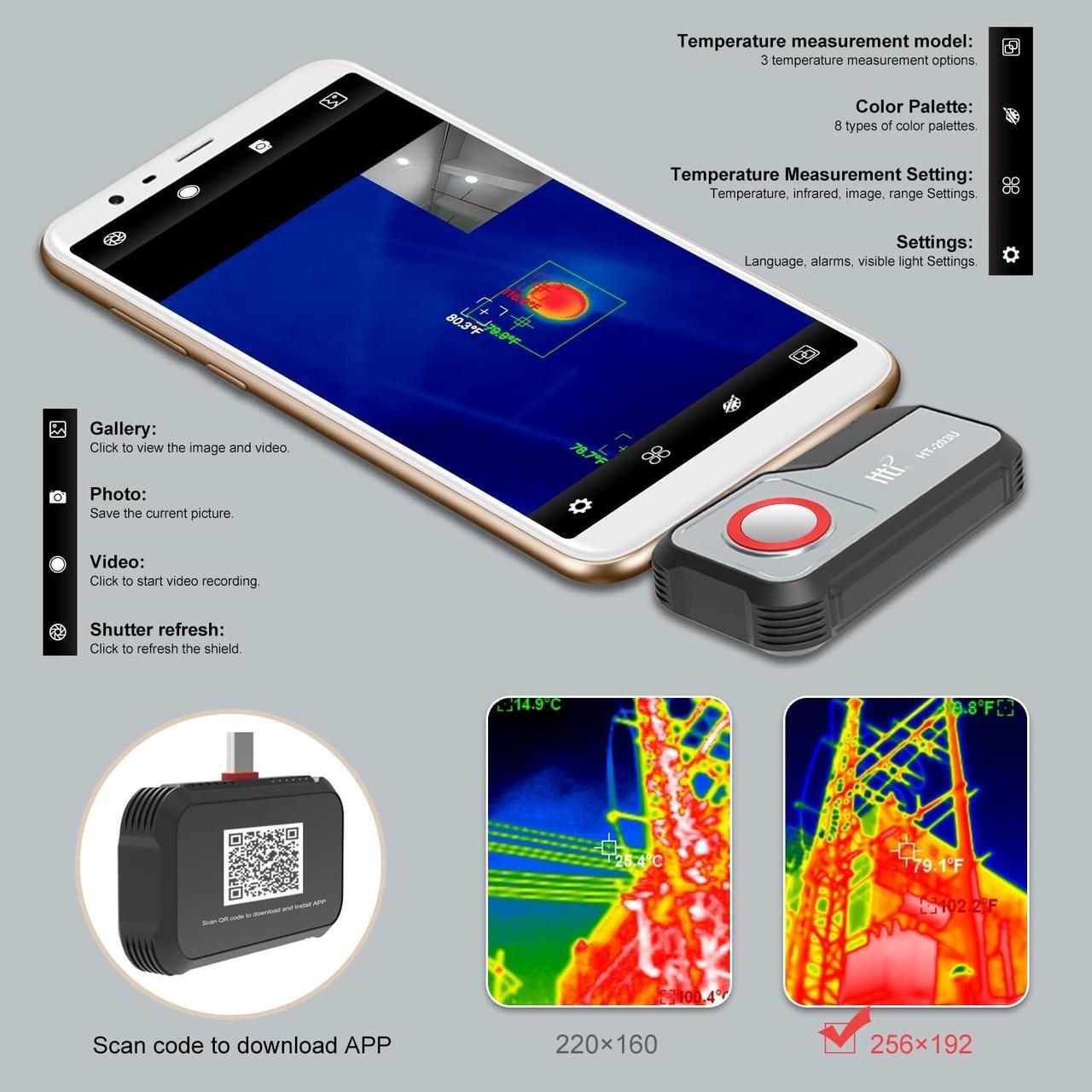

The HTI HT-203U is not just a thermal imager; it's a mobile phone thermal imaging camera that seamlessly integrates with Android Type C devices. This innovative design allows for easy connectivity and real-time thermal analysis on the go. The device is lightweight at just 28g, making it convenient to carry around for extended periods. The compact size of 46*70*14mm ensures it fits comfortably in your pocket or toolkit.

**Precision and Efficiency**
With a temperature measurement accuracy of ±2 or ±2%, the HTI HT-203U ensures precise temperature readings. The device offers multiple temperature measurement modes, including center point and hot and cold spot tracking, to provide a comprehensive analysis of the thermal environment. The adjustable emissivity setting from 0.01 to 1.00 allows for accurate temperature readings across various surfaces. The HTI HT-203U is a reliable tool for professionals in industries such as electronics repair, building inspection, and HVAC maintenance.
