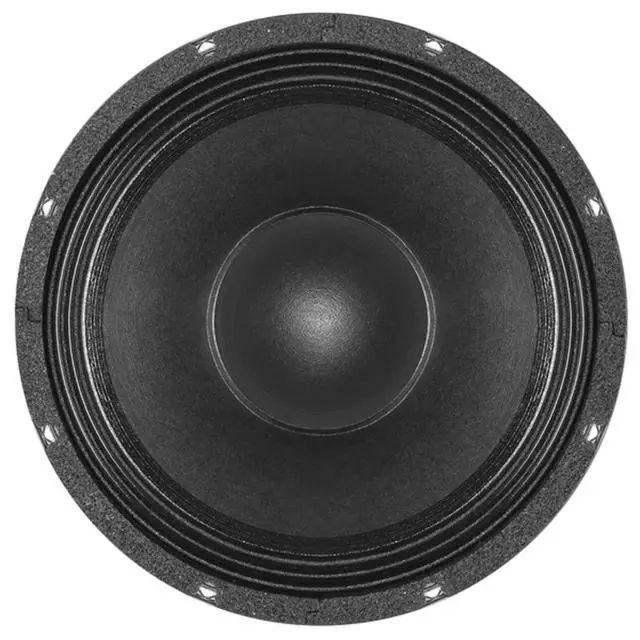

12CL76-8 LF Drivers 12-inch Woofer 8 Ohms Impedance 350 Watts Rms 700 Watts Max Neodymium Inside Slug Pro Audio Component Speaker Driver for Motorcycle Car

HIGHLIGHTS - 700 W continuous program power capacity - 76 mm (3 in) copper voice coil - 45 - 3000 Hz response - 98.5 dB sensitivity - Ventilated voice coil gap for reduced power compression SPECIFICATIONS -
Nominal Diameter: 320 mm ( 12.0 in) -
Nominal Impedance: 8 -
Minimum Impedance: 6.5 - Nominal
Power Handling: 350 W - Continuous
Power Handling: 700 W -
Sensitivity (1W/1m): 98.5 dB -

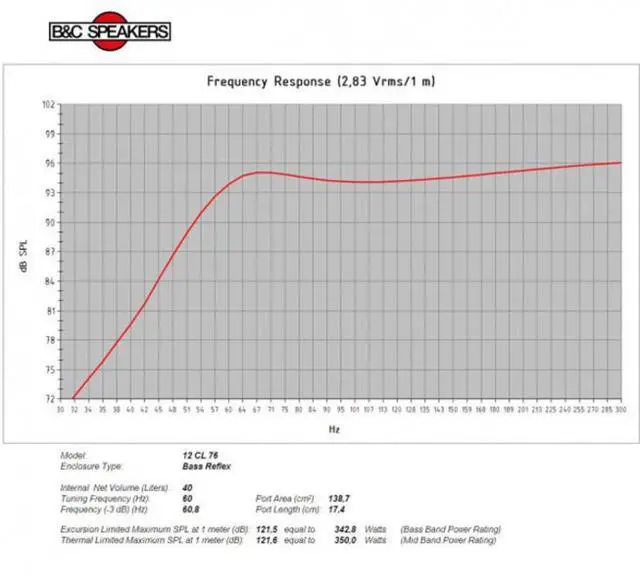

Frequency Range: 45 - 3000 Hz -
Voice Coil Diameter: 76 mm ( 3.0 in) -
Winding Material: Copper -
Former Material: Glass Fibre -
Winding Depth: 17.0 mm ( 0.67 in) -
Magnetic Gap Depth: 11.0 mm ( 0.43 in) -
Flux Density: 1.05 T MOUNTING AND SHIPPING INFO -
Overall Diameter: 313 mm ( 12.32 in) -
Bolt Circle Diameter: 299 mm ( 11.77 in) -
Baffle Cutout Diameter: 282.0 mm ( 11.1 in) -
Depth: 142 mm ( 5.59 in) - Flange and
Gasket Thickness: 9 mm ( 0.35 in) - Air Volume Occupied by
Driver: 2.3 dm³ ( 0.08 ft³) -
Net Weight: 3.35 kg ( 7.39 lb) -
Shipping Units: 1 -
Shipping Weight: 4.25 kg ( 9.37 lb) -
Shipping Box: 360x360x200 mm ( 14.17 x 14.17 x 7.87 in) DESIGN -
Surround Shape: Triple Roll -
Cone Shape: Exponential -
Magnet Material: Neodymium Inside Slug -
Spider: Single -
Pole Design: Straight Pole -
Woofer Cone Treatment: WP Waterproof Front Side -
Recommended Enclosure: 40.0 dm³ ( 1.41 ft³) -
Recommended Tuning: 60 Hz This professional loudspeaker transducer is engineered and produced by one of the largest and most renowned transducer manufacturers globally, providing OEM components to numerous leading professional audio brands
