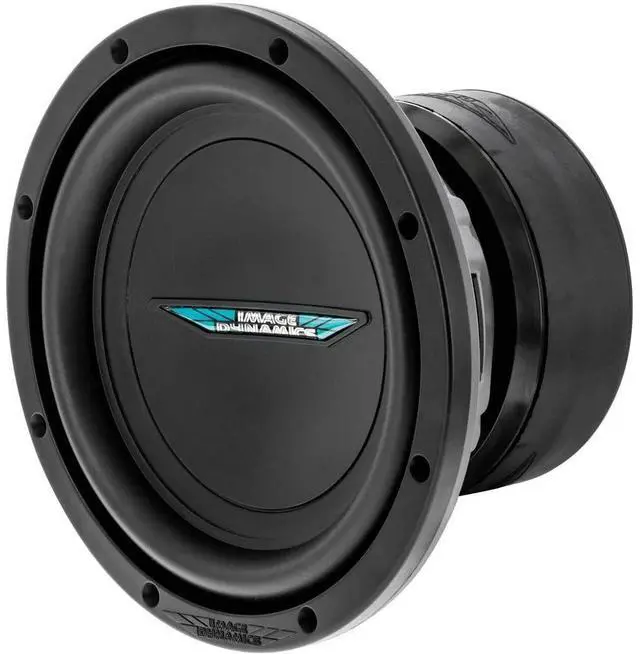

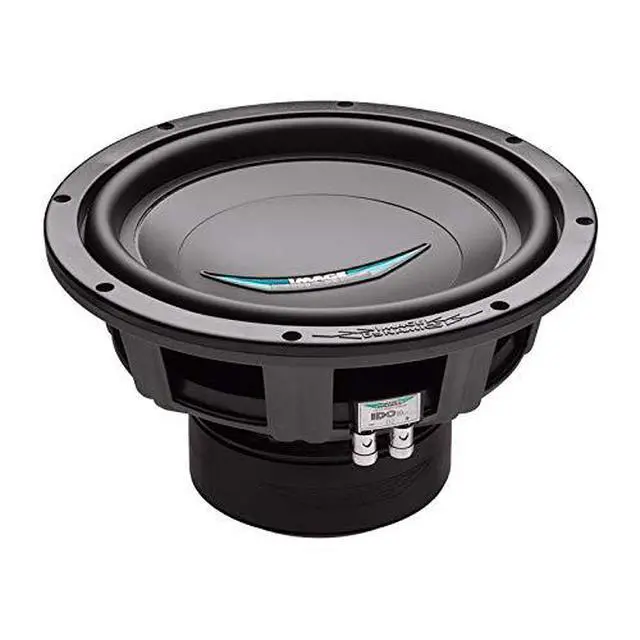

IDQ10 V.4 D2 10" 1000W Peak Dual 2-Ohm IDQ V.4 Series Subwoofer
Limited time offer, ends 09/07 By Myriad Mart
- 10" Dual 2 ohm IDQ V.4 Series Subwoofer | Mica-reinforced polypropylene cone woofer | Parabolic roll surround | Ability to custom match the basket color to your personal installation | Conex spider with integrated tinsel leads | New V4 Metal Basket | High-temperature aluminum voice coil | Proprietary voice coil attachment design Power Handling: Peak: 1000 watts | RMS: 500 watts | Recommended Power Range: 50-500 watts Nominal Impedance (IMP): Dual 2 | DC Resistance (Re): 1.85 | Resonance Frequency (Fs): 31.77 Hz | Equivalent Volume (Vas): 44.71 L | Electrical Q Factor (Qes): 0.79 | Mechanical Q Factor (Qms): 2.90 | Total Q Factor (Qts): 0.62 | Peak Excursion (Xmax): 28 mm | Piston Area (Sd): 383.58 cm2 | Sensitivity: 84.50 dB 1w/1m Sealed Enclosure Suggestion: 1.1 cu.ft. | Ported Enclosure Suggestion: 1.45 cu.ft. | Displacement: 0.07 cu.ft. | Mounting Depth: 5.81 in | Outside Diameter: 11.04 in | Cutout: 9.57 in
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
10" Dual 2 ohm IDQ V. 4 Series Subwoofer | Mica-reinforced polypropylene cone woofer | Parabolic roll surround | Ability to custom match the basket color to your personal installation | Conex spider with integrated tinsel leads | New V4 Metal Basket | High-temperature aluminum voice coil | Proprietary voice coil attachment design
Power Handling:
Peak: 1000 watts |
RMS: 500 watts | Recommended
Power Range: 50-500 watts
Nominal Impedance (IMP): Dual 2 | DC
Resistance (Re): 1.85 | Resonance
Frequency (Fs): 31.77 Hz | Equivalent
Volume (Vas): 44.71 L |
Electrical Q Factor (Qes): 0.79 |
Mechanical Q Factor (Qms): 2.90 |
Total Q Factor (Qts): 0.62 |
Peak Excursion (Xmax): 28 mm |
Piston Area (Sd): 383.58 cm2 |
Sensitivity: 84.50 dB 1w/1m Sealed
Enclosure Suggestion: 1.1 cu. ft.
| Ported Enclosure Suggestion: 1.45 cu. ft.
| Displacement: 0.07 cu. ft.
| Mounting Depth: 5.81 in |
Outside Diameter: 11.04 in |
Cutout: 9.57 in
Power Handling:
Peak: 1000 watts |
RMS: 500 watts | Recommended
Power Range: 50-500 watts
Nominal Impedance (IMP): Dual 2 | DC
Resistance (Re): 1.85 | Resonance
Frequency (Fs): 31.77 Hz | Equivalent
Volume (Vas): 44.71 L |
Electrical Q Factor (Qes): 0.79 |
Mechanical Q Factor (Qms): 2.90 |
Total Q Factor (Qts): 0.62 |
Peak Excursion (Xmax): 28 mm |
Piston Area (Sd): 383.58 cm2 |
Sensitivity: 84.50 dB 1w/1m Sealed
Enclosure Suggestion: 1.1 cu. ft.
| Ported Enclosure Suggestion: 1.45 cu. ft.
| Displacement: 0.07 cu. ft.
| Mounting Depth: 5.81 in |
Outside Diameter: 11.04 in |
Cutout: 9.57 in
