12 inch eSATA DATA Cable Extension Male to Female

SATA signal cable extension sata cable extender available in 12 and 20 inch versions male to eSATA male cable

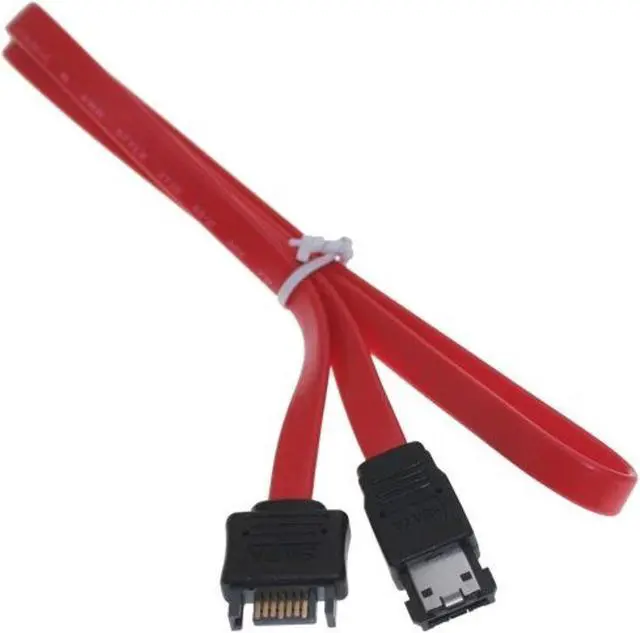

Male to Female eSATA Cable Extension

This cable provides a Male and Female Sata Port for Extending SATA I or SATA II Data Cables. A must have for all Tech Benches Hard Drive Service Centers and anyone that need to Extend SATA Cables.

7-pin internal SATA extension cable female to male Serial ATA 150 Cable for Serial ATA 150/300 hard drives

Features and Specs

• Serial ATA interface 1 device
• 12 or 20 inch Cable: [(26 AWG * 1P + A)+28AWG*2C]*2 AWM STYLE 2725 80 Degrees Celcius 30V VW-1
• Signal Pair Conductor: 26AWG Solid Tinned Copper
• Isolator: Foam PE or Foam PP
• Shielding: Hot Melt Aluminum Mylar Spirally Wrapped
• Drain Wire: 28AWG Solid Tinned Copper
• Jacket: 80 degree Celsius PVC OD 2.2mm*7.80mm +/- 0.2
• Connector Material Housing: Temperature polyester & glass fiber UL 94V-0
• Terminal: Copper Alloy
• Cover: ABS UL 94V-0
• Plating Contact area: 15u gold plated over 50u" Nickel
• High Frequency Character: Impedance: 100 +/- 15 ohms (Mated Connector)
• Attenuation: 6 dB Max from 10MHz ~ 4500 MHz
• Crosstalk(NEXT): -26dB Max from 10MHz~4500MHz
• Intra Pair Skew: 10 ps
• Max Rise Time: 85 ps Max
