Barrow G1/4" Inner Thread to 1/2" ID Barb Adapter Fitting - Silver (TNYBT4-A02-Silver)

The Barrow TNYBT4-A02 is a barb fitting for soft tubing with a 1/2" (12.7 mm) inner diameter. Unlike most barbs it has a G1/4" female thread instead of a male one, so it screws onto a male thread such as a male to male adapter, an extender or a part with a male G1/4" outlet. It is machined from H59 brass and finished in shiny silver.

Properties

• Type: Barb fitting, female thread
• Thread: G1/4" female
• Tubing: 1/2" ID soft tubing
• Size: 18 mm collar, 14.5 mm barb, 20 mm long
• Material: H59 brass, electroplated
• Color: Silver
• Pieces in the pack: 1

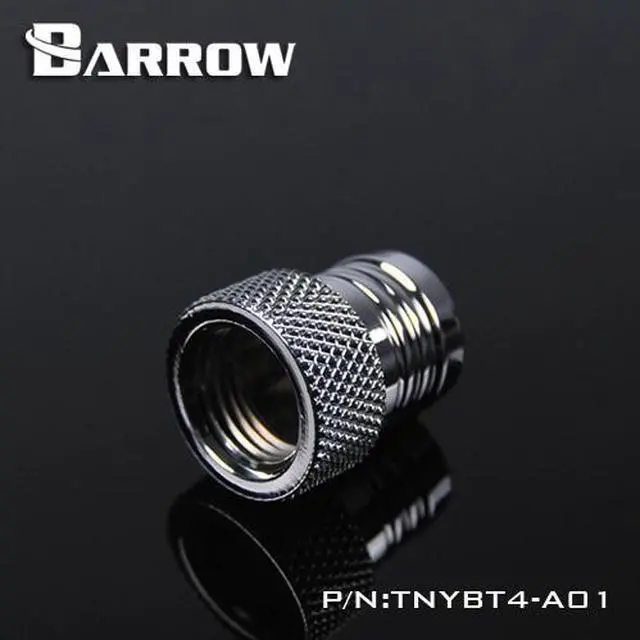

A barb that screws onto a male thread

The knurled collar holds a G1/4" female thread, and the ridged barb takes 1/2" ID soft tubing. Push the tube over the barb, then secure it with a hose clamp or a cable tie if you want extra hold; Barrow does not include a clamp.

Brass with a double-protected finish

Barrow uses H59 brass for the body and protects the surface with what it calls a double electroplating process, which it says gives a fine texture that is solid and durable.

Non-slip diamond knurling

The collar has a diamond knurl pattern. Barrow says it gives a sure grip when you screw the fitting on by hand.

Standard G1/4" thread

The thread is the standard G1/4" of PC water cooling, so it fits male threads on parts from other makers as well as Barrow's own.

Technical data

• Model: TNYBT4-A02
• Type: Barb with female thread
• Thread: G1/4" female
• Barb: For 1/2" ID soft tubing
• Collar diameter: 18 mm
• Collar height: 8 mm
• Barb length: 12 mm
• Barb outer diameter: 14.5 mm
• Material: H59 brass
• Color: Silver

Notes

• Barrow makes this barb in black, white, shiny silver and gold. This listing is the shiny silver version.
• Barrow notes that it may update the look or construction of the part without notice; the part you receive is the current version.

In the box

• 1x Barrow G1/4" Inner Thread to 1/2" ID Barb Adapter Fitting - Silver
