Barrow G1/4" Thread Rotary 5-Way Block Splitter Fitting - Black (TX5T-A01)

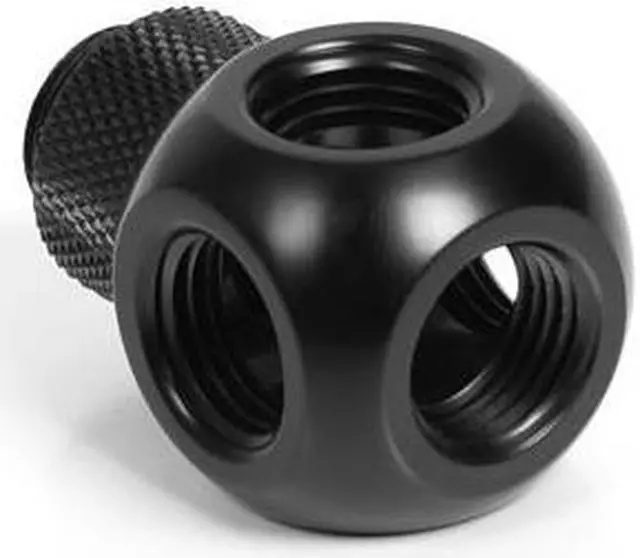

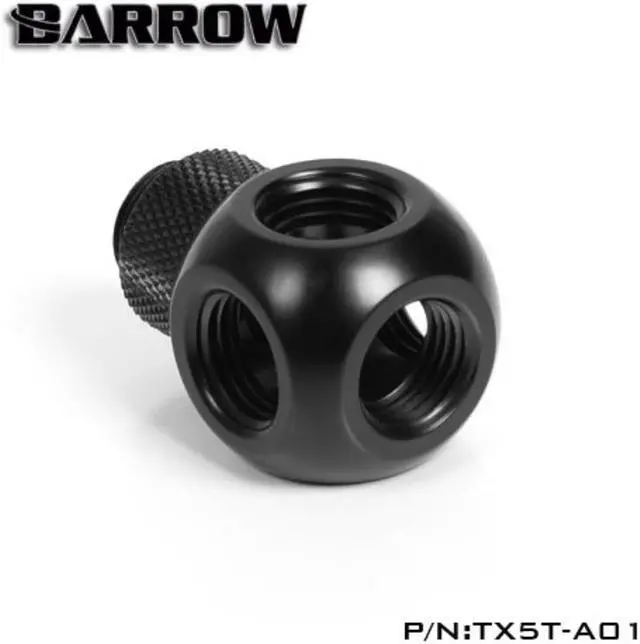

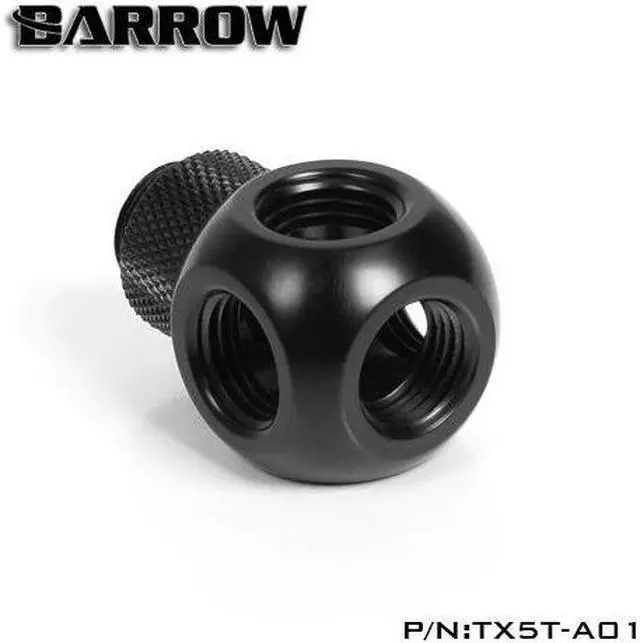

The Barrow TX5T-A01 is a 5-way splitter: a 24 mm brass cube with 4 G1/4" female ports (one on the end facing away from the base and three on the sides) on a G1/4" male rotary base. The base turns through a full 360°, so the cube can be turned to point its ports where your tubes need to go after it is screwed in. It is machined from H59 brass and finished in black.

Properties

• Type: 5-way rotary splitter cube
• Ports: 5 x G1/4" (4 female, 1 male rotary)
• Rotation: 360°
• Material: H59 brass, electroplated
• Color: Black
• Pieces in the pack: 1

Split, branch or drain from one port

Barrow makes this cube for splitting or joining flow in a water cooling loop. Typical uses are a tee in the line, a drain or fill point with a plug or valve on a spare port, or a tight turn straight out of a block or radiator. Ports you do not use are closed with a standard G1/4" plug.

Rotary base

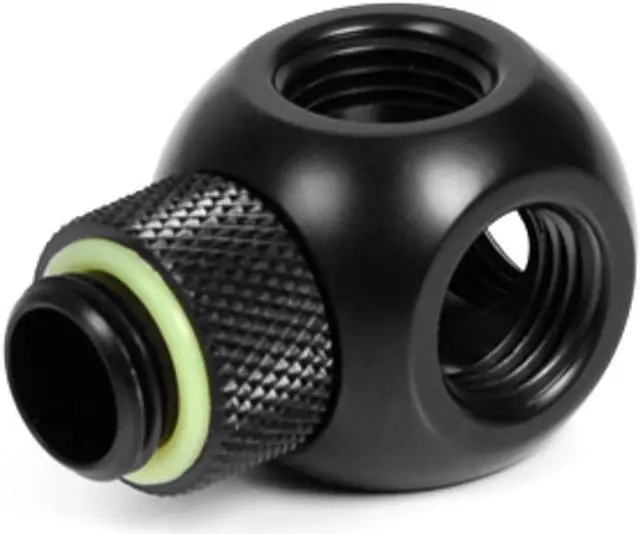

The knurled G1/4" male base turns against the cube through 360°. Screw it into the port, then turn the cube so its outlets line up with your tubes.

Brass with a double-protected finish

Barrow uses H59 brass for the body and protects the surface with what it calls a double electroplating process, which it says gives a fine texture that is solid and durable.

Standard G1/4" connections

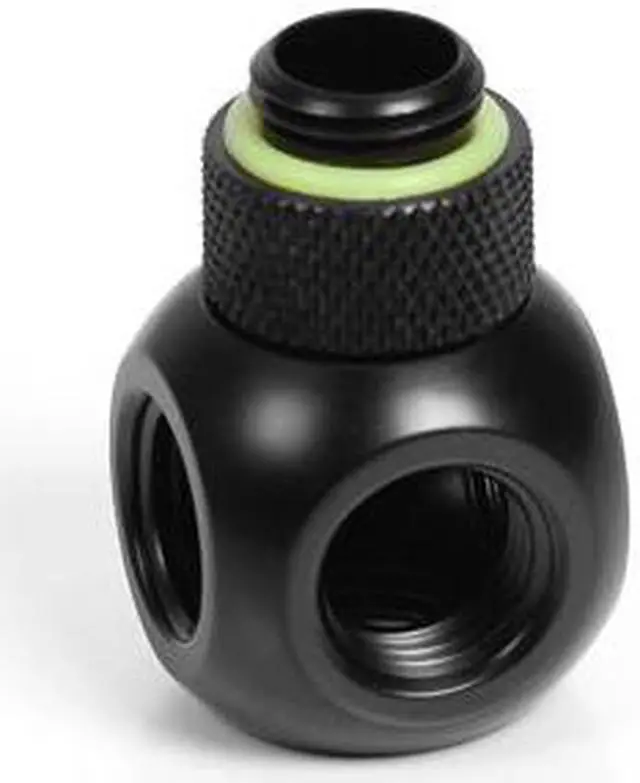

All ports use the standard G1/4" thread of PC water cooling, so the cube works with blocks, radiators, reservoirs and fittings from other makers as well as Barrow's own. The male base is sealed by an O-ring.

Technical data

• Model: TX5T-A01
• Type: 5-way rotary splitter cube
• Ports: 4 x G1/4" female | 1 x G1/4" male (rotary)
• Total G1/4" ports: 5
• Possible rotation: 360°
• Cube size: 24 x 24 mm
• Rotary base diameter: 18 mm
• Height without male thread: 33 mm
• Male thread length: 5 mm
• Material: H59 brass
• Color: Black

Notes

• Barrow sells this splitter in black, white and shiny silver. This listing is the black version.
• Plugs for unused ports are not included.
• Barrow notes that it may update the look or construction of the part without notice; the part you receive is the current version.

In the box

• 1x Barrow G1/4" Thread Rotary 5-Way Block Splitter Fitting - Black
