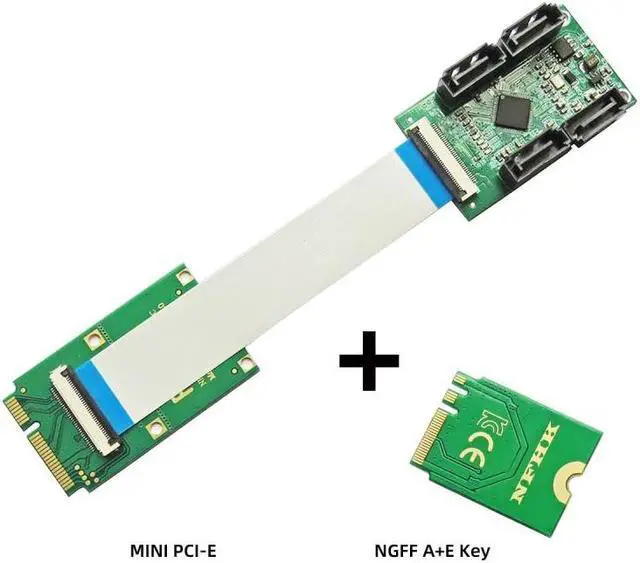

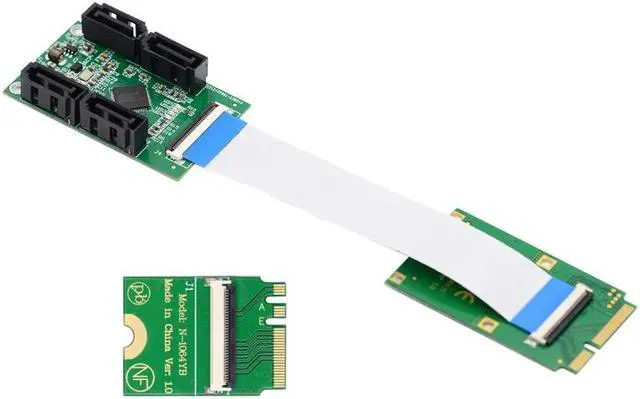

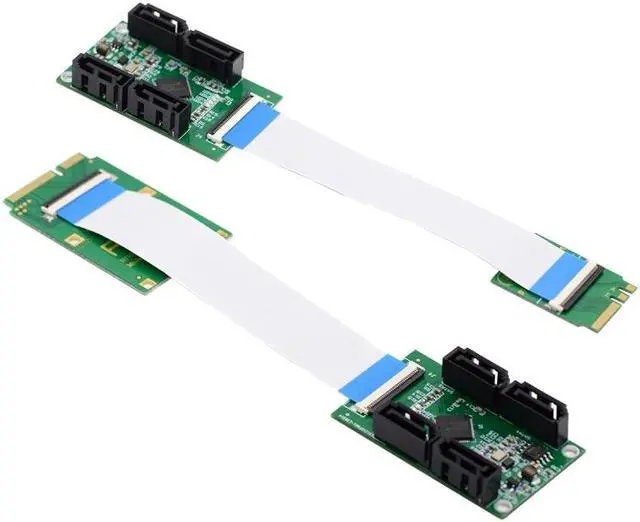

Jimier Mini PCI-E PCI Express & NGFF A+E Key to SATA 3.0 Four Ports Adapter Cable 6Gbps Hard Drive Extension Card for SSD
- Mini PCI-E PCI Express & NGFF A+E Key to SATA 3.0 Four Ports Adapter Cable 6Gbps Hard Drive Extension Card for SSD
- It has four SATA3.0 interfaces, which can be connected to an SSD solid state hard disk as a system disk, and supports transmission rates of 6.0Gbps, 3.0Gbps, 1.5Gbps.
- With hot swap and hot plug capabilities, and power management functions;
- The adapter supports from Mini PCI-E PCI Express or NGFF A+E Key host to 4SATA target disk.

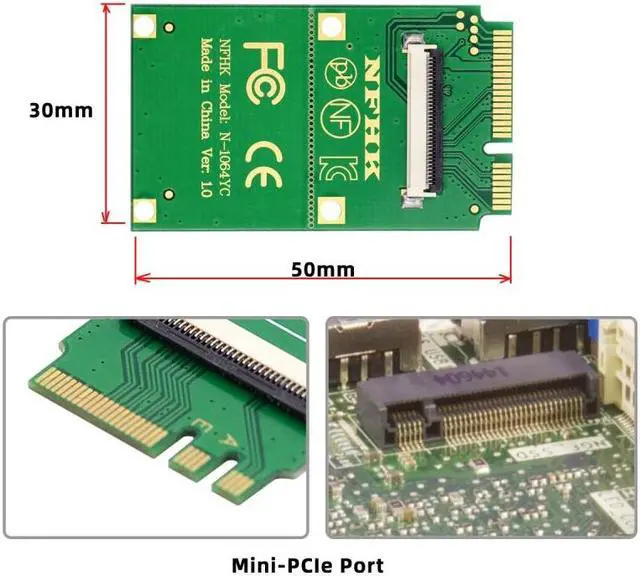

- Applicable slot1: MINI PCI-E (mSATA is not supported)

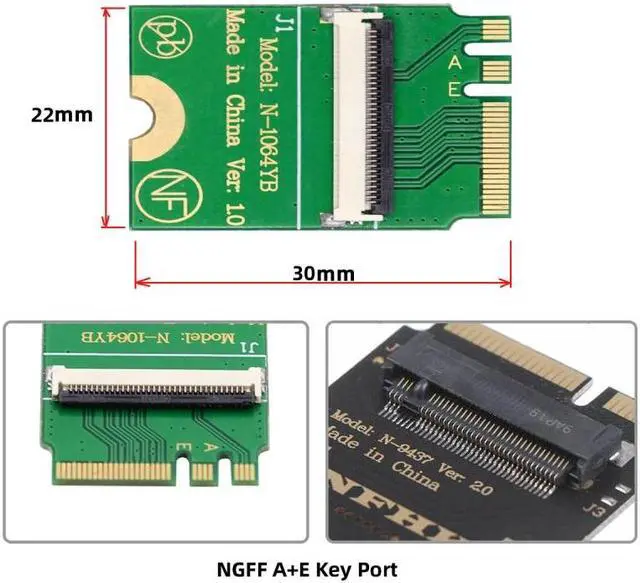

- Applicable slot2: NGFF A+E key (B/M-Key is not supported)
- Main control chip: ASMedia ASM1064
- Interface: 4 * SATA3.0 interface

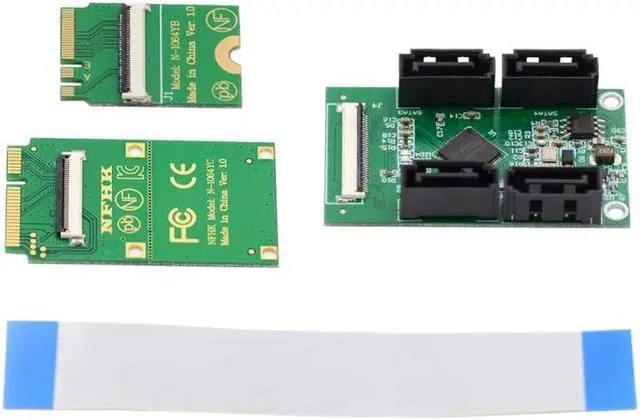

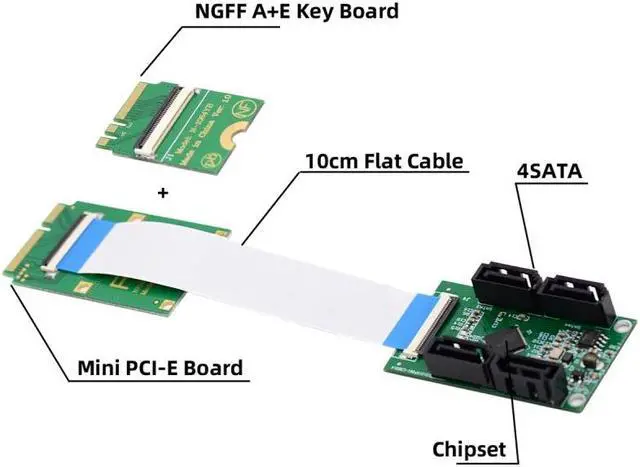

- Package included: Mini PCIe board*1, NGFF A+E board*1, Flat cable*1, Main SATA board*1
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Mini PCI-E PCI Express & NGFF A+E Key to SATA 3.0 Four Ports Adapter Cable 6Gbps Hard Drive Extension Card for SSD
It has four SATA 3.0 interfaces, which can be connected to an SSD solid state hard disk as a system disk, and supports transmission rates of 6.0G bps, 3.0G bps, 1.5G bps.
With hot swap and hot plug capabilities, and power management functions;
The adapter supports from Mini PCI-E PCI Express or NGFF A+E Key host to 4SATA target disk.
Applicable slot1: MINI PCI-E (mSATA is not supported)
Applicable slot2: NGFF A+E key (B/M-Key is not supported)
Main control chip: ASMedia ASM1064
Interface: 4 * SATA 3.0 interface
Package included: Mini PCIe board*1, NGFF A+E board*1, Flat cable*1, Main SATA board*1
It has four SATA 3.0 interfaces, which can be connected to an SSD solid state hard disk as a system disk, and supports transmission rates of 6.0G bps, 3.0G bps, 1.5G bps.
With hot swap and hot plug capabilities, and power management functions;
The adapter supports from Mini PCI-E PCI Express or NGFF A+E Key host to 4SATA target disk.
Applicable slot1: MINI PCI-E (mSATA is not supported)
Applicable slot2: NGFF A+E key (B/M-Key is not supported)
Main control chip: ASMedia ASM1064
Interface: 4 * SATA 3.0 interface
Package included: Mini PCIe board*1, NGFF A+E board*1, Flat cable*1, Main SATA board*1
