Jimier SFF-8639 NVME U.2 to M.2 M-Key PCIe SSD Case Enclosure for Mainboard Replace SSD 750 p3600 p3700 SA-077

SFF-8639 NVME U.2 to NGFF M.2 M-key PCIe SSD Adapter for Mainboard Replace SSD 750 p3600 p3700
With Black Case Enclosure
1) Need M-key or NVME SSD, the B-key or B/M-key SSD cannot work; Connector: U.2 SFF-8639 male 67 pin M.2 NGFF key M slot.

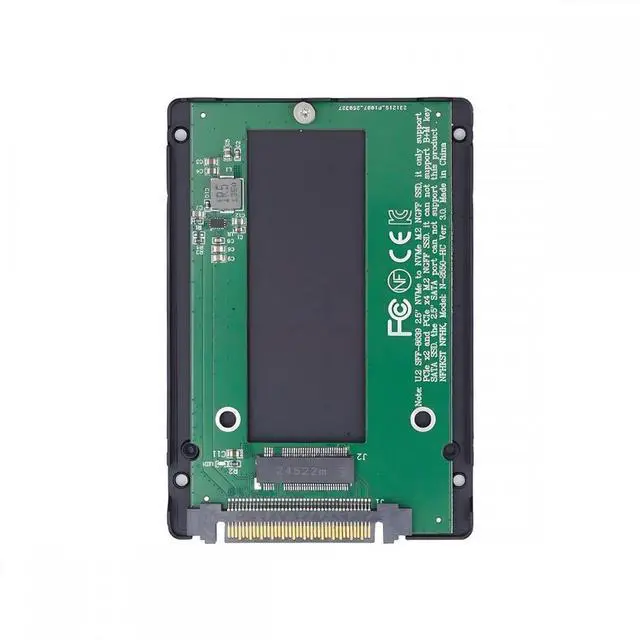

2) This converter enables the connection of a M.2 NGFF SSD in 2280, 2260, 2242 and 2230 format. The converter can be installed into your system internally through the U.2 68 pin interface.

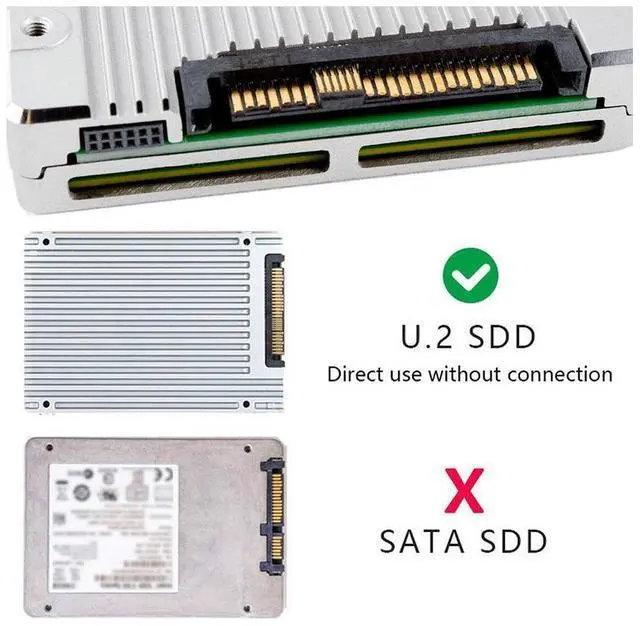

3) A U.2 SSD is a high-performance data storage device designed to support the Peripheral Component Interconnect Express (PCIe) interface using a small form factor (SFF) connector that is also compatible with standard SAS and SATA-based spinning disks and solid-state drives (SSDs).
4) To avoid damage to the device, ensure that the installation direction is correct. Does not support hot-plugging.
5) Compliant with PCI Express 4.0. No driver installation is required. Most of the latest operating systems support PCIe SSDs.
System requirements :
1. Windows 8/8-64/8.1/8.1-64/10/10-64, Linux Kernel 3.16
2. A free U.2 SFF-8639 interface or A free SFF-8643 interface
3. It does not work for SATA port.
