Jimier PCI-E Gen3.0 1x To 16x Riser Cable 30cm PCI-Express PCI-E X16 Extender Right Angled Elbow Design EP-034

PCI-E Gen3.0 1x To 16x Riser Cable 30cm PCI-Express PCI-E X16 Extender Right Angled Elbow Design
Work For GTX1080TI high-end graphics CARDS, firepro w7100, radeon hd RX580 VEGA64, pro wx5100, quadro K1200 professional graphics,support all the PCIe card

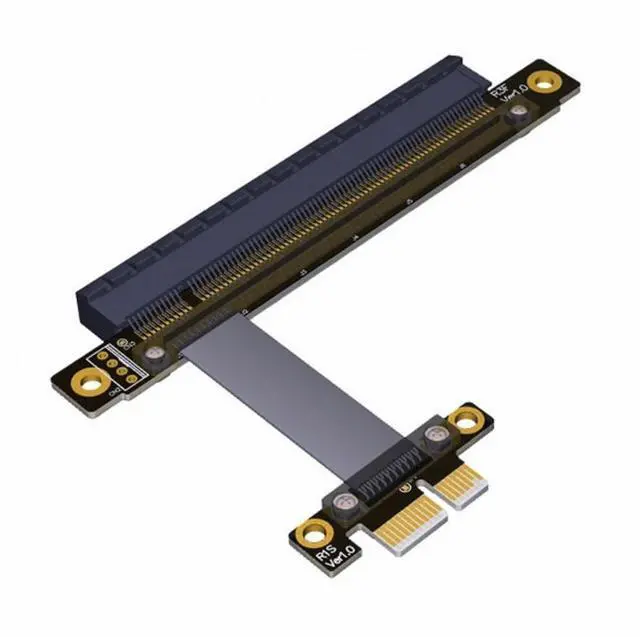

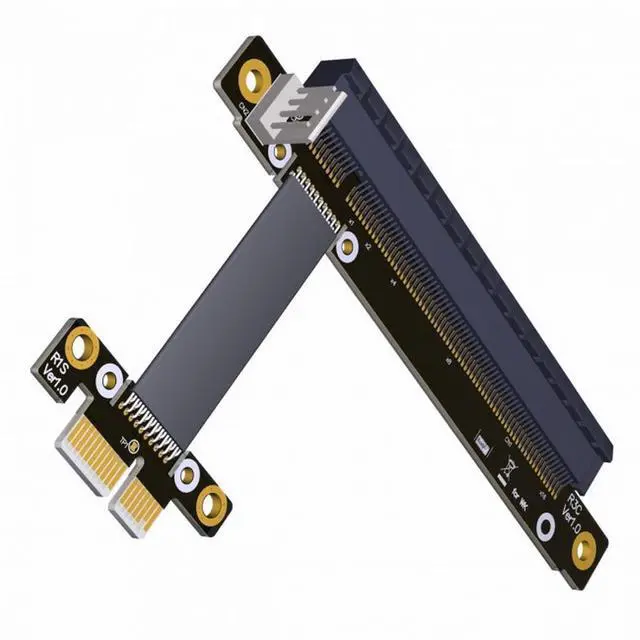

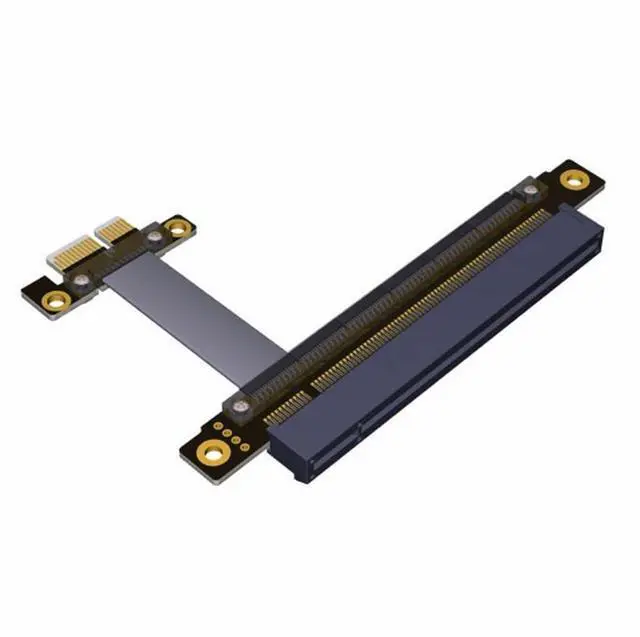

EP-114 series is PCIe 1x to 16x Edge Connector Extension Adapter cable, adapted to PCIe x16,connectors to re-locate a PCIe card slot or bridge between slots on two different PCBs.
The ribbonized format of the axial cable provides a dense and flexible solution without signal attenuation for high speed PCIe Gen3 8Gbps Data Transaction, bidirectional 256Gbps (256GT/sec) for PCI x16, and 16Gpbs (16GT/sec) per PCIe lane.
Cable Quality: Stable PCIe Gen3 8Gbps or higher with high quality Axial Cable
Cable Flexibility: Highly-routable, foldable, flexible
Cable Length: 30cm
PCB Quality: Experienced design and durable material for High frequency and low attenuation.
Connector Quality: Taiwan Made high quality for PC server / mother board.

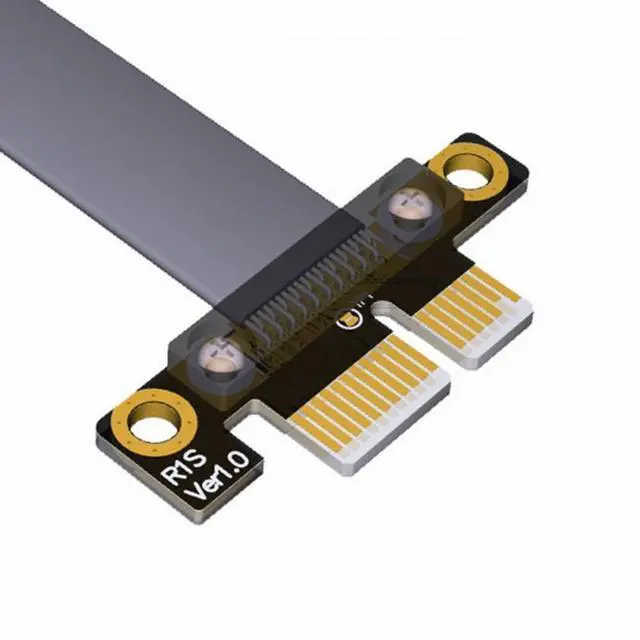

Solder Point Protection: PCB-Swaddled and fixed with Bolts and nut to prevent tearing and short circuit for PCB-Cable solder points.
Specification:

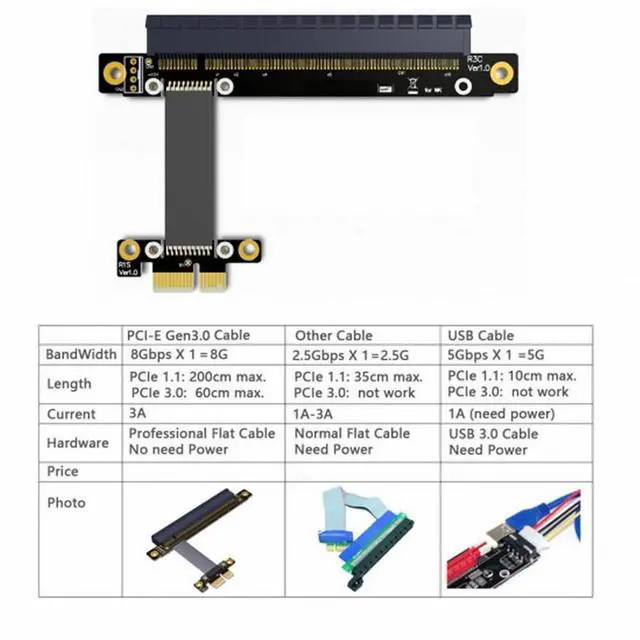

1.Maximum Speed: PCIe Gen3 8Gbps. Bidirectional 32.0GB/sec (256Gpbs , 256GT/sec) for PCIe x16, 2.0GB/sec (16Gpbs , 16GT/sec) per PCIe lane, PCIe Gen2 (5Gbps) PCIe Gen1 (2.5Gbps) compatibles.
2.Header (Male) Connector: PCIe x1
3.Receptacle (Female) Connector: PCIe x16
4.Cable: Length: Customized for 30cm

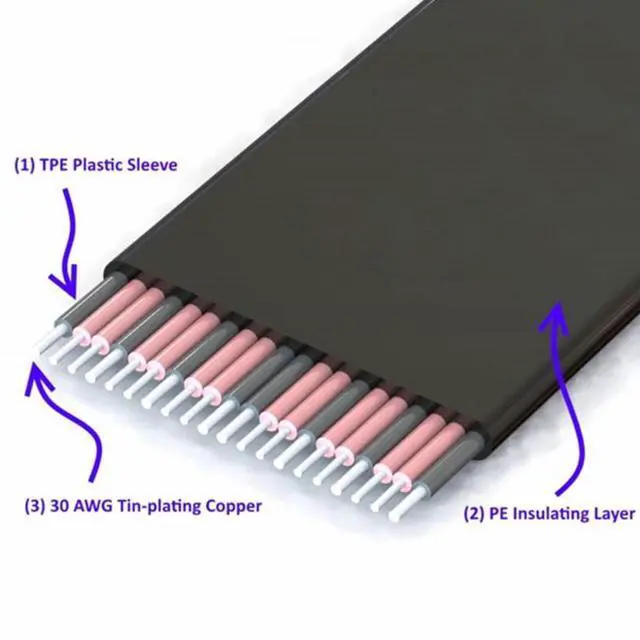

5.Cable Type: Flat, Twin Axial, Thickness=1.4mm (1/16 inch) Width=54mm (9mm*6, 2 1/8 inch)
6.EMI Shielding with Conducting Polymer
7.Connector Type: Straight , Up angles, Down angled
