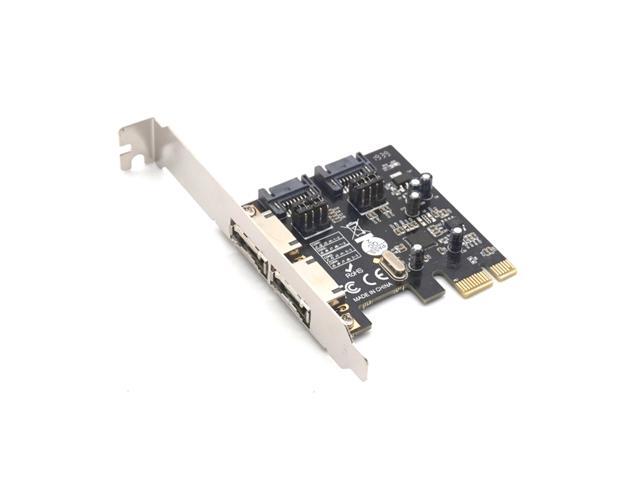

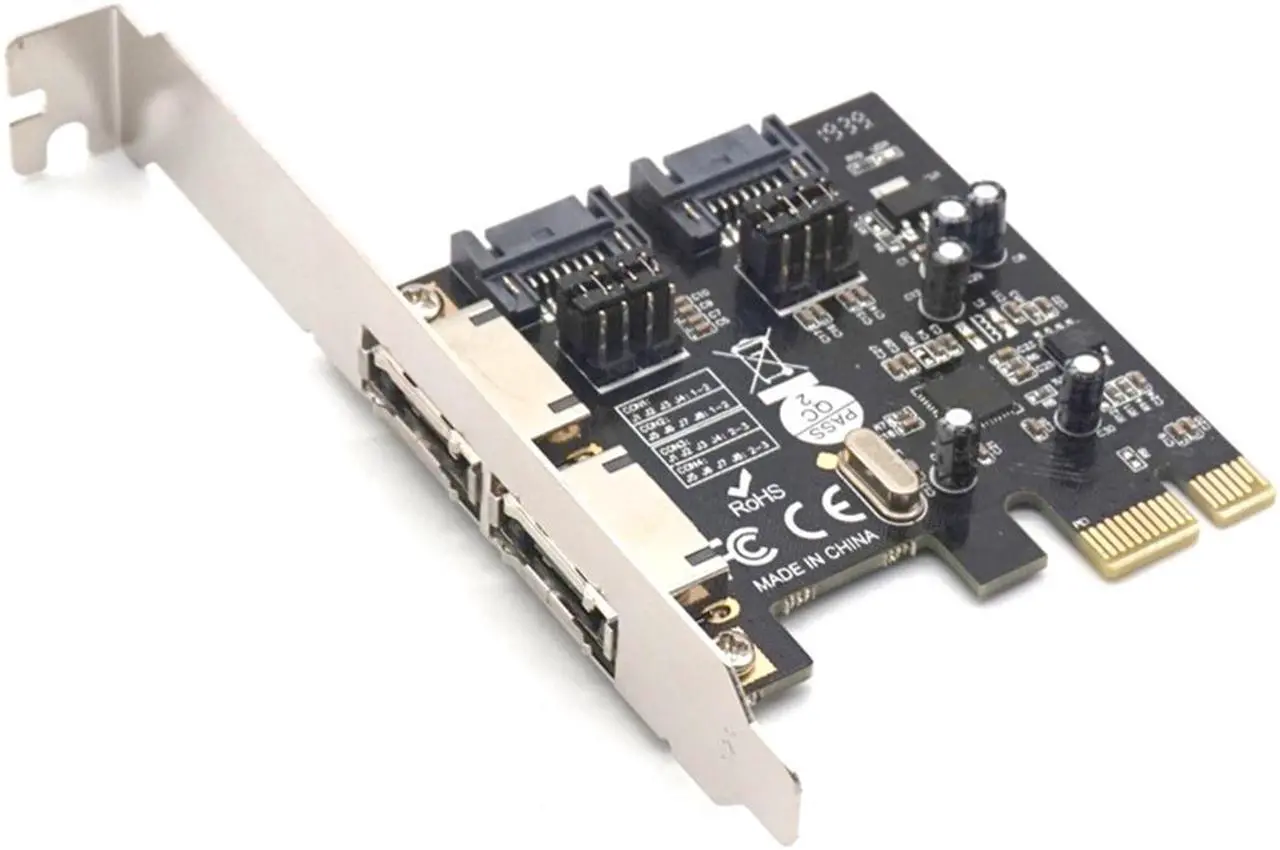

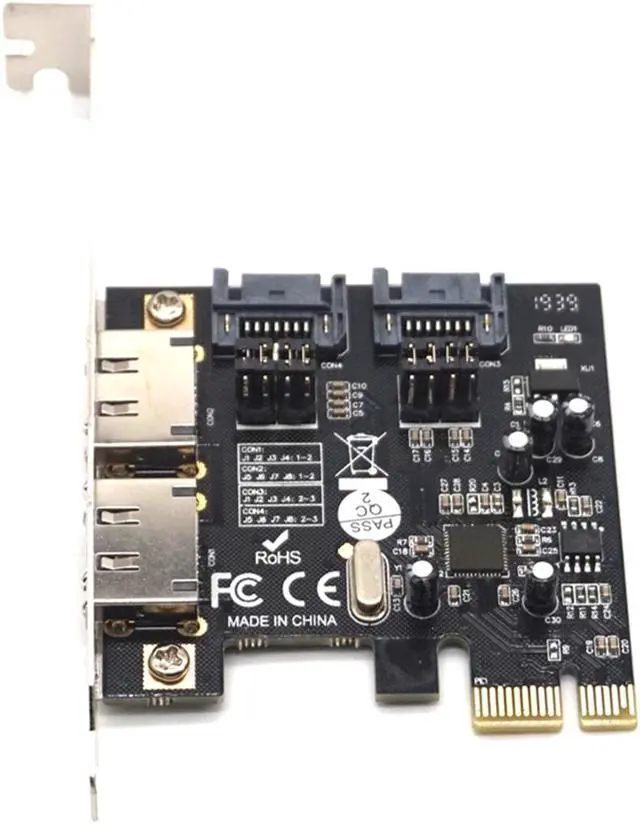

Weastlinks 2 Port Sata 2 Port Esata 3.0 PCIE Pci-E To SATA ESATA Expansion Card Pcie Adapter Card

Features:

100% brand new and high quality
PCI-E PCI Expess to 2 SATA 2 ESATA Adapter Card.
Compliant with Serial ATA 3.0 Specification the Data transfer rate up to 6.0Gb/s
Serial ATA III is compatible with speed negotiation serial ATA II and serial ATA I.
Chipset: ASM1061
Support SATA 3.0 port
2 x SATA Port
2 x ESATA port
AHCI Compliant
Hot-Plug capability
Support 2TB Hard Disk
Speed: 6Gbps (each SATA port)
Compatible with SATA Revision 2.6
Support Native Command Queuing(NCQ)
Compatible with SATA(III, II, I), Hard Drive, SSD.
Driver supported Windows98SE / ME / 2000 / XP / Server 2003 / Vista / WIN7/8/10 32 / 64bit
Size:(L*W)12.00*6.60cm/4.72"*2.60"
Quantity:1Set

Note:
This card must use the PCI-E 2.0 slot to increase the speed. Please confirm the specifications of the PCI-E slot on your motherboard.
This card is based on the SATA3.0 function provided by the admedia ASM1061 chip. It is used for the expansion of the SATA3.0 interface and cannot be used as an array.
Motherboard BOIS settings: SATA mode must be changed to AHCI. Although some motherboards have PCIE version 2.0, BOIS does not enable high-speed transmission mode (gen2 high speed mode) by default.

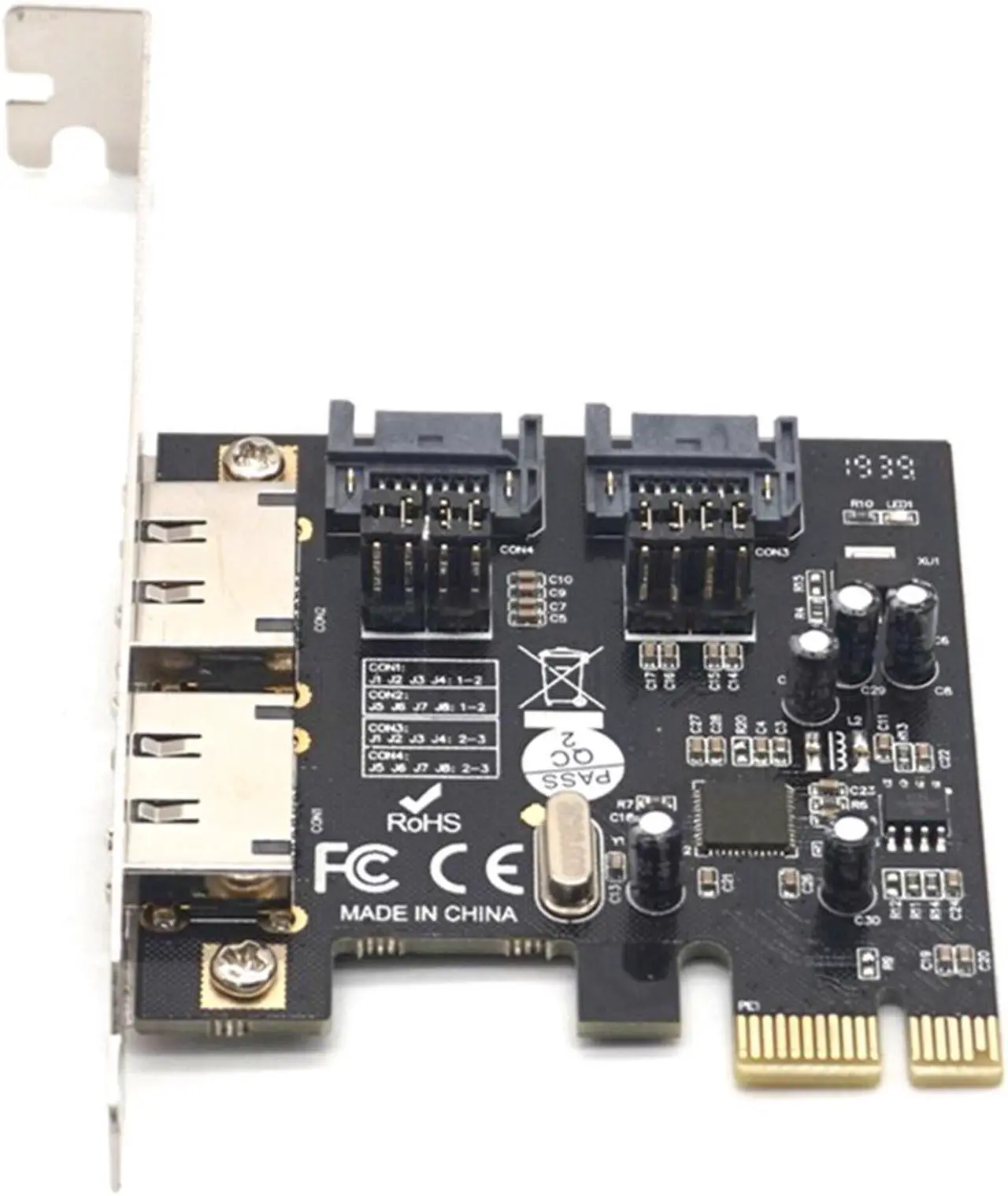

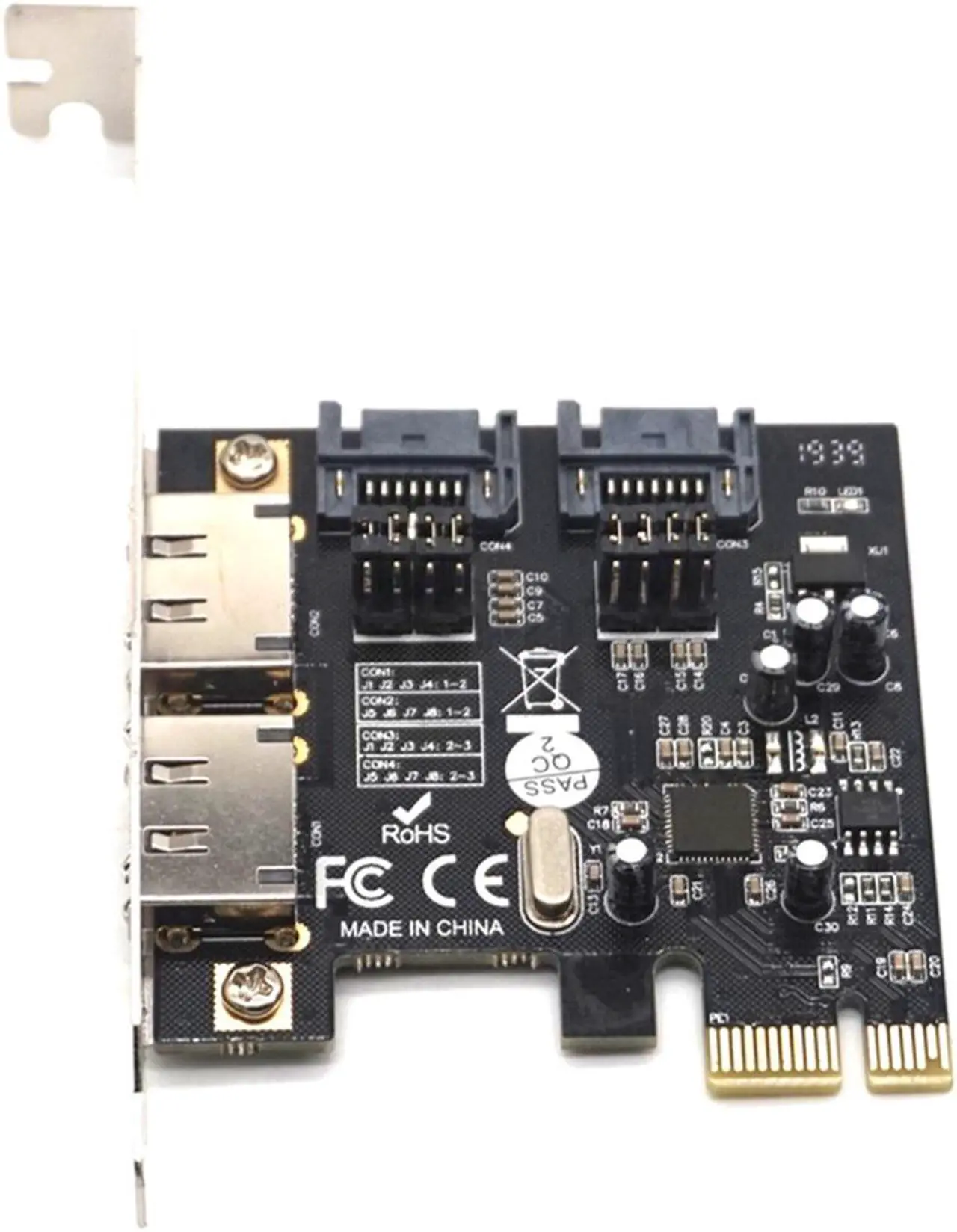

It only can connect 2 SATA or 2 ESATA port at the same time by Jumper setting.


Package Included:

1 x PCIE to 2 STA3.0 2 ESATA expansion cards
