PCIe Express Card to USB 3.0 Type-C w/ 2.4A Quick Charging and 19Pin USB 3.0 Dual,Port Power by 15pin SATA
Limited time offer, ends 07/22 By YuXuan Technology
- PCIe 3 Port USB 3.0 add on card
- w/ 2.4A Quick Charging
- 1 x USB 3.0-C Type C external port + Internal USB 20pin for dual USB 3.0 expansion
- The USB 3.0-A Port for charge only, don't transfer the data.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:
Compatible with PCI-Express 2.0 stardard
Compatible with Super Speed USB 3.0 5Gbps stardard, backwards to USB 2.0 and USB 1.1
Compatible with XHCI specification 1.0
Over current protection

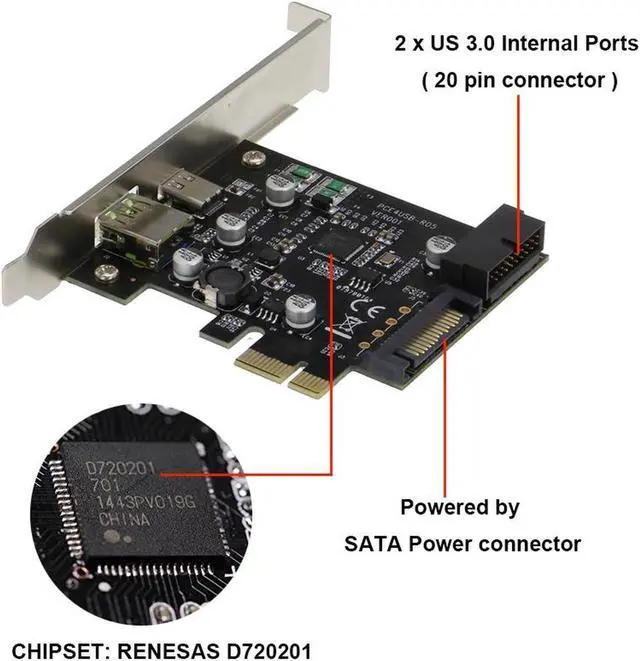

Chip set: NEC UPD720201
Maximum transfer speed: 5Gbps
USB power supply output: 5V, 2A (increased to 2.4A )
Built-In SATA power connector
Supports PCIe 1x, 4x, 8x, 16x Slot
Support Windows XP / 2003 / Win7 / Win8 / Vista / Linux
Interface:
2 x US 3.0 Internal Ports (20 pin connector)

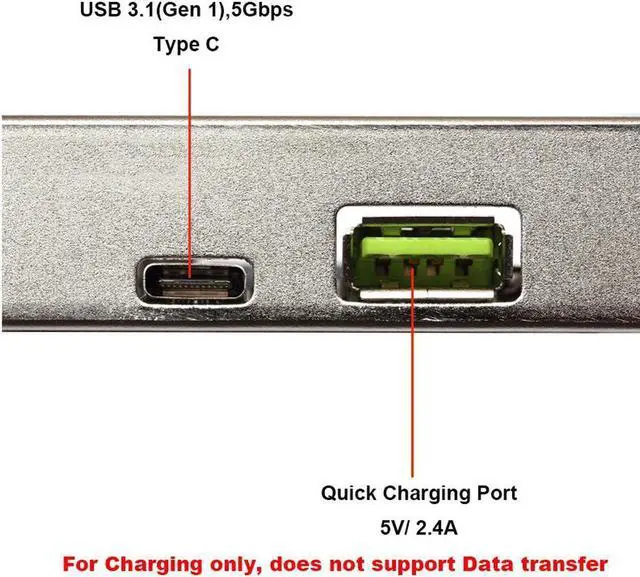

1 x USB 3.0 External Type C ports
1 x USB quick charging ports, supports up to 5V/ 2.4A max. (Only for chargning, no data transfer function and need connect SATA power )
2 x US 3.0 Internal Ports (20 pin connector) front panel for floppy bay
Packagen Content:
1 x PCIE USB 3.0 Type C / Charging adapter card
1 x Driver CD
Note:
For USB charging, you need connect the SATA power cable, get power for your PSU,
Charge port for charging only, no data transfer function
Compatible with PCI-Express 2.0 stardard
Compatible with Super Speed USB 3.0 5Gbps stardard, backwards to USB 2.0 and USB 1.1
Compatible with XHCI specification 1.0
Over current protection
Chip set: NEC UPD720201
Maximum transfer speed: 5Gbps
USB power supply output: 5V, 2A (increased to 2.4A )
Built-In SATA power connector
Supports PCIe 1x, 4x, 8x, 16x Slot
Support Windows XP / 2003 / Win7 / Win8 / Vista / Linux
Interface:
2 x US 3.0 Internal Ports (20 pin connector)
1 x USB 3.0 External Type C ports
1 x USB quick charging ports, supports up to 5V/ 2.4A max. (Only for chargning, no data transfer function and need connect SATA power )
2 x US 3.0 Internal Ports (20 pin connector) front panel for floppy bay
Packagen Content:
1 x PCIE USB 3.0 Type C / Charging adapter card
1 x Driver CD
Note:
For USB charging, you need connect the SATA power cable, get power for your PSU,
Charge port for charging only, no data transfer function
