Vszerda M.2 NGFF SATA & PCIe SSD to Oculink Adapter - CY-SF-055 (Black, 10 x 10 x 1 cm, 1.0 Count)
Limited time offer, ends 01/24 By YuXuan Technology
- The card not work for NVME M-key SSD to SATA host, Also can't work for NGFF B-key SSD to oculink host.
- It only can work for NVME M-key SSD to oculink or NGFF B-key SSD to SATA.
- One M.2 PCIe SSD in 2280, 2260, 2242 and 2230 format can be connected and used as a replacement for a 2.5inch HDD. The converter can be installed into the system internally through the SFF-8611/8612 oculink interface.
- One M.2 SATA SSD in 2280, 2260, 2242 and 2230 format can be connected and used as a replacement for a 2.5inch HDD. The converter can be installed into the system internally through the SATA 22pin interface.
- It can't convert NVME to SATA, also can't covert NGFF/SATA to Oculink.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Oculink 4x connectors are internal and external small form factor PCI-E connectors and cables optimized for the client and market.
Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key B or key B+M based on SATA.
The card not work for NVME M-key SSD to SATA host, Also can't work for NGFF B-key SSD to oculink host.
It only can work for NVME M-key SSD to oculink or NGFF B-key SSD to SATA.
Hyper Kit Storage controller,Ultra PCI-E Card (PCIe 3.0 x4),The card work for PCI-E SSD.(Not work for SAS or Slimeline SAS HD)

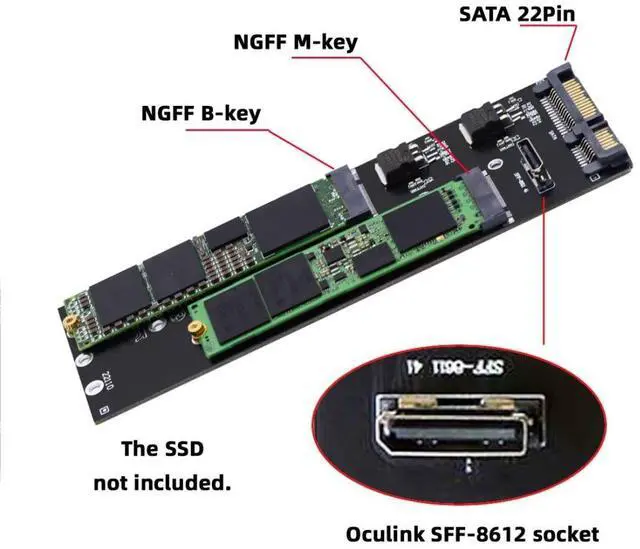

This U.2 M.2 converter enables two different usage applications.

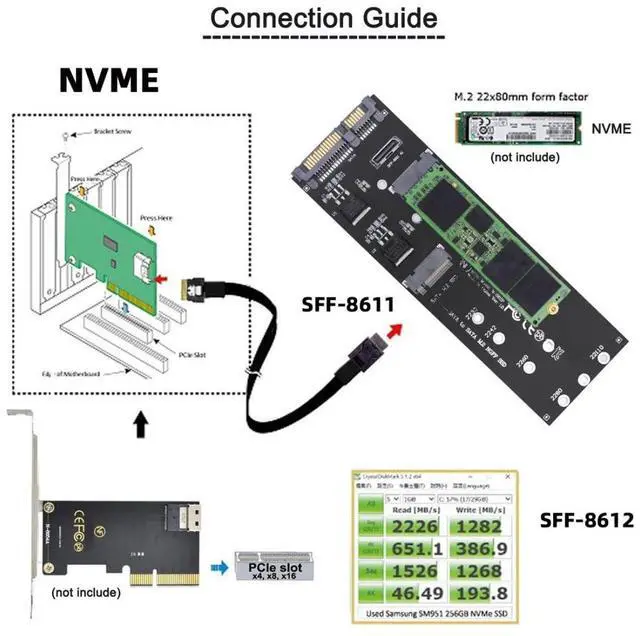

1. One M.2 PCIe SSD in 2280, 2260, 2242 and 2230 format can be connected and used as a replacement for a 2.5inch HDD. The converter can be installed into the system internally through the SFF-8611/8612 oculink interface.
2. One M.2 SATA SSD in 2280, 2260, 2242 and 2230 format can be connected and used as a replacement for a 2.5inch HDD. The converter can be installed into the system internally through the SATA 22pin interface.

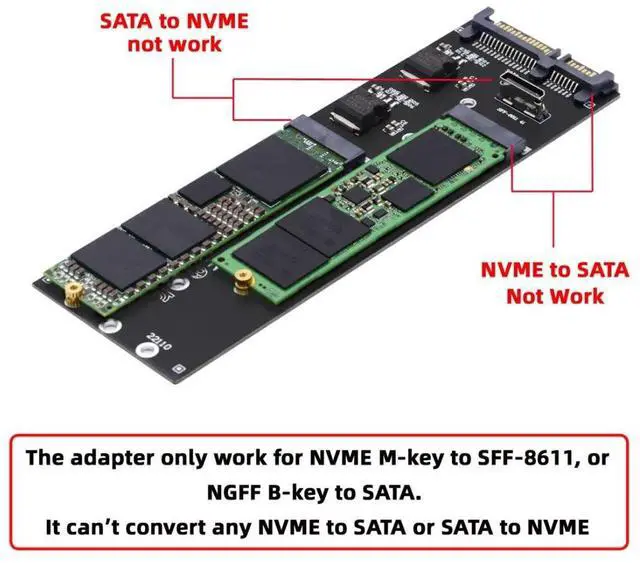

3. It can't convert NVME to SATA, also can't covert NGFF/SATA to Oculink.
Product information
| Compatible Devices | SSD |
| Connector Type | Oculink to Nvme |
| Item dimensions L x W x H | 3.94 x 3.94 x 0.39 inches |
| Brand | Vszerda |
| Finish Type | Black |
| Product Dimensions | 3.94 x 3.94 x 0.39 inches; 0.39 ounces |
| Item model number | SF-055 |
| Date First Available | December 5, 2022 |
| Manufacturer | Vszerda |
| Country of Origin | China |
