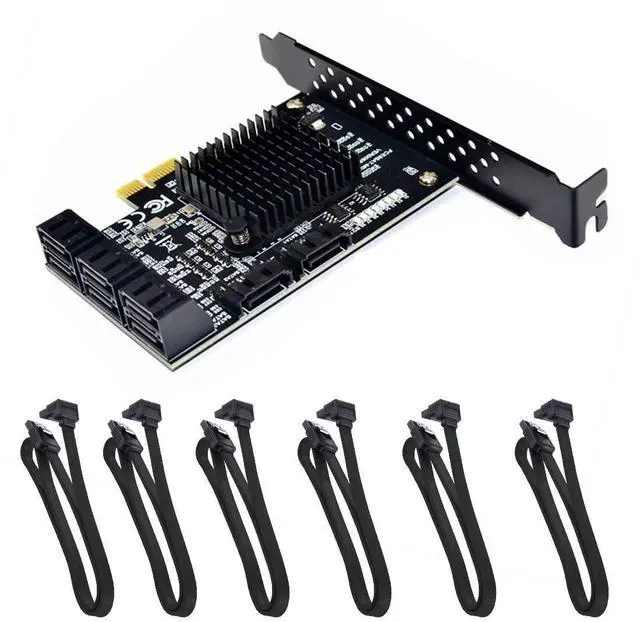

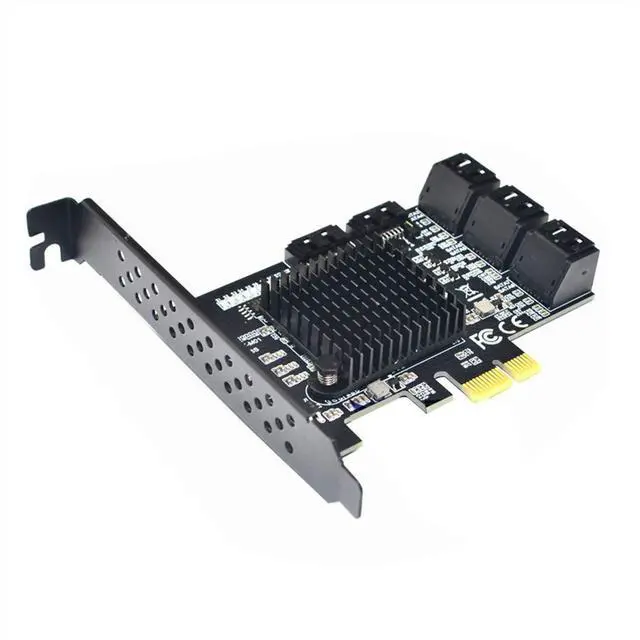

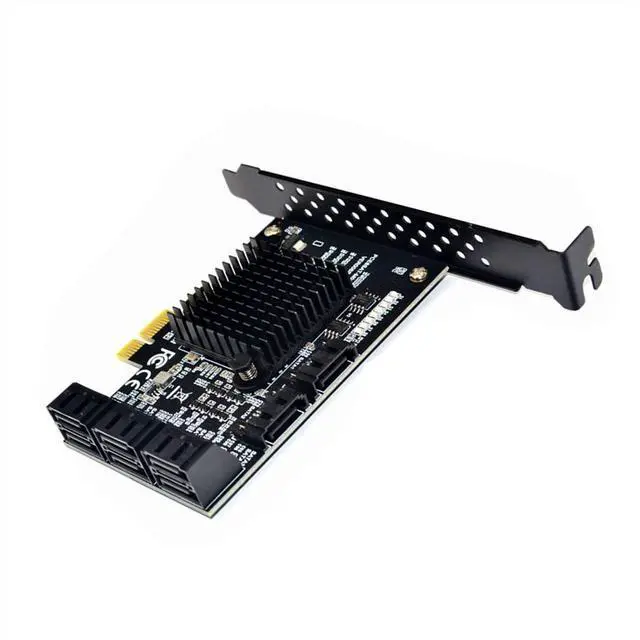

Vszerda 8 Ports SATA 3.0 to PCIe Expansion Card Adapter Converter with 6 SATA Cables Low Profile Bracket Boot As System Disk for Marvell 88SE9215 Chip with Heat Sink HDD (6*Black 90 °Cable)

Instruction to use:?connection conditions and solutions?

1,system disk and PCIE to SATA3.0:

(1)The SATA interface mode of PCIE to SATA3.0 is AHCI mode.If you want to plug in the system disk on our card,the premise is that your system disk must be installed in AHCI mode when installing the system on the motherboard.

(2)If it is determined that the SATA interface installation system of the system disk inserted in the motherboard is AHCI mode,then you can directly insert the hard disk into our card,and then enter the motherboard BIOS to set the system disk as the first boot.

(3)the above two conditions are available,if it still can not start, or repeated reboots,then the motherboard's hard disk interface and our adapter card conflict,the solution is to enter the motherboard BIOS,set the motherboard's hard disk interface options to Disabled,save and restart to start the system

2, common disk and PCIE to SATA3.0:

(1)When the system disk is plugged into the motherboard,the ordinary disk is inserted in the PCIE to SATA3.0 card, then only the adapter card information and the ordinary disk model need to be detected at startup.

(2)if the condition is established,or can not start the system,then you must enter the motherboard BIOS,set the system disk to the first boot.

3, system disk and ordinary disk and PCIE to SATA3.0 :

(1),if the system disk with the original motherboard installed system is AHCI mode test,can use the following methods to achieve,if it is IDE mode installed system,then you can only reinstall the system through PCIE to SATA3.0

(2), (1)condition is established,you can not start to enter the motherboard BIOS,set the system disk to the first boot.

((3), (1).(2) conditions are met but not start,then it may be integrated SATA interface conflict,pls enter the motherboard BIOS to set SATA to Disabled
