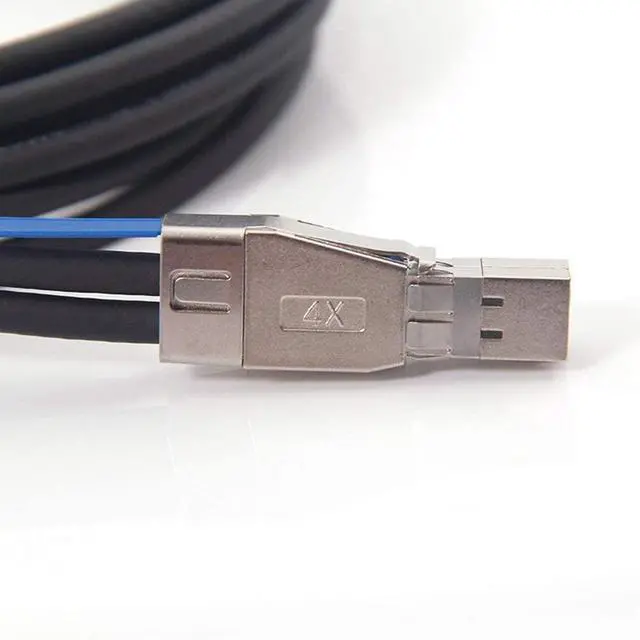

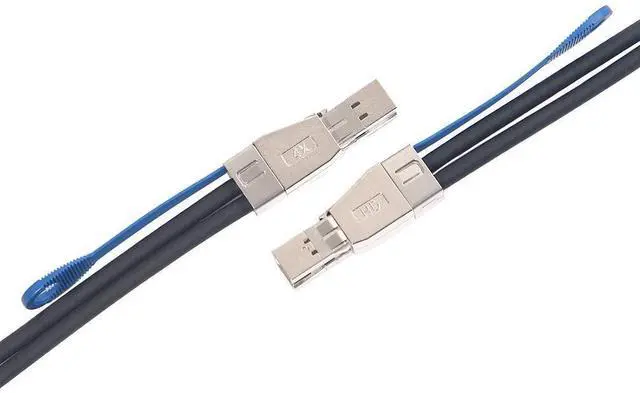

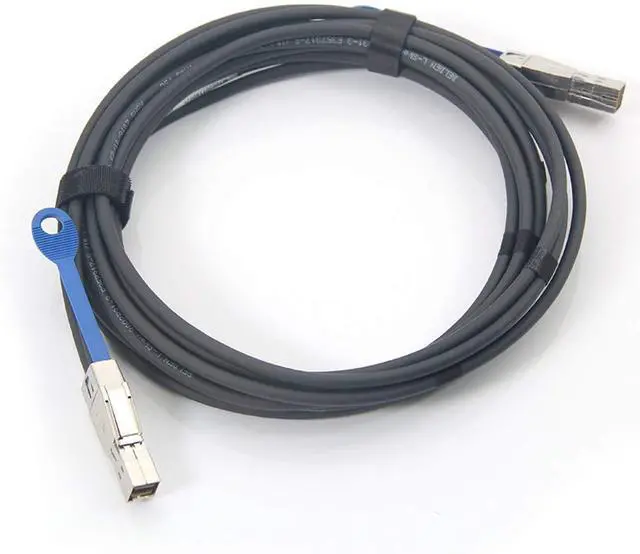

Vszerda External Mini SAS HD SFF-8644 to SFF-8644 (SAS 3.0) Cable, Full Duplex 12Gbps for Servers, RAID Controllers, Host Bus Adapters (HBA), JBOD, 100 Ohms, 2-m(6.6ft)
Limited time offer, ends 01/04 By Jinwen Electronics
- The passive Mini SAS HD copper cable assembly is up to 12Gbps data rates per channel. Impedance = 100 Ohms
- External HD SAS SFF-8644 Cable Assembly, 2-meter(6.6ft)
- External cabling solution for connecting Mini-SAS HD devices. AWG28 Twinaxial 8-pair high-bandwidth low-skew wire
- This interface was adopted for the SAS 2.1 standard and proposed for the SAS 3.0 standard and is designed to support 6G and future 12G SAS applications.
- The EEPROM signature enables the host to identify what type and length of cable is connected to its port and can be customized for any application. An improved latch design reduces the insertion force and increases the retention force.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
12G SAS HD Cable SFF-8644, 0.5~7 meters
External SAS HD (SFF-8644 ) receptacle assembly is the next-generation SAS high-speed I/O interface. This interface was adopted for the SAS 2.1 standard and proposed for SAS 3.0 standard and is designed to support 6G and future 12G SAS applications. The passive Mini SAS HD copper cable assembly is up to 12Gbps data rates per channel. The EEPROM signature enables the host to identify what type and length of cable is connected to its port, and can be customized for any application. An improved latch design reduces the insertion force and increases the retention force.
Features:
- Length: 0.5~7 meters
- Passive
- SFF-8644 compliant
- Connector A: External SAS HD (SFF-8644)
- Connector B: External SAS HD (SFF-8644)
- Impedance: 100 Ohms
- Data Rate: 12.00 Gb/s per channel
- 8-pair differential twinax cable
- 30/28/26AWG
Applications:
- RAID systems
- Storage racks
- External Storage Systems
- SAS/SATA HBA interfaces
- Direct-attached storage (DAS)
Compliant:
- SAS 2.1
- SFF-8644
