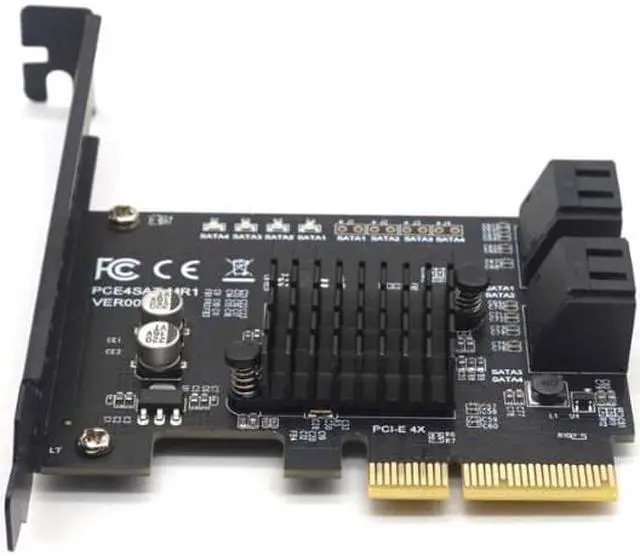

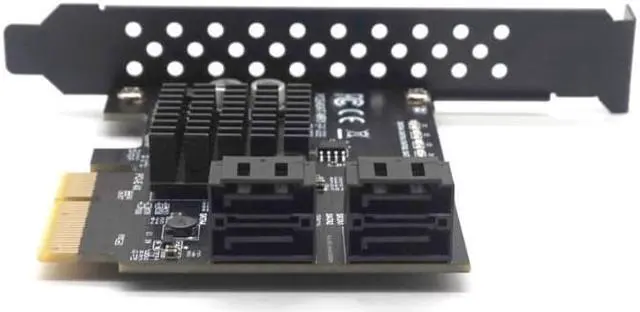

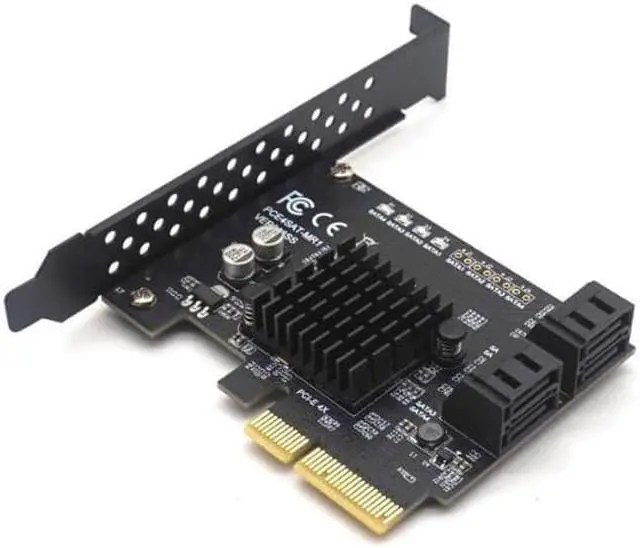

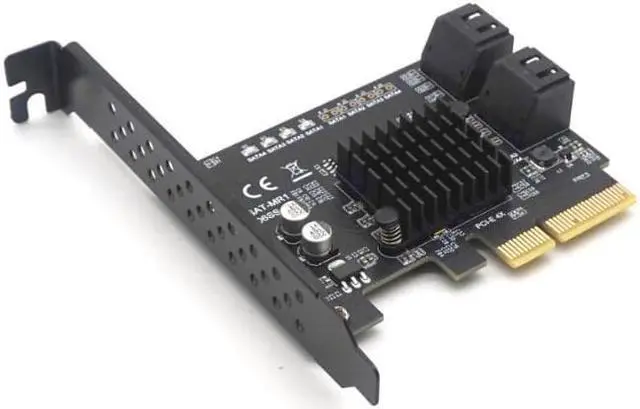

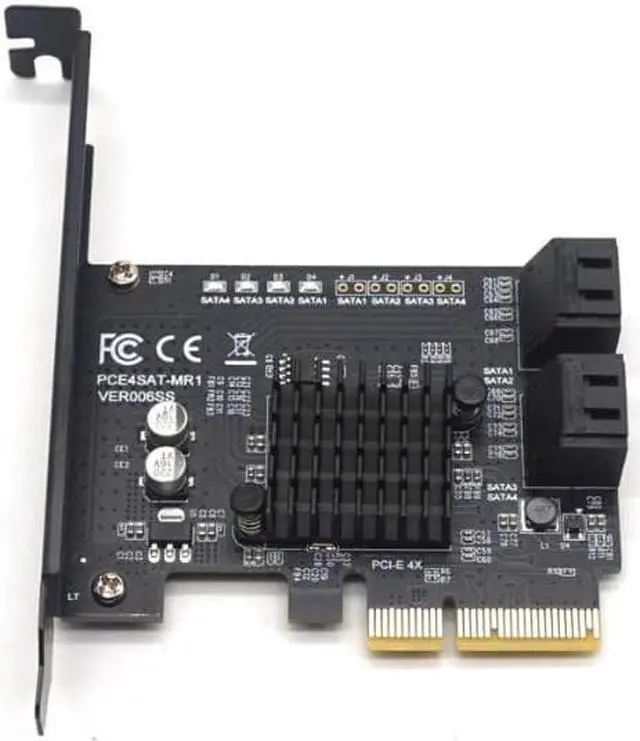

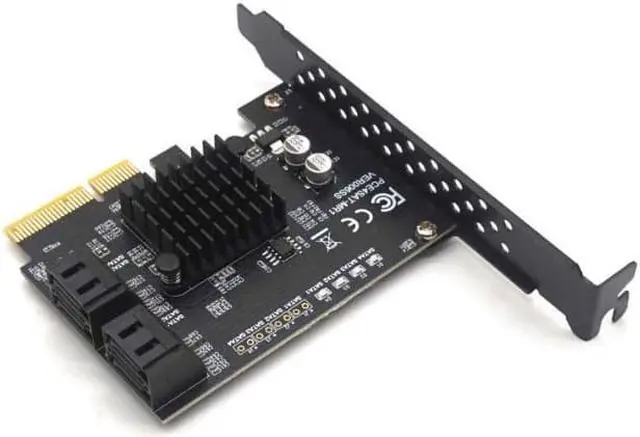

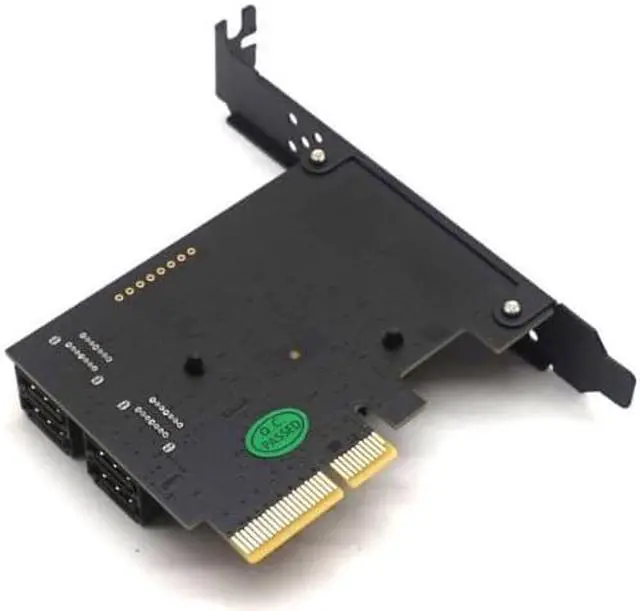

Weastlinks PCI-E to 4 Port Raid SATA3.0 6G Controller Card PCIE 4SATA Raid Card PCI-E SATA Raid PCI Express 4X Marvell 88SE9230 Chip
- SATA III 4-port PCI-e Version 2, Bus type PCI-E x4 Slot Controller Card, HyperDuo, Software RAID.
- Ports: 4 Internal SATA 6Gb/s Ports.
- Supports Communication Speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps.
- Hot Plug and Hot Swap.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:
SATA III 4-port PCI-e Version 2, Bus type PCI-E x4 Slot Controller Card, HyperDuo, Software RAID.
Ports: 4 Internal SATA 6Gb/s Ports.
Compliant with PCI-Express Specification v 2.0 and Backward Compatible with PCI-Express v 1.0.
Compliant with Serial ATA Specification 3.0.
PCI-Express x4 Interface (for Selected Models) is Compatible with PCI-Express x4, x8 and x16 slots.
Supports Communication Speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps.
Hot Plug and Hot Swap.
Supports Native Command Queue (NCQ).
Supports Port Multiplier FIS Based Switching or Command Based Switching.
Compatible with SATA 6G, 3G and 1.5G Hard Drives.
RAID Function:
RAID 0-Striping (Stripe Size: 32K, 64K)
RAID 1-Disk Mirroring
RAID 10-Stripe of Mirrors (Stripe Size: 32K, 64K)
HyoperDuo Safe (Mirrored Protection) or Capacity-Cost (Optimized)
Note: Not Supported RAID on PM
Software Requirement:
Windows XP/Vista/7/8/10, Windows Server 2003, 2008, 2008 R2, Linux 2.6. x and Above (AHCI devices driver is a built-in feature)
Package included:
1 x PCI Express to 4-port SATA 3.0 Raid Controller
SATA III 4-port PCI-e Version 2, Bus type PCI-E x4 Slot Controller Card, HyperDuo, Software RAID.
Ports: 4 Internal SATA 6Gb/s Ports.
Compliant with PCI-Express Specification v 2.0 and Backward Compatible with PCI-Express v 1.0.
Compliant with Serial ATA Specification 3.0.
PCI-Express x4 Interface (for Selected Models) is Compatible with PCI-Express x4, x8 and x16 slots.
Supports Communication Speeds of 6.0 Gbps, 3.0 Gbps, and 1.5 Gbps.
Hot Plug and Hot Swap.
Supports Native Command Queue (NCQ).
Supports Port Multiplier FIS Based Switching or Command Based Switching.
Compatible with SATA 6G, 3G and 1.5G Hard Drives.
RAID Function:
RAID 0-Striping (Stripe Size: 32K, 64K)
RAID 1-Disk Mirroring
RAID 10-Stripe of Mirrors (Stripe Size: 32K, 64K)
HyoperDuo Safe (Mirrored Protection) or Capacity-Cost (Optimized)
Note: Not Supported RAID on PM
Software Requirement:
Windows XP/Vista/7/8/10, Windows Server 2003, 2008, 2008 R2, Linux 2.6. x and Above (AHCI devices driver is a built-in feature)
Package included:
1 x PCI Express to 4-port SATA 3.0 Raid Controller
