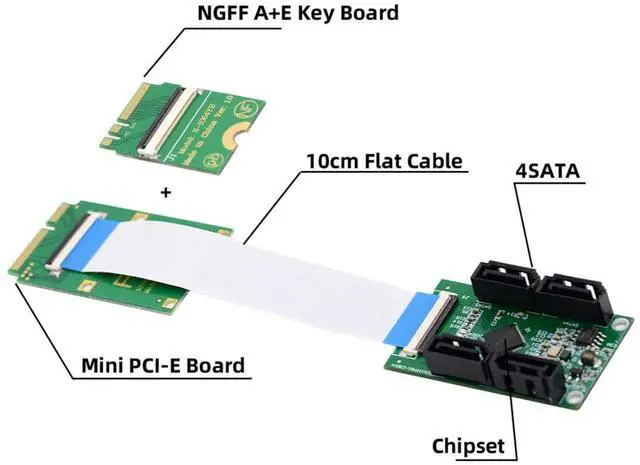

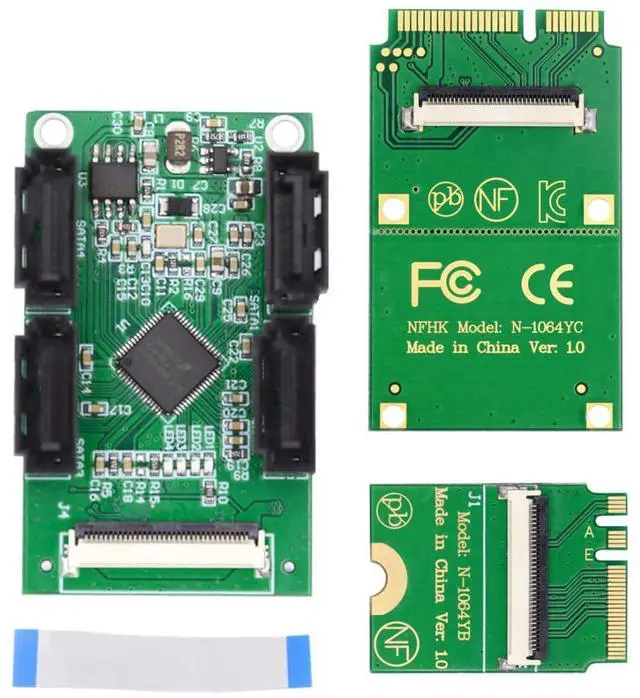

Package included: Mini PCIe board*1, NGFF A+E board*1, Flat cable*1, Main SATA board*1.
It has four SATA 3.0 interfaces, which can be connected to an SSD solid state hard disk as a system disk, and supports transmission rates of 6.0G bps, 3.0G bps, 1.5G bps.
With hot swap and hot plug capabilities, and power management functions;

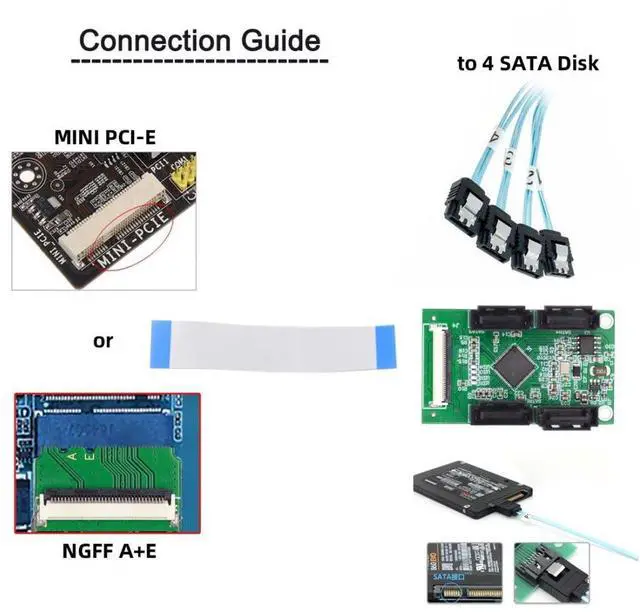

The adapter supports from Mini PCI-E PCI Express or NGFF A+E Key host to 4SATA target disk.

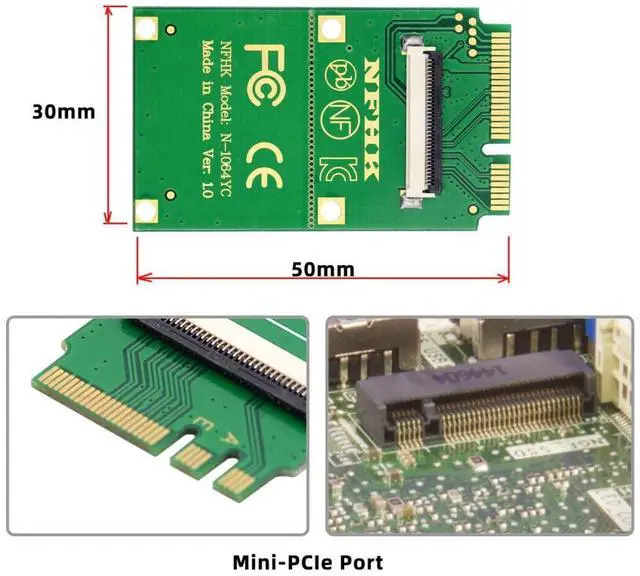

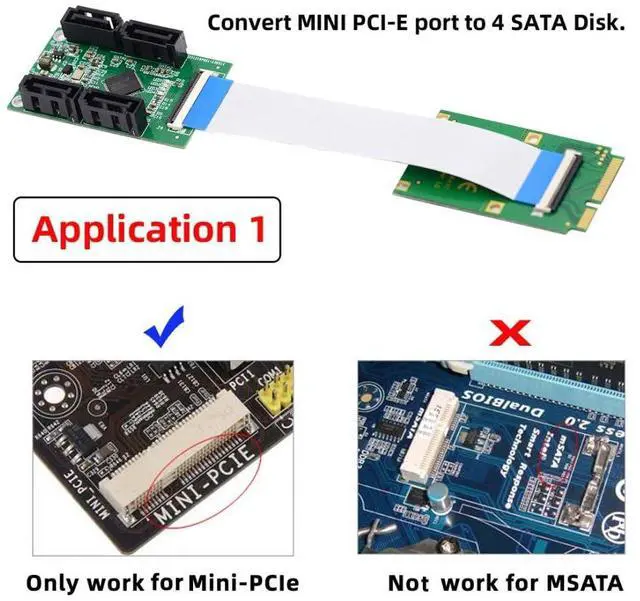

Applicable slot1: MINI PCI-E (mSATA is not supported)

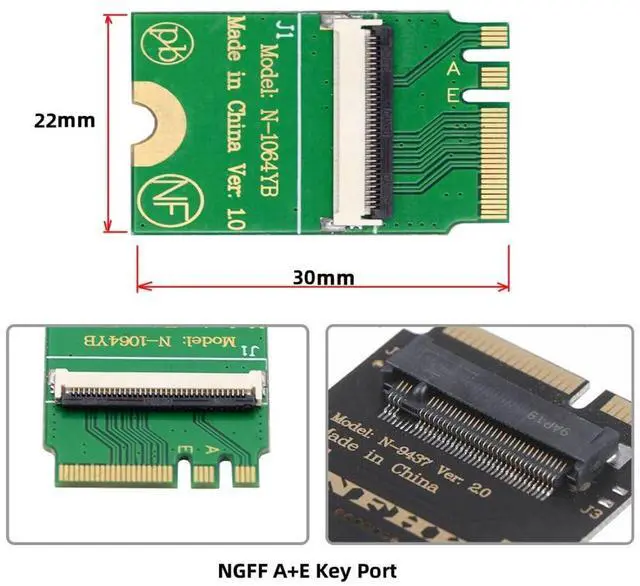

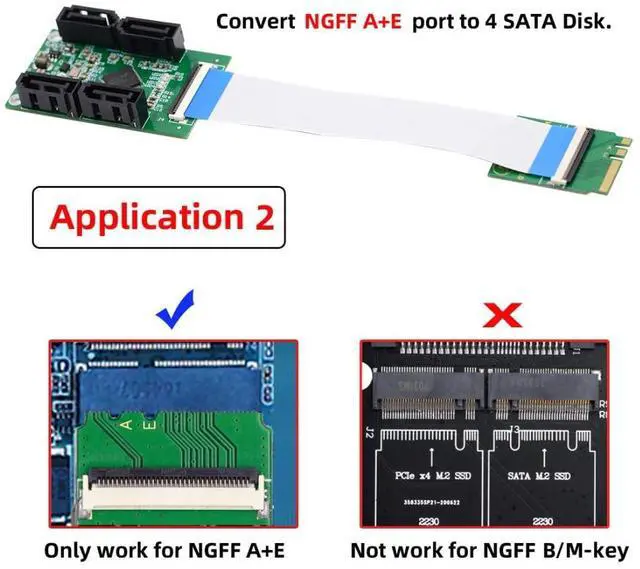

Applicable slot2: NGFF A+E key (B/M-Key is not supported)
Main control chip: ASMedia ASM1064.
