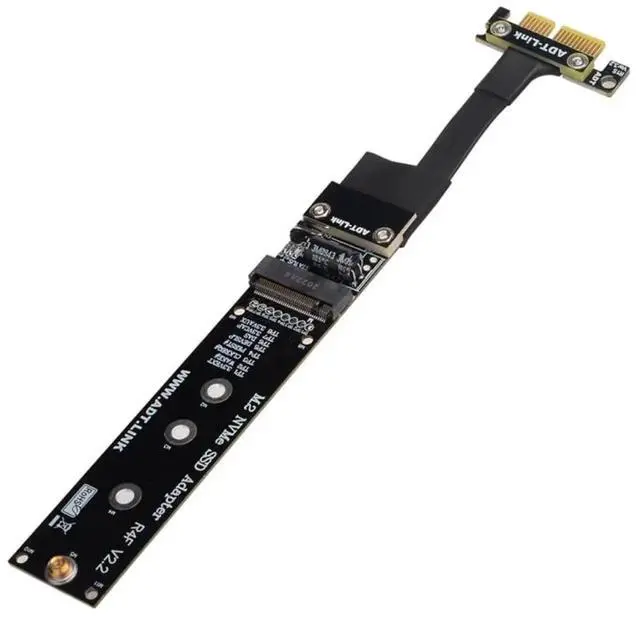

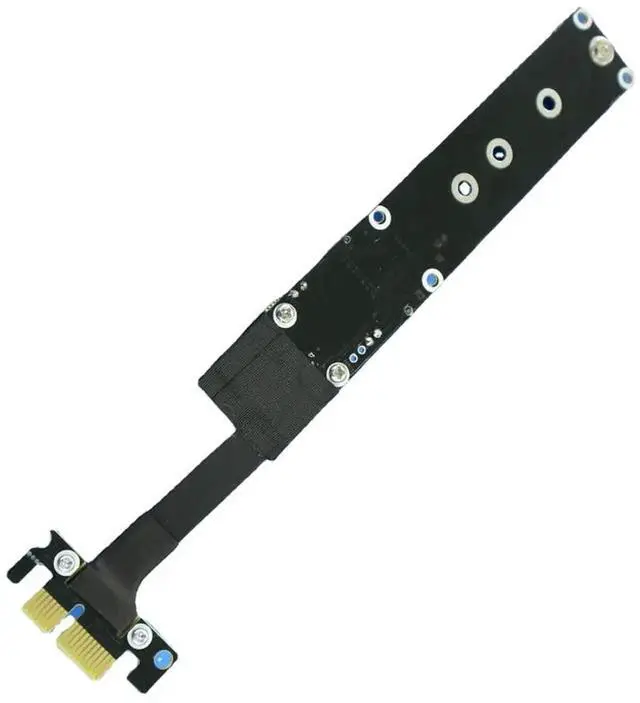

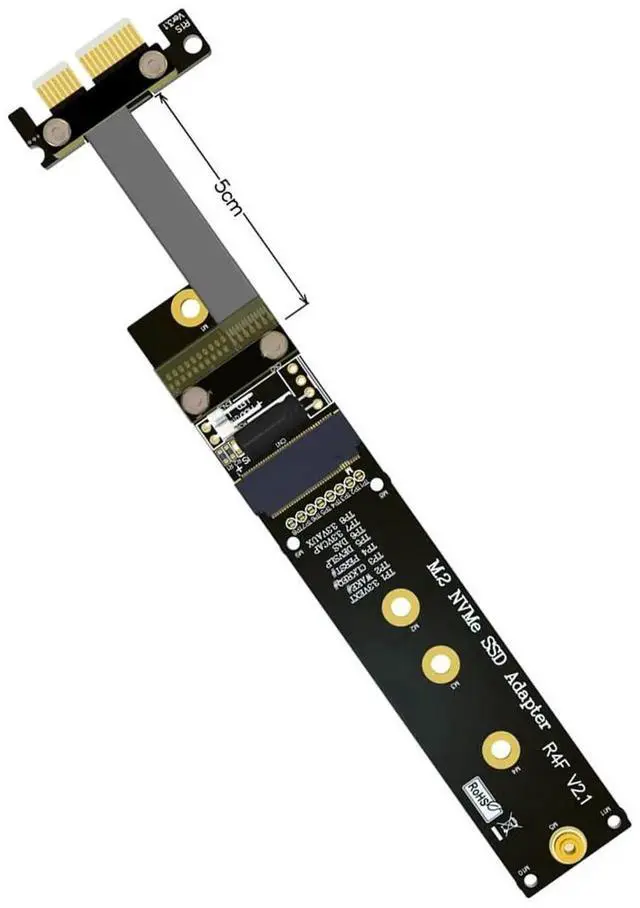

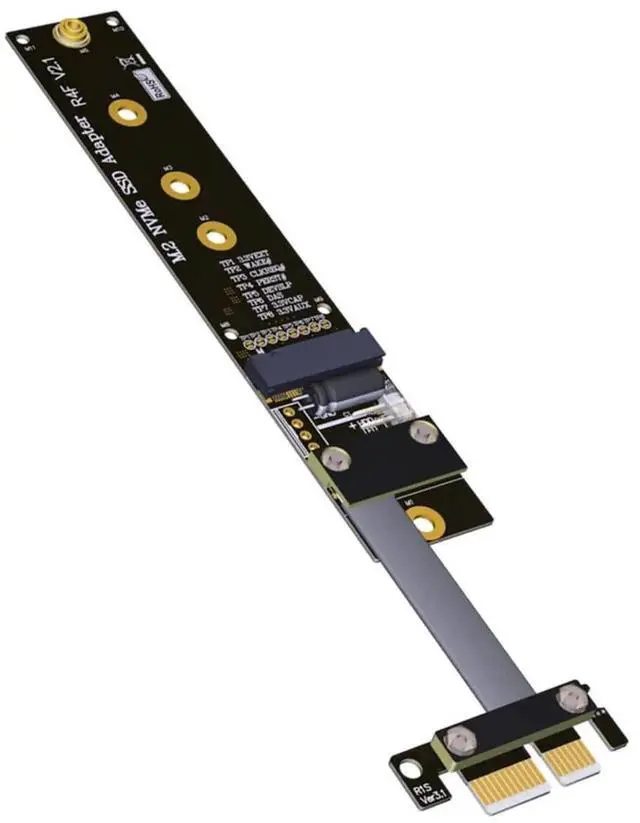

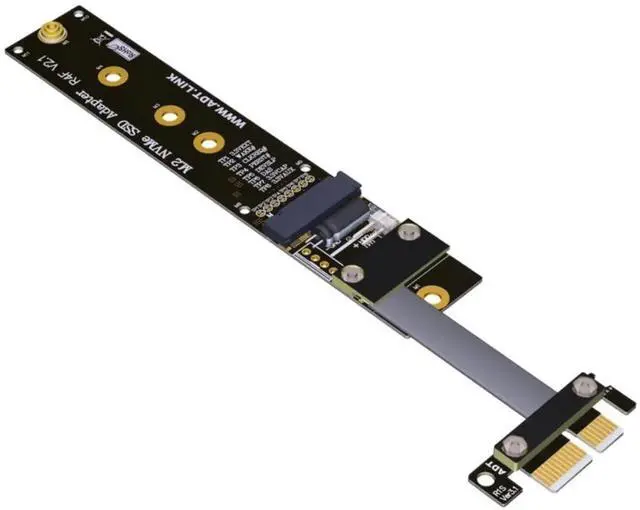

JAENFONG M.2 M Key NVMe SSD to PCI-e PCIe x1 Adapter Riser Card PCIe 4X to 1x Extension Cable Flexible Flat Cable PCI Express 1x Gen3.0 R14SF (15cm)
Limited time offer, ends 10/18 By Smart core

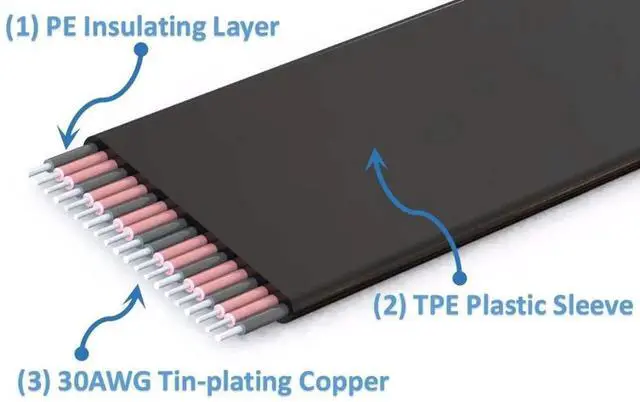

- M.2 NVMe to PCI-E X1 signal extension cable,using German patented imported cable, use Taiwan imported connector, support PCIe 3.0 8G/bps full-speed stable transfer.The PCB is designed with short and fattening, which will not get stuck on the graphics card. The fat and long design makes the board easier to install and reduces the chance of damage.
- Cable length advantage, from 3 cm to 1 meter can be customized, the cable length within 60 cm supports PCIe3.0 full speed.Speed bandwidth(Max.): PCIe3.0x1 gen3 8G/bps.
- Differential signal has no via hole design, there is no signal attenuation interference problem of parasitic capacitance and parasitic inductance, and there is no CAF micro short circuit phenomenon, and the product is durable.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product description:
Model: R14SF
Product name: M.2 NVMe to PCI-E X1 signal extension cable
Wire length: 3-100cm.The length of the wire refers to the part of the wire, excluding the PCB and the connector.
Gold finger and connector interface direction: x1 gold finger straight male head to M.2 keyM connector board female seat
Product function: M.2 NVMe hard disk adapter, PCIe signal high-speed transmission
Restrictions on use: Only for professional engineers to purchase. There are many compatibility problems with this product.Incorrect assembly or improper operation will burn your equipment.It cannot be used for general purposes.
Note:
1. Be sure to recognize the direction when plugging in, do not plug it in reverse or off-position to prevent burning of the device. When plugging in, first hold the socket of the device before plugging in to avoid inserting the socket pins with excessive force.It is forbidden to bend or pull within 2cm of the welding place between both ends of the wire and the circuit board.
2. The signal driving ability of various motherboards and equipment is different. As long as the extension cable is connected, the signal will be lost.
3. The graphics card or motherboard is an electronic device that will age and oxidize with time. Connecting an extension cord will only make it more unstable. Old devices what are more than three years are not supported.
