Dual mSATA + NGFF B+M Key SSD RAID Bridge Card, JBOD RAID0 Span Converter to Standard 2.5 Inch SATA Combo Hard Drive Enclosure, SATA III 6Gbps Storage Adapter

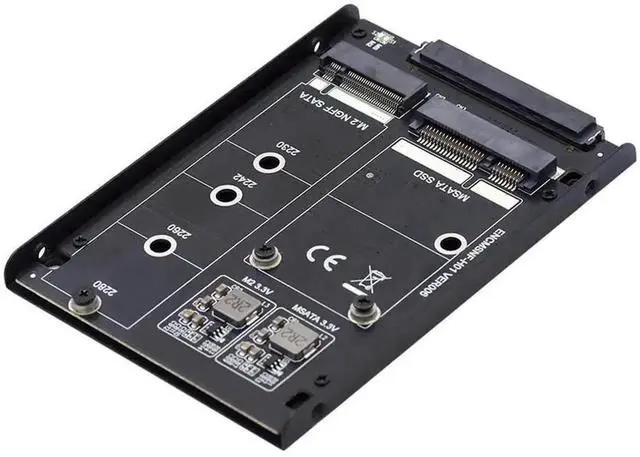

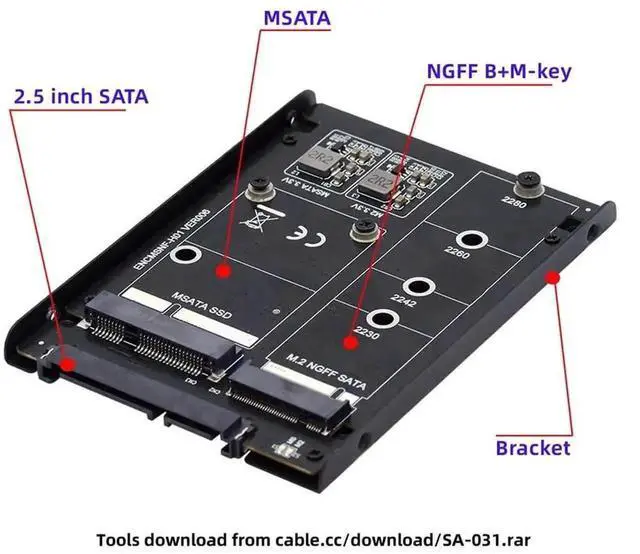

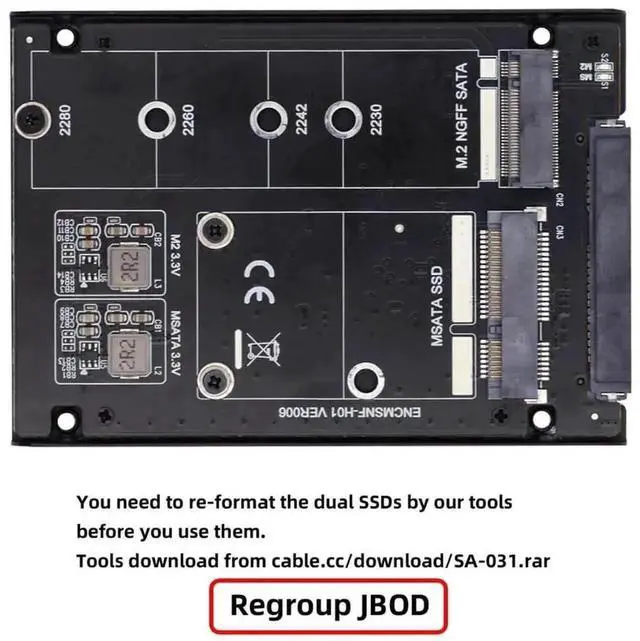

This dual storage bridge adapter integrates an mSATA slot and an NGFF B+M Key M.2 SATA slot, converting two different small form-factor SSDs into a single standard 2.5-inch SATA hard drive module for easy installation inside PC, notebook, NAS and storage enclosures.

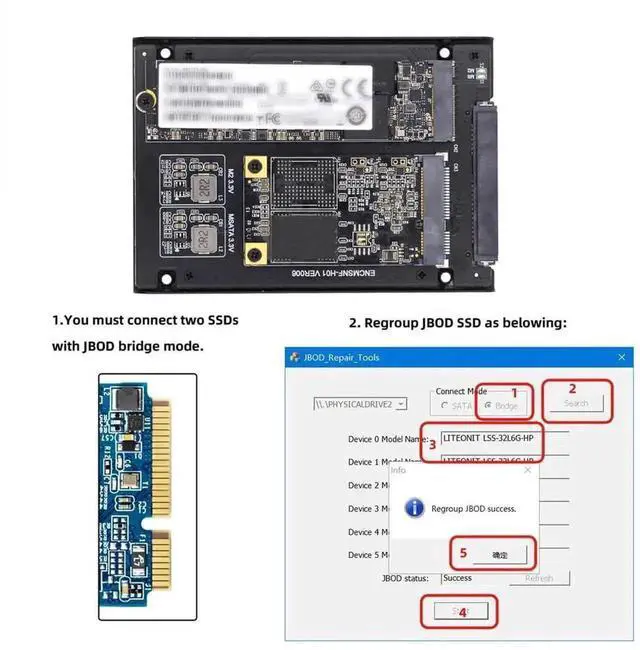

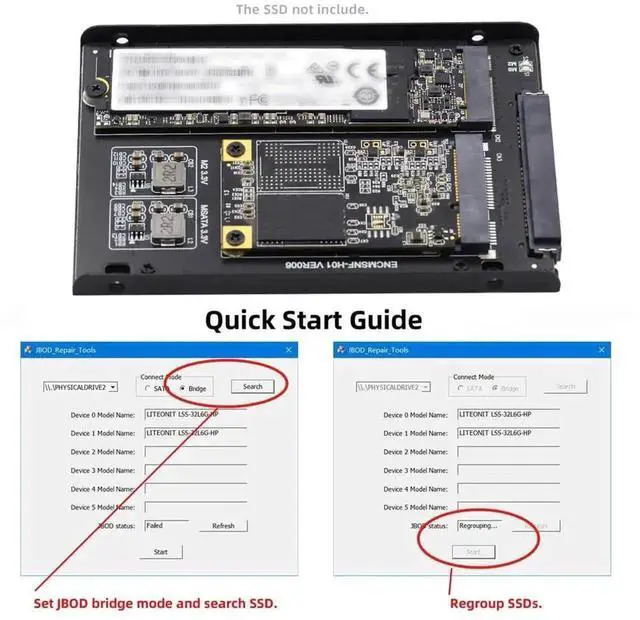

Equipped with an integrated hardware RAID controller, it supports three working modes to meet diverse storage demands: RAID 0 stripes two SSDs to double transmission speed for video editing and gaming; JBOD mode recognizes two SSDs as separate independent disks for individual file storage; BIG Span mode combines two drives into one large single logical volume for expanded total capacity.

It fully conforms to SATA III 6Gbps transmission standard, delivering stable high-speed data flow without bandwidth bottlenecks. The whole PCB adopts standard 2.5-inch hard disk size, perfectly matching all mainstream 2.5 SATA bays without additional mounting brackets. Gold-plated contact pins reduce signal attenuation and poor contact issues for long-term stable 24/7 operation.

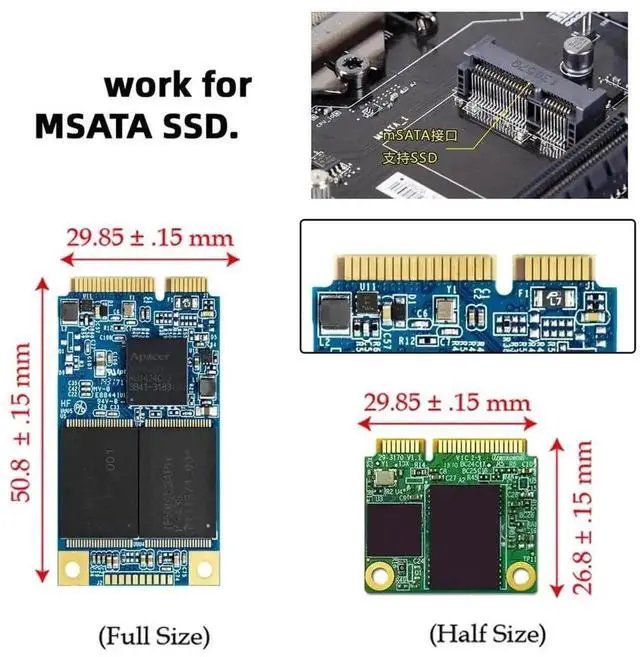

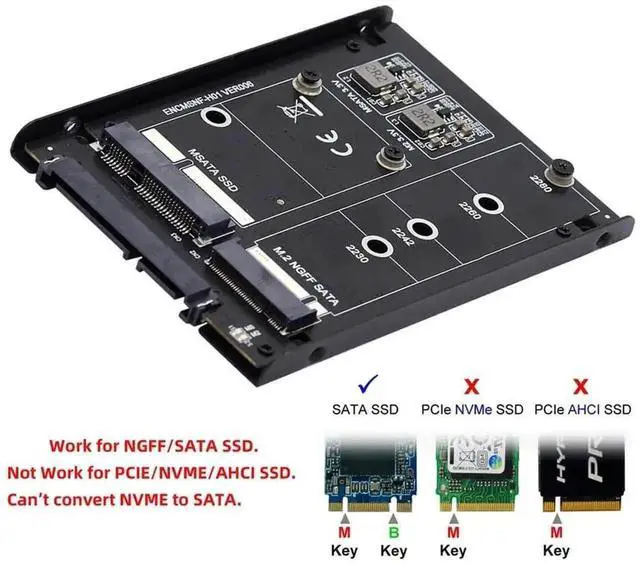

Only compatible with SATA protocol mSATA and B+M Key NGFF M.2 SSDs; it does NOT support NVMe M-Key SSDs. Compatible with Samsung, WD, Crucial, Kingston, SK Hynix, ADATA and other mainstream SSD brands, works seamlessly on Windows, Linux and macOS systems without driver installation. Ideal for old hardware storage upgrade, SSD capacity expansion, media server assembly and DIY low-cost high-speed storage construction.
