M.2 M-Key NVMe SSD to PCIe x1 Riser Adapter Card, PCIe 4x to x1 Flexible FFC Extension Cable Gen3.0 Model R14SF, 15cm Length

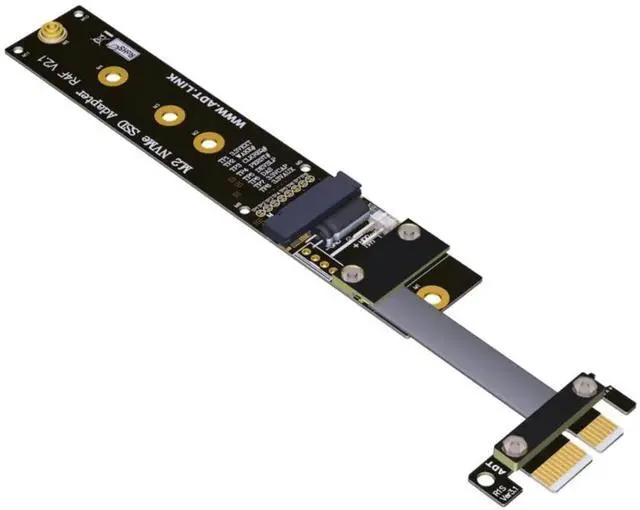

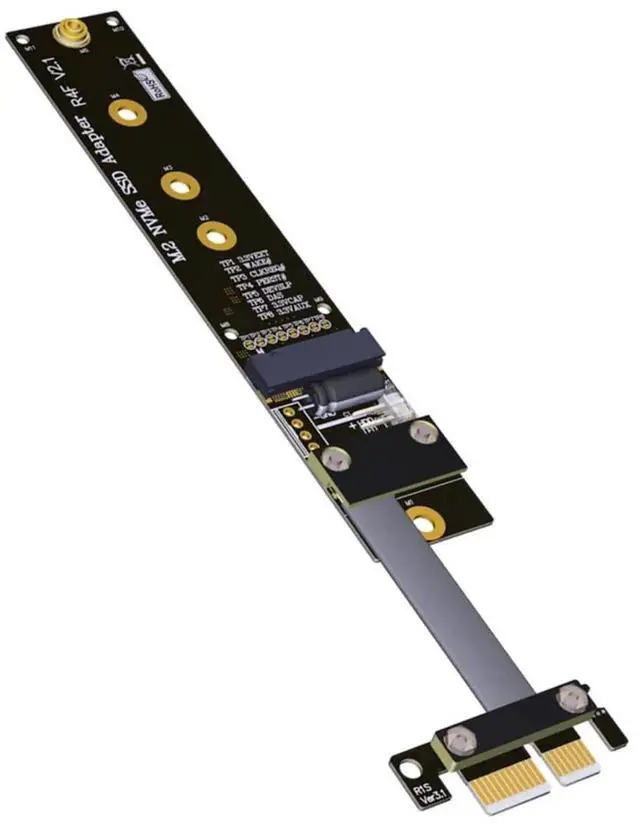

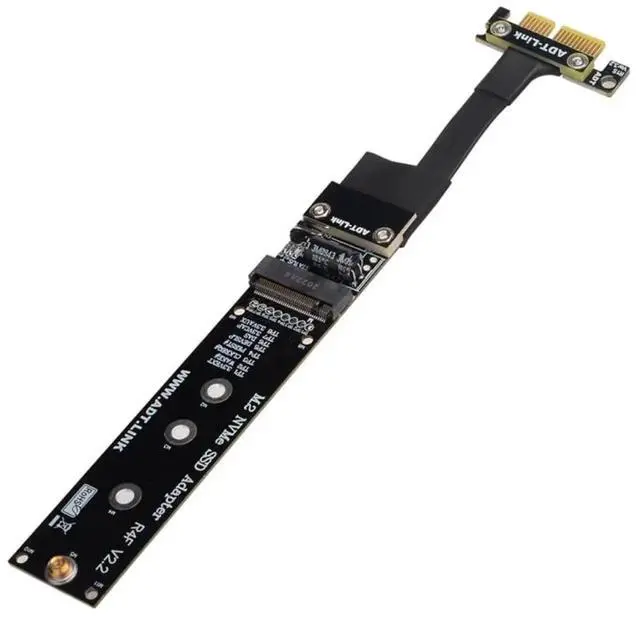

This M.2 NVMe riser set consists of an M-Key M.2 adapter board and a 15cm R14SF flexible flat FFC extension cable, converting M.2 NVMe SSD signal to standard PCIe x1 slot for flexible internal hardware layout adjustment.

The adapter board is equipped with an M-only key slot, supporting mainstream 2230/2242/2260/2280 NVMe PCIe solid state drives, and does not recognize SATA protocol M.2 SSDs. It follows PCIe Gen3.0 x1 transmission specification to deliver steady data throughput, suitable for mini PC storage upgrade, low-profile workstation refit and eGPU external graphics expansion.

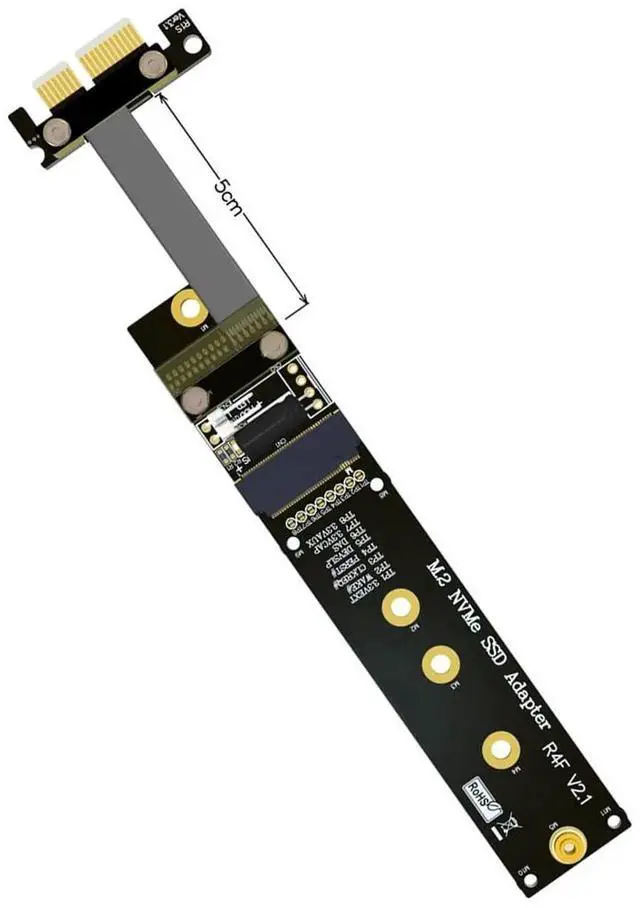

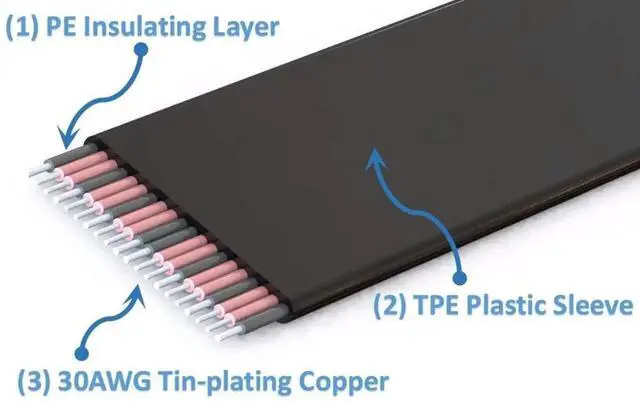

The matched ultra-thin flat FFC cable features excellent bending resistance, which can be freely arranged in limited narrow space of small form factor chassis without occupying extra installation space. The total cable length is 15 centimeters, providing sufficient routing margin while keeping internal wiring neat to improve airflow and heat dissipation.

Gold-plated contacts are used on all interfaces to reduce signal attenuation and poor contact issues for long-term stable operation. No complex BIOS modification required; simply plug the riser into motherboard PCIe x1 slot and insert NVMe SSD, complete simple driver installation to get recognized on Windows and Linux systems.

Ideal hardware modification accessory for mini ITX hosts, compact HTPC, DIY portable workstations and low-profile NAS devices with limited built-in M.2 slots.
