8 Port SATA 3.0 PCIe Storage Expansion Card, Marvell 88SE9215 Chip with Aluminum Heatsink, Low Profile Bracket, 6PCS Black 90-Degree SATA Cables, Supports Bootable System Disk for HDD & SSD

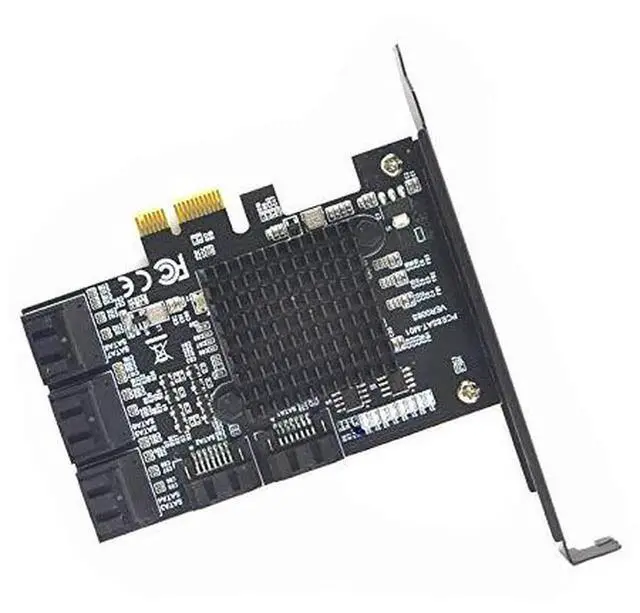

This 8-port SATA 3.0 PCIe expansion card uses mature Marvell 88SE9215 control chip to add eight independent high-speed SATA 6Gbps ports, perfectly solving the problem of insufficient native motherboard SATA interfaces for multi-drive storage expansion.

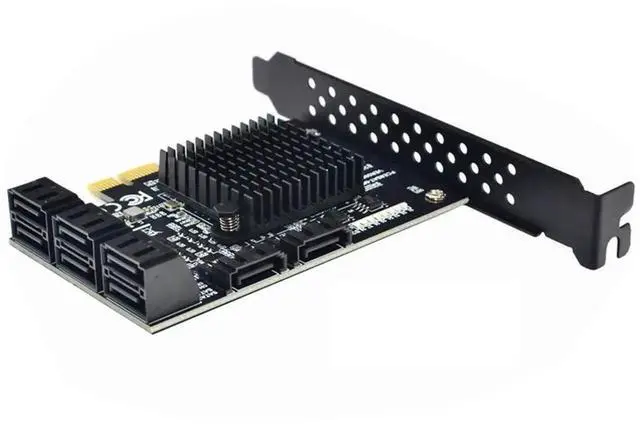

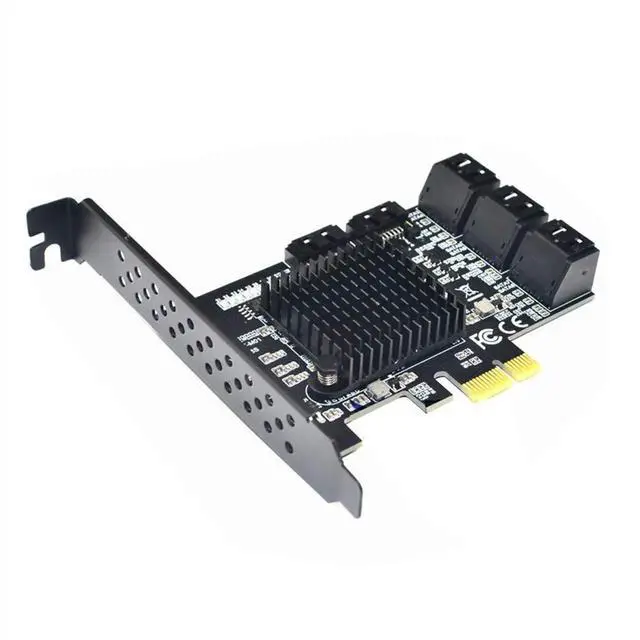

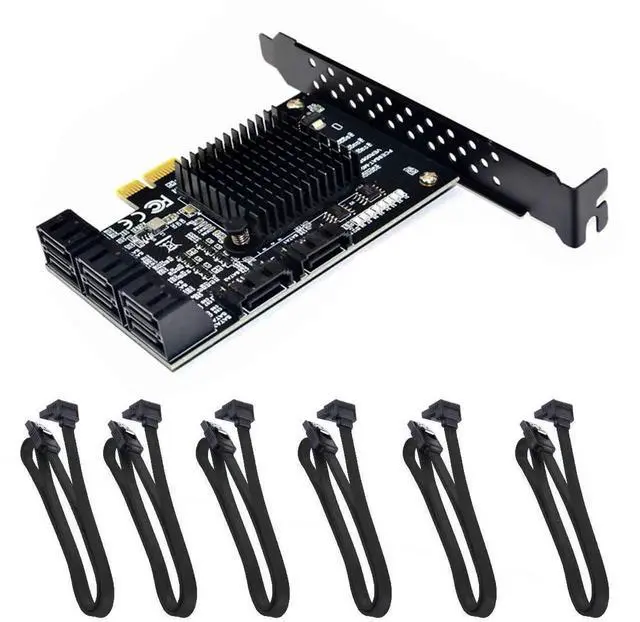

An integrated solid aluminum heatsink is mounted on the main chip for continuous heat dissipation, ensuring steady 24/7 operation when multiple hard disks work together. The package comes with 6 black 90-degree elbow SATA cables; the right-angle design saves internal chassis space and avoids cable breakage caused by sharp bending in compact mini cases. Besides the standard full-height bracket, an extra low-profile half-height bracket is provided to fit slim desktops, mini workstations and compact rack servers.

This expansion card supports booting operating systems directly from hard drives connected to its SATA ports, without complex BIOS adjustments for system disk deployment. It is fully compatible with all SATA storage devices including mechanical hard drives, solid-state SSDs and DVD optical drives, and works normally on PCIe 2.0 and PCIe 1.0 expansion slots for wide hardware adaptability.

Mainstream operating systems such as Windows 10/11 and multiple Linux distributions support plug-and-play without tedious driver installation. It is a cost-effective storage upgrade option for media servers, surveillance recording machines, self-built NAS, video editing workstations and small enterprise multi-disk data storage arrays.
