1080P HDMI KVM Fiber Extender Video Resolution Up to 2K@60Hz HDMI to Fiber Converter Transmission Distance Up to 20km 4.25Gbps Support USB Mouse Keyboard RS232 GPIO Signal Bidirectional Stereo Audio

Support USB KVM
The HDMI KVM Fiber Converter with USB keyboard and mouse signal transmission function, you can control the PC, laptop or other devices with USB Mouse and Keyboard from remote end

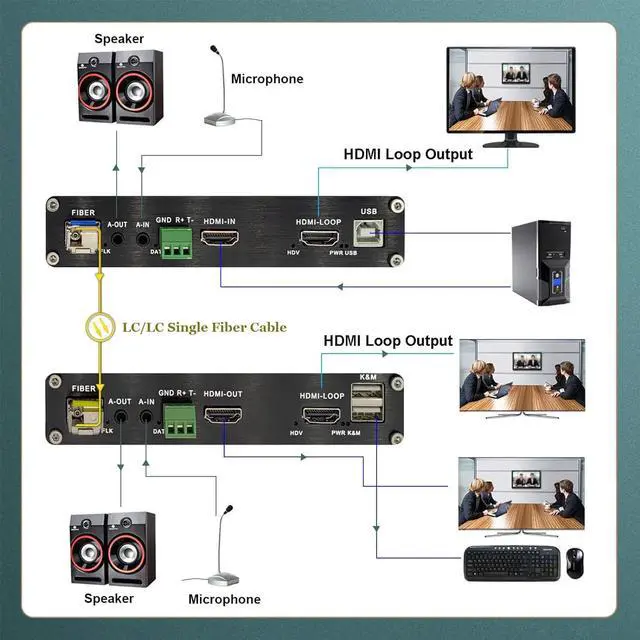

Usage scenariosKVM Extender is simple to install, plug and play, it can be used for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security. It can be used in security surveillance, company Office, video conference, school teaching, medical treatment, home theater and so on



Transmits HDMI video signals and audio up to 20km over a single fiber optic cableThe LNK-KVM-HDMI-1D1BA1GO Fiber optic extender provides extension of HDMI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, KVM, RS232, GPIO signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Product Features: Transmits HDMI video signals and audio up to 20km over a single fiber optic cable;
Support video resolution up to 1920*1200P@60Hz; Special support 1600*1200 @60HZ
Support USB keyboard and mouse signal transmission;
Support external stereo audio bi-directional transmission;
Support RS232 signal unidirectional transmission, baud rate self-adaptive;
Support general-purpose input/output (GPIO) signal;
Compliance with HDMI 1.4 and HDCP 1.2 standard;
High compatibility, auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
Built-in ESD protection system;
Simple to install, plug and play Aluminum housing, sturdy and durable.
Operating: -5 ~ +70
Humidity: 5% ~ 90%
for harsh environments

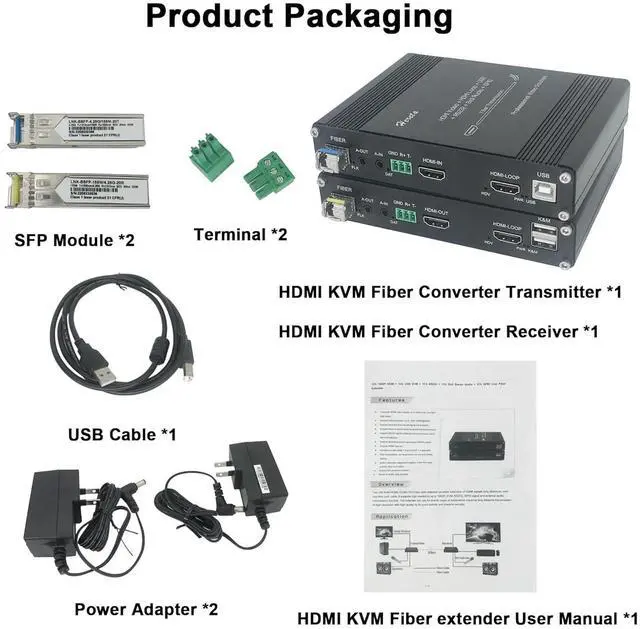

Package List: HDMI KVM Optical Fiber Transmitter. 1 PCS
HDMI KVM Optical Fiber Receiver...... 1 PCS
SFP Optic Module ( 4.25G bps, 20km, LC Port) 2 PCS
USB Cable.. 1 PCS
Power Adapter ( 12V). 2 PCS
User Manual. 1 PCS

Specification Standards
HDMI 1.4B 3D; HDCP 1.4
Video Compliant
1080P@50/ 59.95 /60Hz ( Max 1920*1200@60Hz) 1080P@24/ 29.97 /30Hz, 1080i@50/ 59.94 /60/Hz, 720P@24/ 29.97 /30Hz, 720P@50/ 59.94 /60Hz Special support 1600*1200 @60HZ
Video Connector
Female HDMI type A
HDMI Cable Range
<5Meter (Resolution up to 1920*1200@60Hz)
Audio Interface
3.5MM stereo audio
Optical Fiber Interface
SFP model LC connector
Fiber type
Single-mode
KVM Interface
To PC: USB (Type B) To keyboard and mouse: USB-A
GPIO Interface
Industrial terminal
RS232 Interface
Industrial terminal
RS232 Signal direction
Unidirectional
RS232 Baud rate
Self-adaptive, Max115200bps
RS232 Data bits
8
Power supply
The power adapter: DC 12V
