XDUOO XD05 BAL USB DAC ES9038Q2M *2 Decoder Bluetooth 5.0 APTX LDAC 32Bit 768KHz DSD Headphone Amplifier AMP XMOS XU208

>Support Hi-res Wireless codecs such as LDAC, aptX HD, aptX LL, and more.
>Two-level Gain switch (+6dB/+15dB).
>AES/Co-axial/Optical input options.
>USB Type-C input support.
>Aux Input.
>6.35mm Single-ended headphone output.
>4.4mm Balanced headphone output.

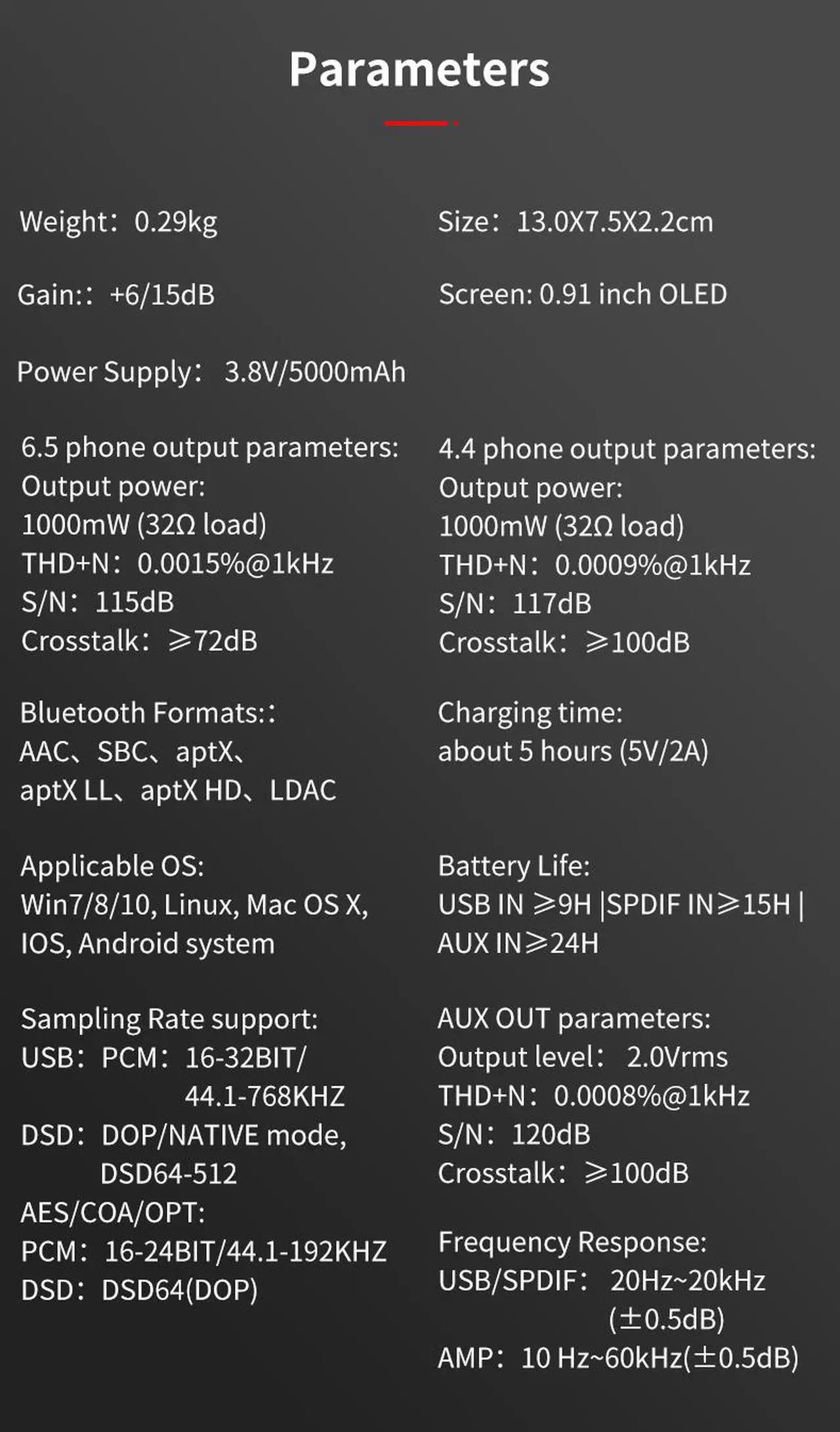

Technical Specifications:-
>Battery: 3.8V/5000mAh.
>Battery Life: USB IN: up to 9 hours, SPDIF IN: up to 15 hours, Aux IN: up to 24 hours.
>0.91” OLED Display.
>Supports Android/iOS devices, Windows/MAC systems.
>Frequency Response Range(USB/SPDIF): 20Hz-20kHz.
>Frequency Response Range(AMP): 10Hz-60kHz.



>Sampling Rate Support(USB): PCM up to 32-Bit/768kHz, DSD up to DSD512 natively.

>Sampling Rate Support(AES/Optical/Coaxial): PCM up to 24-Bit/192kHz, DSD up to DSD64.



>Output Power(6.35mm): up to 1000mW(32O).
>THD+N(6.35mm): 0.0015%@1kHz.
>SNR(6.35mm): 115dB.
>Crosstalk(6.35mm): =72dB.
>Output Power(4.4mm): up to 1000mW(32O).
>THD+N(4.4mm): 0.0008%@1kHz.



>SNR(4.4mm): 117dB.
>Crosstalk(4.4mm): =100dB.
>Output Level(Aux): 2.0Vrms.
>Size: 13cmx7.5cmx2.2cm.
>Weight: 0.29Kg.



Powerful Dual DAC Chipset:-

xDuoo has equipped the XD-05 Balanced with a premium Dual DAC chipset featuring 2xES9038Q2M DAC chips. It provides outstanding hi-res audio signal decoding with super-clean background and ultra-low distortion. The DAC chip is paired with a premium XMOS XU208 USB signal receiver chip providing hi-res signal decoding up to 32-Bit/768kHz and DSD512 natively.



Seamless Wireless Connectivity:-

Featuring the flagship CSR8675 Bluetooth signal chip from Qualcomm, the xDuoo XD-05 Balanced provides a seamless wireless Bluetooth V5.0 connectivity with hi-res codecs support such as LDAC, AptX HD, AptX LL, AptX, and many more.



Powerful Balanced Output:-

xDuoo XD05 Bal as the name suggests features a fully balanced 4.4mm headphone output port. The device is equipped with a premium OP+BUF amplifier circuit providing a whooping 1000mW power at 32O of load. This much power is more than enough to power your power-hungry headphones and makes them shine with all their glory. With the balanced headphone output, the S/N and dynamics are greatly improved. Along with this balanced headphone out port, the XD-05 Bal also features a single-ended 6.35mm headphone output.

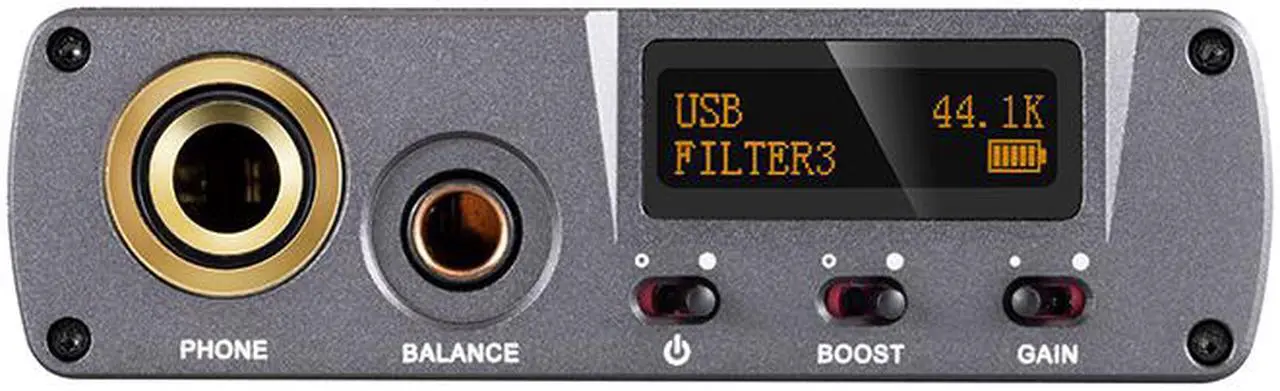

OLED Display, Gain Switch, & Other Features:-

The XD05 Bal houses plenty of more features such as OLED display, Digital Decoding Filters, Boost switch, two-way gain(+6/+15dB), premium build quality, and much more.




Bare machine size/weight (net weight)
13*7.5*2.2CM
0.29kg



Package size/weight (gross weight)
25*16*5cm
0.8kg

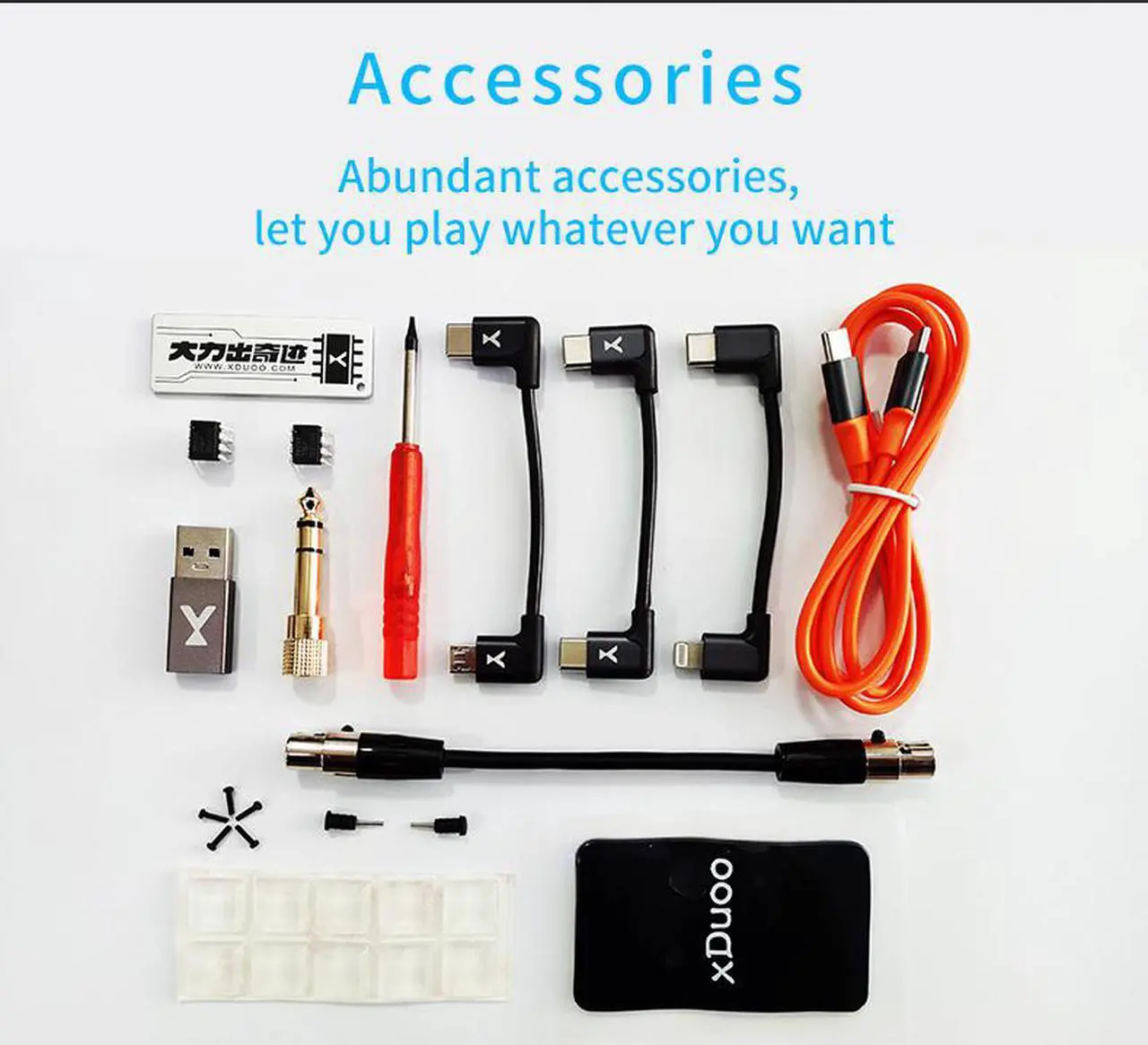

Accessories in the package:
Dual-head Type-C charging/data cable*1
USBA to c? adapter,
Double-head Type-c OTG cable*1
Lightning to Type-C OTG cable*1
AES line*1
6.5 to 3.5mm headphone plug*1
Op Amp Chip *2
Screwdriver*1
Screw *5
Silicone foot pad*10
Guangli Adhesive Sticker*1
User Manual *1
Warranty card*1
