Processor
Intel Core i5-1145G7E (4C / 8T, 1.5 / 4.1GH z,
8MB)
Graphics
Integrated Intel Iris Xe Graphics
Chipset
Intel SoC Platform
Memory
1x 8GB Soldered DDR4-3200
Memory Slots
Memory soldered to systemboard, no slots,
dual-channel
Storage
256GB SSD M. 2 2280 PCIe x4 NVMe Opal
Speakers
Internal Speaker
Camera
Integrated Camera
Microphone
8x, Array
Power Supply
135W 89% Adapter
CONNECTIVITY
Ethernet
Integrated 100/1000M
WLAN + Bluetooth
Intel Wi-Fi 6E AX210, 802.11 ax 2x2 + BT 5.0,
vPro
Rear Ports
1x USB-C 2.0 (display only)
1x USB-C 3.2 Gen 1
2x USB 3.2 Gen 1
1x HDMI-in
2x HDMI-out
2x Ethernet (one supports POE, one with
vPro)
DESIGN
Display
10.1" Display on ThinkSmart Controller
Touchscreen
10-point Multi-touch
LED indicators
LED Clock on right bottom
LED RGB Light bar, indicates power and
communication states

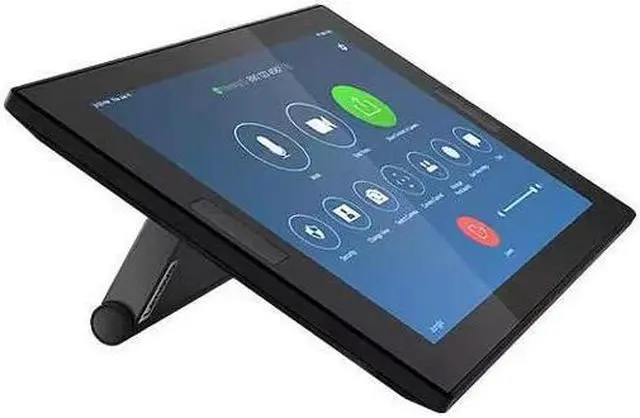

Controller
ThinkSmart Controller
Case Color
Black
Dimensions (WxDxH)
ThinkSmart
controller | 265.5 x 13 x 168.1 mm ( 10.5 x 0.5 x 6.6 inches)
ThinkSmart One (Bar Only) | 700 x 89 x 115
mm ( 27.56 x 3.5 x 4.53 inches)
