Question 1

Can this case fit a Corsair H80i v2 (with both fans)?

Accepted Answer

Yes it will. Thats exactly how I setup mine. Keep in mind though that no matter how you setup your build, the GPU will still heat up AF when you game. I setup mine with temp limit via Afterburner to avoid overheating.

Question 2

Do you have to use the PCIe extension cable with it? The reviews state it has problems. Can I just plug my GPU directly into the PCIe 3.0 x16 slot on the motherboard instead, so I don't encounter these problems?

Accepted Answer

Yes you have to use the PCIe extension cable, the way the case is designed it is required, now with that being said, I believe Phanteks realized this issue and is now sending out a more robust PCIe extension cable with it. I just received mine 2 weeks ago and it was pretty sturdy. Just don't bend it too much and you should be fine.

Question 3

Will this fit a Zotac 1080 Ti AMP Extreme?

Accepted Answer

No it will not fit the zotac 1080 Ti amp extreme is a 2.5 slot card the shift and shift X can only fit a 2 slot card and even then the card  is close to the glass

Question 4

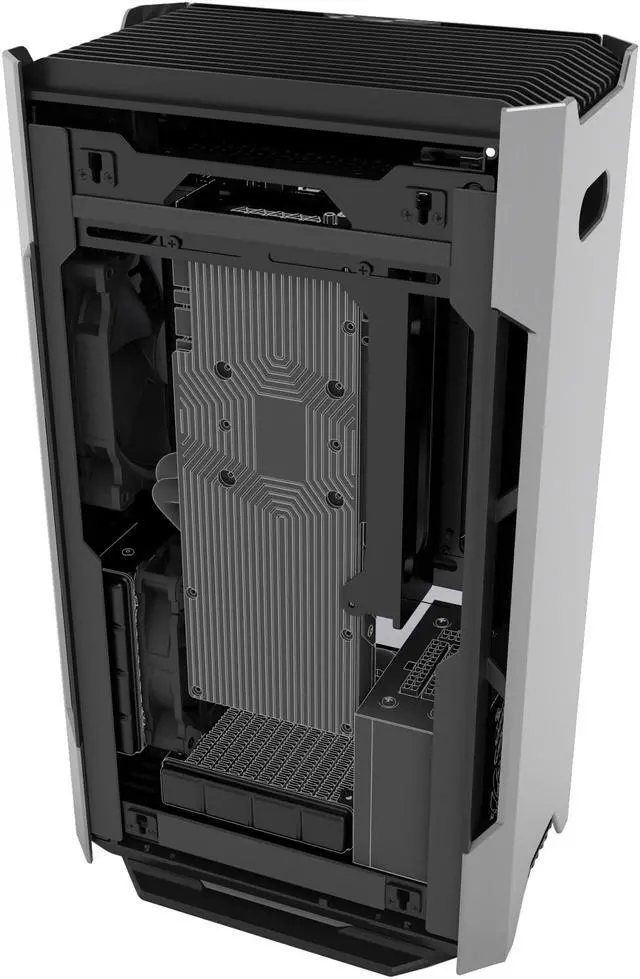

What's the largest 2-slot GPU this case can handle?  I would like to install a 11.80" x 5.62" LxH GPU inside but can't tell if it would fit.

Accepted Answer

It should be able to fit, it might be a bit tight depending on what you use the bottom space though for instance bellow the gpu you at most might have about 2 inches of space left bellow and it might be a tight fit for stuff under it, and it would probably be really close if not maybe touching your psu, like it should fit but it would be a tight fit

Question 5

What is the length of the PCIe extender/riser cable (total and/or just wire portion)?

Accepted Answer

The extension is just long enough for the slot to loop around to the other side of the case (about 5-6 inches?) the cable is not flexible at all and i wouldn’t recommend bending it too much.

Question 6

Can I put the DIY water cooling in it? thanks

Accepted Answer

If you're extremely experienced you could potentially fit a pump off of a 120mm rad and fan with a custom mount but it would be extraordinarily right. Shift x is made for custom loops.

Question 7

how long do the CPU cooler tubes for an AIO have to be? im going to use the nzxt kraken m22 120mm

Accepted Answer

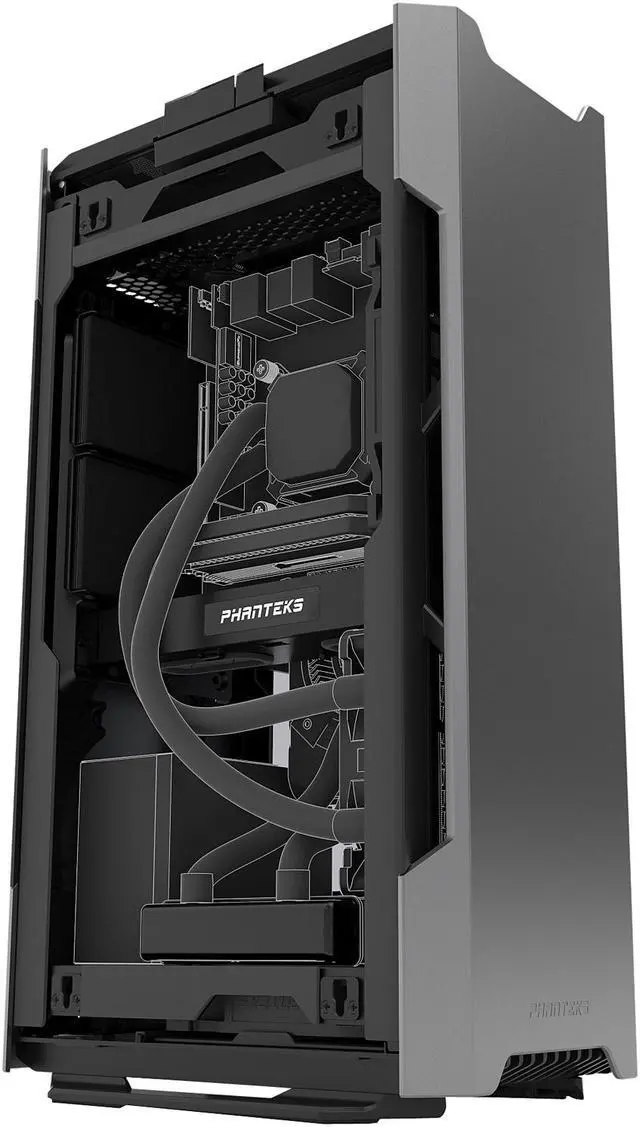

I used a Corsair cooler (which has been working great) and mounted the radiator at the bottom. I had to shape the coolant lines in the shape of a question mark and carefully press them flat to get the glass panel to close. The lines on the Corsair are about 14" long and it just about makes it. Check the Kraken and make sure you have at least this much.

Question 8

what are the exact internal measurements for the motherboard clearance? I have a mobo that's a pinch wider than standard mini-itx by a few millimeters

Accepted Answer

CASE SPECIFICATIONS
Dimension 170 mm x 470 mm x 274 mm
(WxHxD) 6.7 in x 18.5 in x 10.8 in
Heighth incl. Feet 484 mm (19.1 in)
Form Factor Small Form Factor
Materials Anodized aluminium panels
 Powder coated steel chassis
 Tempered glass side panels
MB Support Mini ITX
PSU Support SFX
Front I/O 2x USB 3.0, Power button, RGB button
Side Window Yes, Tempered glass both sides
CLEARANCE
CPU Cooler 82 mm (3.2 in)
Graphics card length 350 mm (13.8 in)
Bottom Radiator 55 mm (2.2 in)
PCI SLOTS & DRIVE BAYS
PCI slots 2
3.5” HDD 1x
2.5” SSD 2x (can be upgraded to 3 if no 3,5” is installed)
FAN 120 mm 140 mm
Front 2x 2x (1 installed)
Bottom 1x 1x
RADIATOR 120 mm 140 mm
Front 120 -
Bottom 120 -

Question 9

I know that the shift-x has room, but can the Shift fit a standard ATX power supply?

Accepted Answer

On the manual it only supports SFX

Question 10

Would the Phanteks Shift fit the MasterLiquid Lite ML120L RGB All-in-one CPU Liquid Cooler with Dual Chamber Pump by Cooler Master?

Accepted Answer

It was able to fit my push pull configurated LEPA 120 all in one. Hope this helps!

Case Specifications

Dimension	170 mm x 470 mm x 274 mm (W x H x D) 6.7 in x 18.5 in x 10.8 in
Height incl. Feet	484 mm (19.1 in)
Form Factor	Small Form Factor
Material(s)	Anodized aluminium panels Powder coated steel chassis Tempered glass side panels
Motherboard Support	Mini ITX
PSU Support	SFX, SFX-L

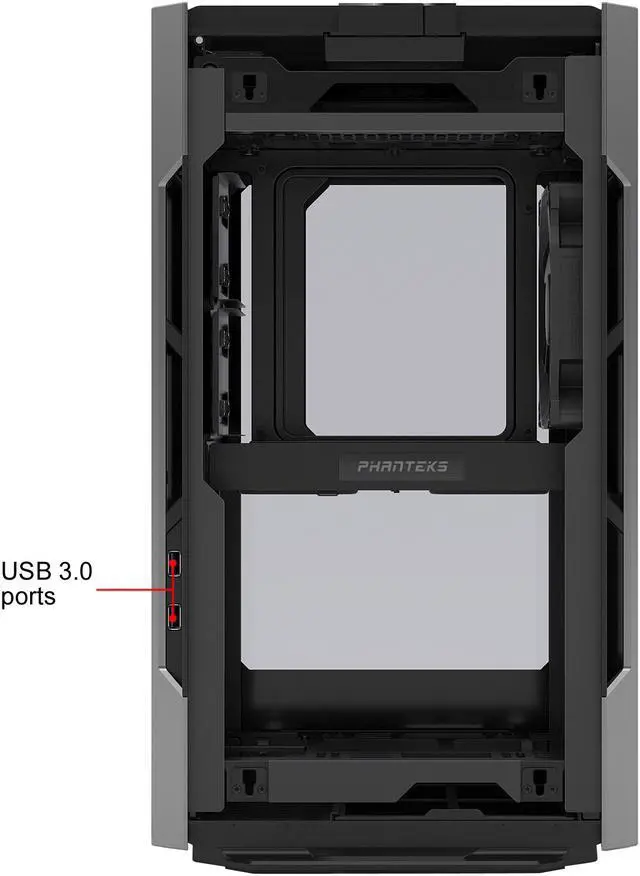

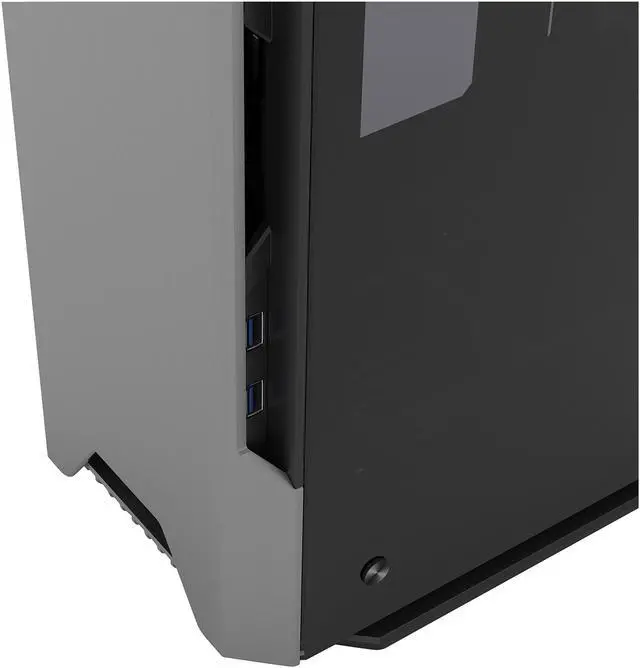

Front I/O	2x USB 3.0, Power button, RGB button
Side Window	Yes, dual Tempered glass

Expansion & Drive Bays

PCI slots	2
Internal 3.5"	1x
Internal 2.5"	3x (2 included)

FAN	120mm	140mm

Front	2x	2x (1 installed)
Bottom	1x	1x (1 installed)

RADIATOR	120mm	140mm

Front	120	-
Bottom	120	-
* For dual aio setup: max 120x27mm radiators.

INCLUDED ACCESSORIES

Premium 140 mm fan	1x
2.5" SSD bracket	2x
GPU bracket	1x
PCI-e x16 Riser cable	1x

CLEARANCE

CPU Cooler	82 mm (3.2 in)
Graphics card length	350 mm (13.8 in)
Bottom Radiator	55 mm (2.2 in)
* Depending on GPU height/length.

Packaging Information	PH-ES217XE

Net Weigth	6.6 KG
Gross Weigth	7.6 KG
Package Dimension	280 mm x 375 mm x 600 mm		11.0 in x 14.7 in x 23.6 in

Warranty

Length	5 Years Limited

Brand	Phanteks
Series	Enthoo Evolv Shift
Model	PH-ES217E_AG

Type	Mini-ITX Tower
Color	Anthracite Gray
Case Material	Anodized aluminium panels, Powder coated steel chassis, Tempered glass side panels
With Power Supply	No
Power Supply	Support SFX, SFX-L
Power Supply Mounted	Bottom
Motherboard Compatibility	Mini ITX
Side Panel Window	Dual Tempered glass
Dust Filters	Bottom / Side

Internal 3.5" Drive Bays	1
Internal 2.5" Drive Bays	3 (2 included, can be upgraded to 3 if no 3.5" is installed)
Expansion Slots	2

Fan Options	Front: 2 x 120mm or 2 x 140mm fan (1 x 140mm fan installed) Bottom: 1 x 120mm or 1 x 140mm fan
Radiator Options	Bottom - Up to 120mm / Front - Up to 120mm

Phanteks Enthoo Evolv Shift PH-ES217E_AG Anthracite Gray Anodized aluminium panels, Powder coated steel chassis, Tempered glass side panels Mini-ITX Tower Computer Case Support SFX, SFX-L Power Supply

Enthoo Evolv Shift

Learn more about the Phanteks PH-ES217E_AG

Customer Reviews of the Phanteks PH-ES217E_AG

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Max GPU Length	350 mm
Max CPU Cooler Height	82 mm
Max PSU Length	120 mm

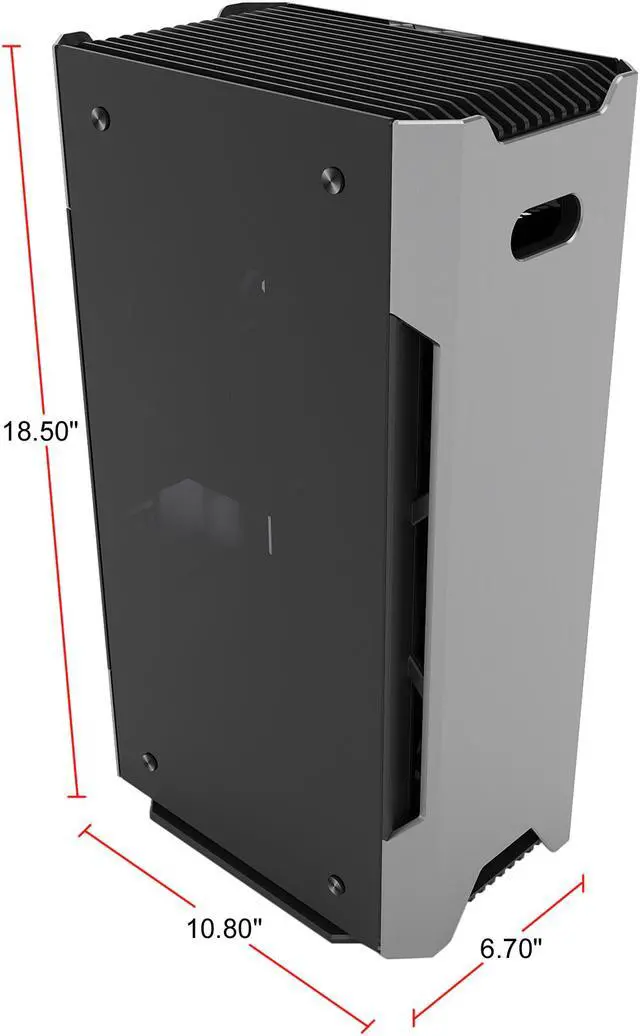

Dimensions (H x W x D)	18.50" x 6.70" x 10.80"
Weight	14.56 lbs.
