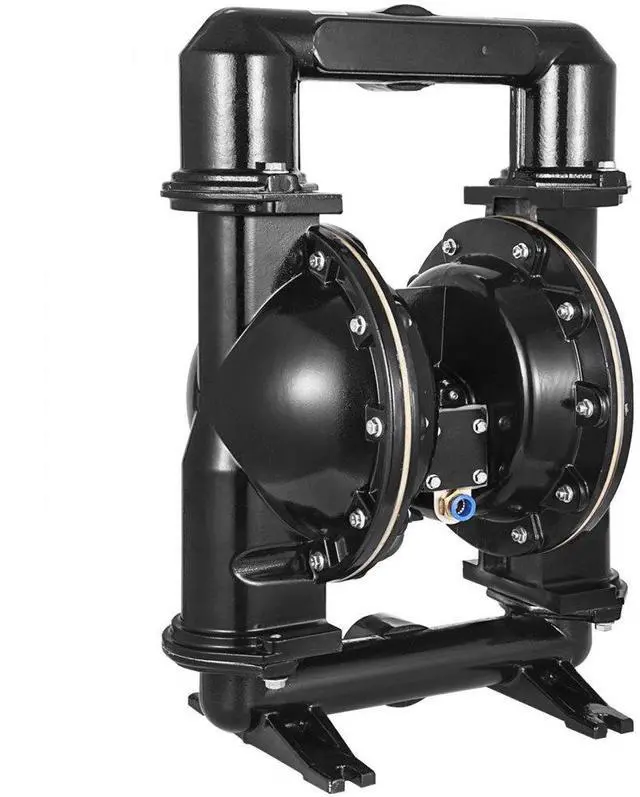

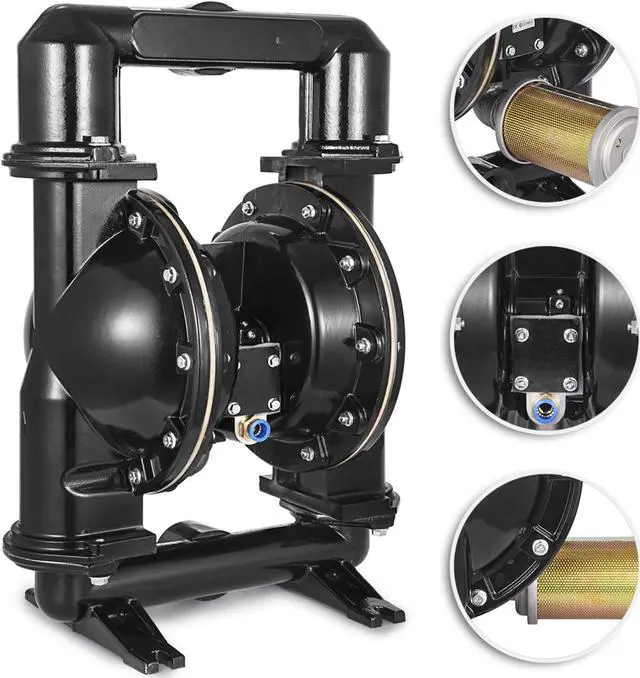

VEVOR Double Diaphragm Pump Air-operated Diaphragm Pump 140gpm 2" Outlet & Inlet

YBGMBQBY4-50L0001V0 Vevor Double Diaphragm Pump Air-operated Diaphragm Pump 140gpm 2" Outlet & Inlet, [MAIN PARAMETER]- Material Aluminum; Diaphragm Material Nitrile; Type Double diaphragm; Operation Type Air-operated; Inlet/Outlet Port Size/Standard 2 inch (50 mm); Air Inlet Size NPT 1/2 inch (12. 7 mm). [QUALITY PERFORMANCE]- Maximum Head 275. 59FT/84M, Max Pressure 120PSI. Max Temp 150 H. Top quality glyd ring, a double-acting seal that delivers better performance. 1/2 inch air inlet with NPT fitting uses standard shop air for easy operation. [UNIQUE DESIGN]- Features an externally serviceable air distribution system and all-bolted construction.

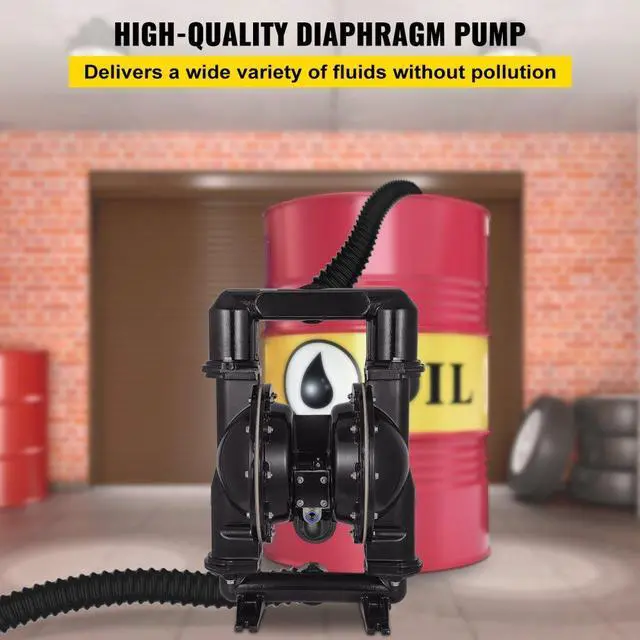

Modular air valve is stall-free, this low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes down time. [EXCELLENT CONSTRUCTION]- Rugged construction - resists corrosion for reliable performance and long life. Bolted construction is designed for leak-free fluid handling. [VERSATILE USE]- The diaphragm pump with convenient operating are widely used in various industries, such as petroleum, metallurgy, mining, coating material, printing, paper making, water treatment, automotive etc. High-Quality Diaphragm Pump This air-operated double diaphragm pump is constructed with high-quality aluminum with good abrasion resistance, chemical resistance, and heat resistance.

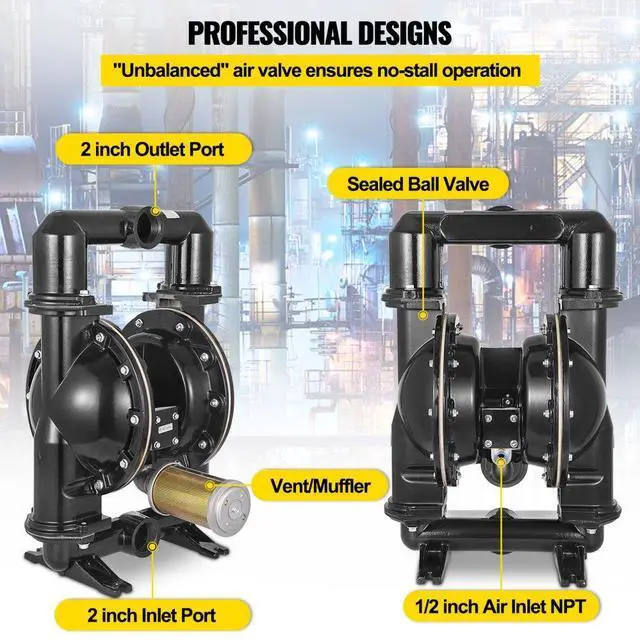

It is perfect for all your needs in every industry. Nitrile Double Diaphragm This double diaphragm pump boasts Nitrile diaphragm with max flow rate of 140GPM, Max head 275.59 ft, 2" Inlet/Outlets, an Air Inlet of 1/2" NPT. Conveying Materials Perfect for use with water. Ideal for use with low viscosity petroleum fluids including diesel, kerosene, motor oil and some waste oil. Sealed Ball Valve Easy access to ball checks and fluid caps for maintenance and repairs. Motor design delivers optimum air efficiency. "Unbalanced" air valve ensures no-stall operation.

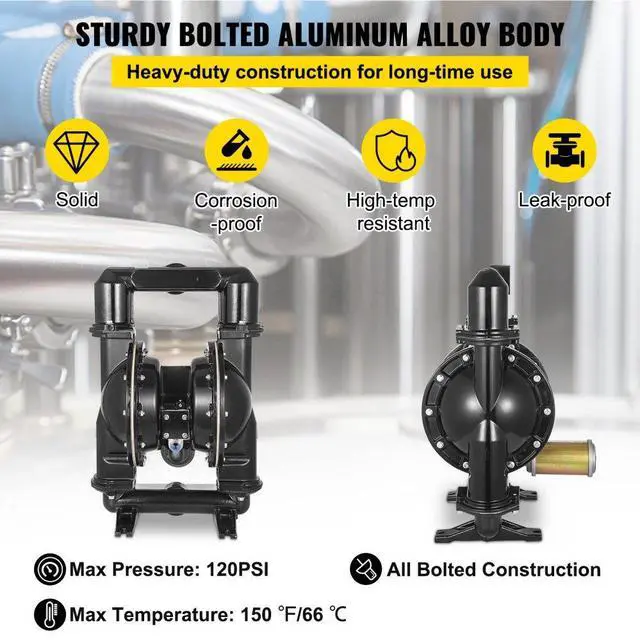

All-Bolted Construction This diaphragm pump is constructed with all-bolted construction for leak-fluid handling. Mounting brackets for convenient installation. Wide Application Can be widely used in Mining industry, pharmaceutical industry, construction industry, petrochemical industry, water treatment, etc. 140GPM Air-Operated Double Diaphragm Pump A diaphragm pump is a positive displacement pump that uses a combination of the reciprocating action of a rubber, thermoplastic or teflon diaphragm and suitable valves on either side of the diaphragm to pump a fluid. The listing is about 140 GPM air-operated double diaphragm pump with 2 Inch Inlet And Outlet.

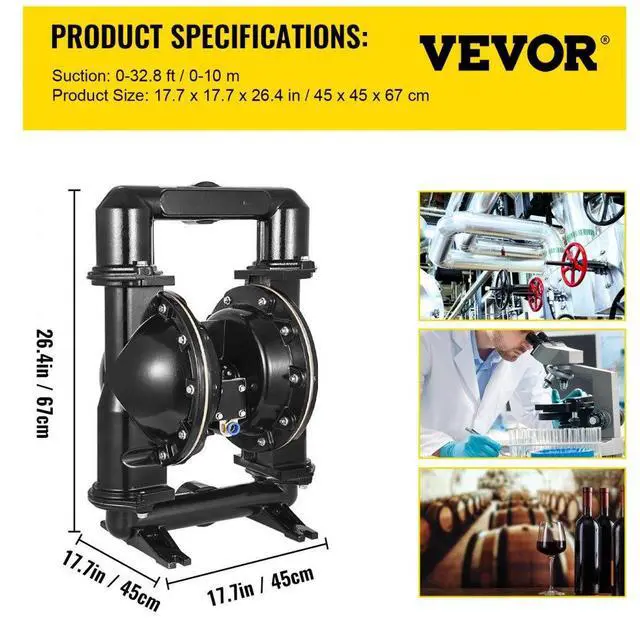

This powerful air-operated double diaphragm pump QBY4-50L features a 2in. inlet and 2in. outlet capable of pumping up to 140 gallons/min at temperatures up to 150 degrees F. Main Parameter Quality Performance Unique Design Excellent Construction Package ContentSpecification Type Air-operated Double diaphragm Diaphragm Material Nitrile Body Material Aluminum Inlet/Outlet Port 2 inch (50 mm) Air Inlet Size NPT 1/2 inch ( 12.7 mm) Max Flow Rate 36 m3/h (600 l/min) (140 GPM) Max Head 84 m ( 275.59 ft) Valve Type Ball Suction 0-5 m (0- 16.4 ft) Max Suspended Solids 3 mm (1/8 inch) Average Air Consumption 38 CFM Self-Priming Dry 3 m (10 ft) Self-Priming Wet 4.6 m (15 ft) Package Content 1 x Air-Operated Double Diaphragm Pump 1 x Product Manual
