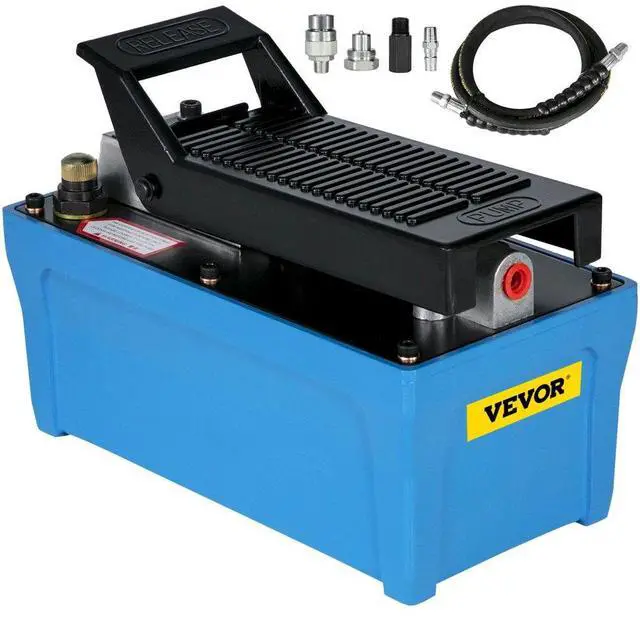

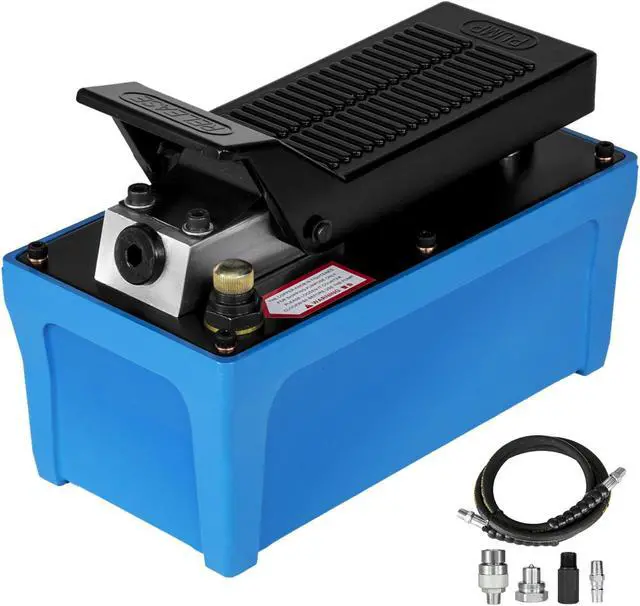

VEVOR 10000psi Air Hydraulic Foot Operated Pump With 6ft Hose Single Acting

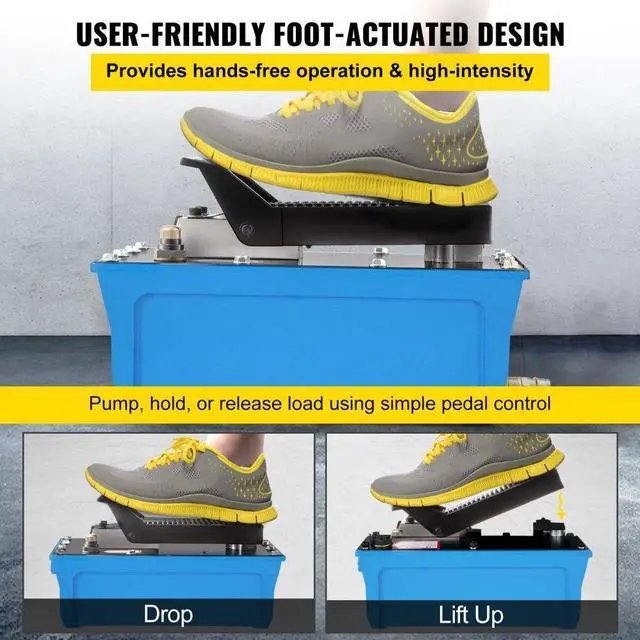

BTQBTYYJTBLSK0001V0 10000psi Air Hydraulic Foot Operated Pump With 6ft Hose Single Acting, [DURABLE MATERIAL]- Flow 0.85 liters ( 0.22 gallons) per minute; Max Input Air Pressure 120 PSI; Max Output Hydraulic Pressure 10, 000 PSI. The shell and pump core of this air hydraulic foot pump is built with high-quality material. Baked Powder TUFF COAT finish maximizes assembly corrosion resistance. [FOOT-ACTUATED DESIGN] - This air hydraulic pump adopts a user-friendly foot-actuated design, which can save the operator's time and effort with strong power and high output pressure. Use simple pedal control to pump, hold, or release the load.

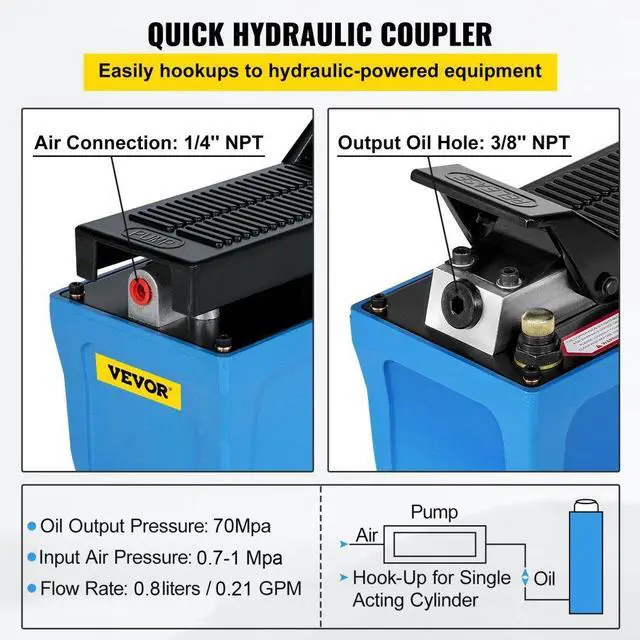

[STANDARD CONNECTOR TYPE]- The pump features a 3/8" NPT connector quick hydraulic coupler with dust cap and the cast steel oil port, which will not leak oil easily and is abrasion-resistant. [DURABLE OIL PIPE] - This hydraulic ram pump is equipped with a high-pressure oil pipe that adopts double protection of embedded steel wires and a thickened outer layer. The oil port is made of cast steel, durable and abrasion-resistant, no worry about the oil leak. [VARIOUS APPLICATION]- This hydraulic foot pump is very suitable for use with various plungers, presses, and hydraulic pullers.

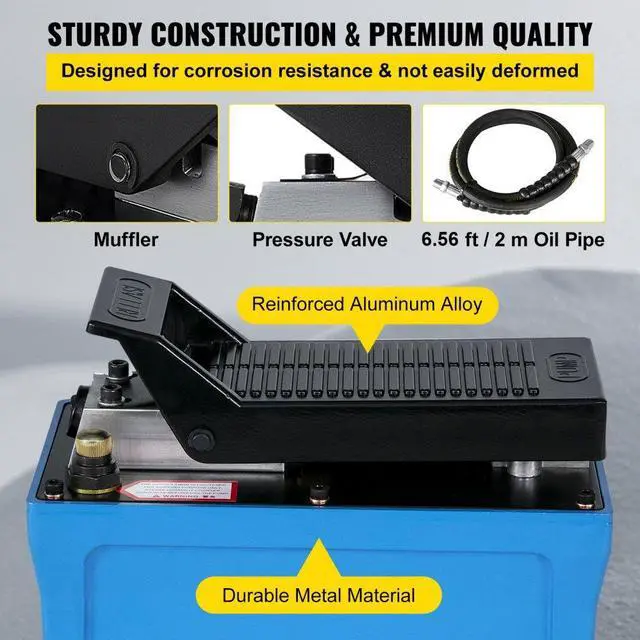

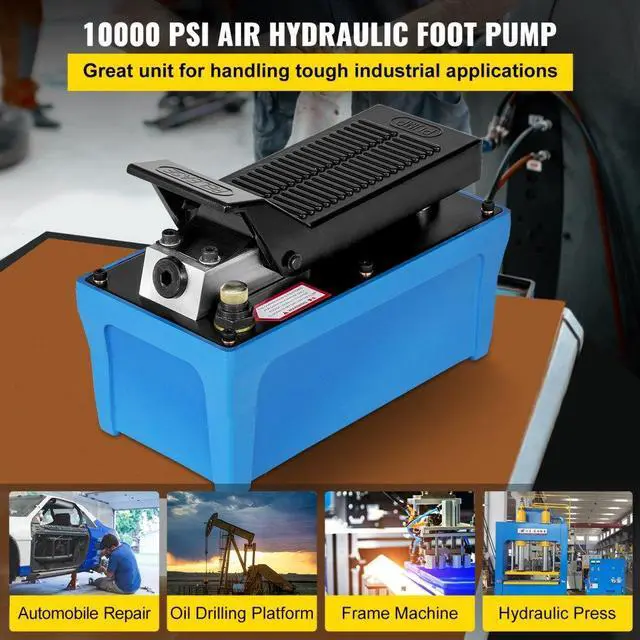

Suit for massive machinery rigging and moving, auto repair, automobile manufacturing, oil rigging, machine maintenance, and single-acting cylinders. All Metal Construction Thishydraulic foot pump is built to handle tough industrial applications with all metal construction. Foot Control Foot pedal pump release pressure to return fluid. It can release and remove foot as release / return takes effect by release lock plate. Standard 3/8 NPT All threads on all components in set are standard 3/8 NPT with dust cap. Built-In Security 3/8 NPT oil output, safely builds to 10, 000 pounds and has a built in safety overload pump saver.

Long Lasting Seal Designed to absorb the high pressure from pump with a Teflon back up for long lasting seal performance. Widely Applicable This air hydraulic foot pumpis suitable forheavy machinery rigging and moving, auto repair, oil rigging, machine maintenance, etc. Air Hydraulic Foot Pump This machine is made of rugged construction parts are built for long life and easy service. Baked Powder TUFF COAT finish maximizes assembly corrosion resistance and 5ft with 3/8 NPT quick hydraulic coupler with dust cap. It is designed to be used with single acting cylinders, and provides hands operation for pumping and releasing load.

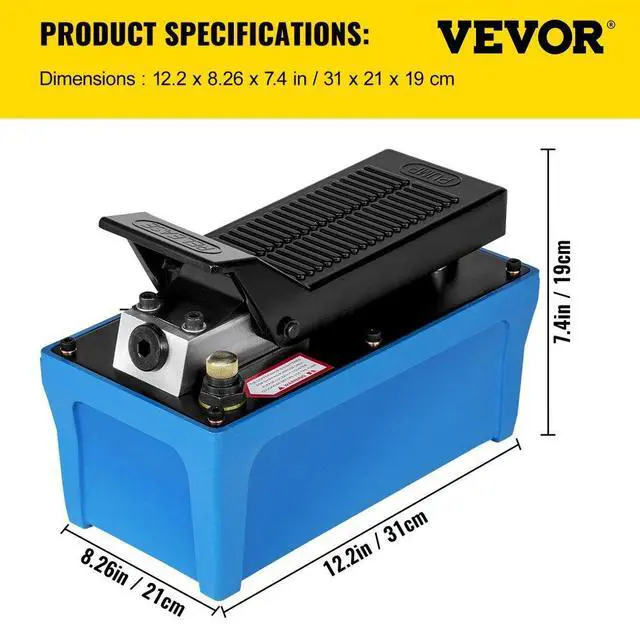

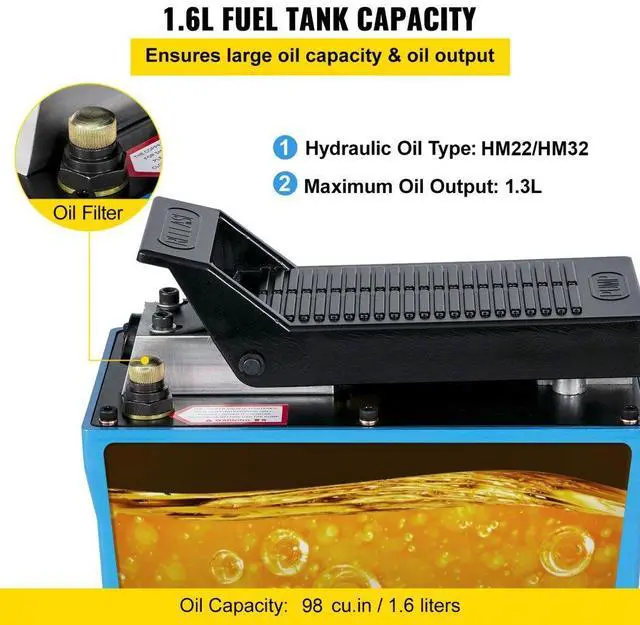

All Metal Construction Foot ControlStandard 3/8 NPT Built-In SecurityPackage ContentSpecifications Type Air Powered Hydraulic Pump Action Single acting Control Foot pedal pump - Release pressure to return fluid Includes Hydraulic Hose 5 ft with 3/8 NPT - Quick hydraulic coupler with dust cap Flow Rate 0.85 liters ( 0.22 gallons) per minute Air Connection 1/4" Female NPT Hydraulic Oil Type AW-46 Oil Capacity 103 in ( 1.7 liters / 1700 cc), 0.45 gallons Max Input Air Pressure 120 PSI Max Output Hydraulic Pressure 10, 000 PSI Connector Type 3/8" NPT ISO 14540 quick hydraulic coupler with dust cap Weight 17.72 lb ( 8.04 kg) Dimensions (L* W* H) 12.2" * 8.26" * 7.4" (31*21*19cm) Package Content 1x Blue foot pump 1x High pressure oil pipe 2x Quick connector 1x Air connector with air pipe 1x Manual
