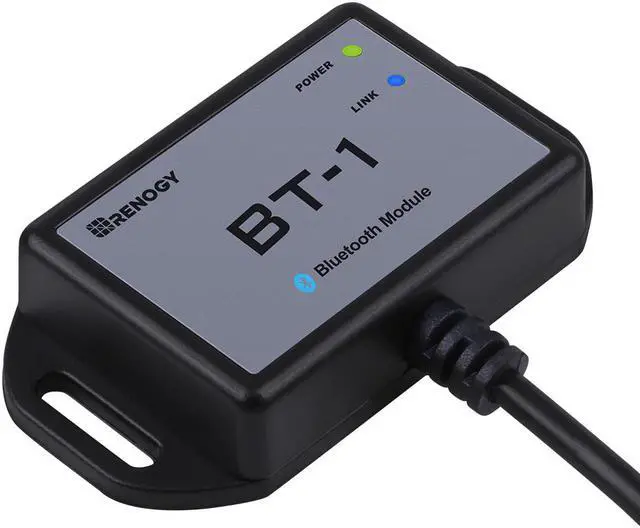

Renogy BT-1 Bluetooth Module for Solar Charge Controller Wireless monitor (New Version)
- 1. Wirelessly monitor and control compatible solar charge controllers via Bluetooth

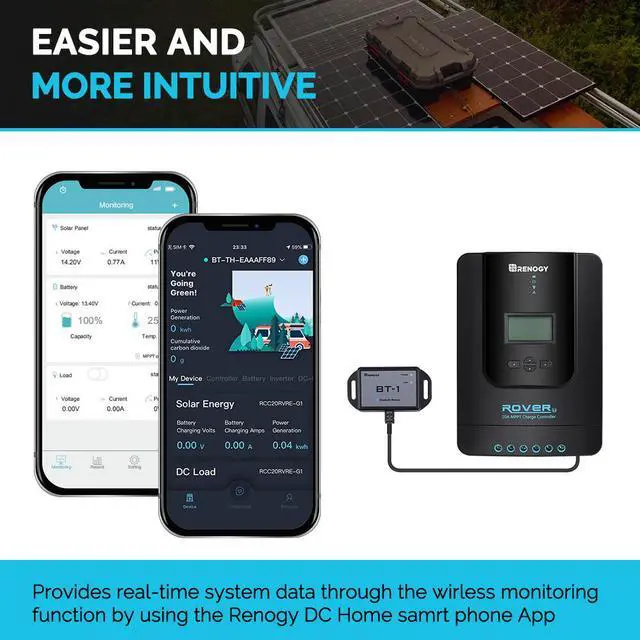

- 2. Connects to our user-friendly smartphone App, Renogy DC Home, to keep track of your system
- 3. Embedded exclusive Bluetooth chip with high efficiency and low energy consumption
- 4. Bluetooth 4.2 and BLE technology provides fast and uninterrupted communication

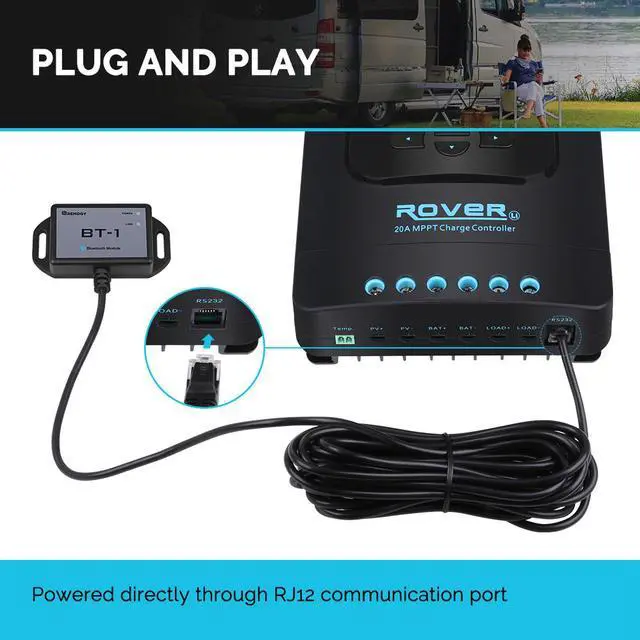

- 5. Powered directly through the RJ12 communication port

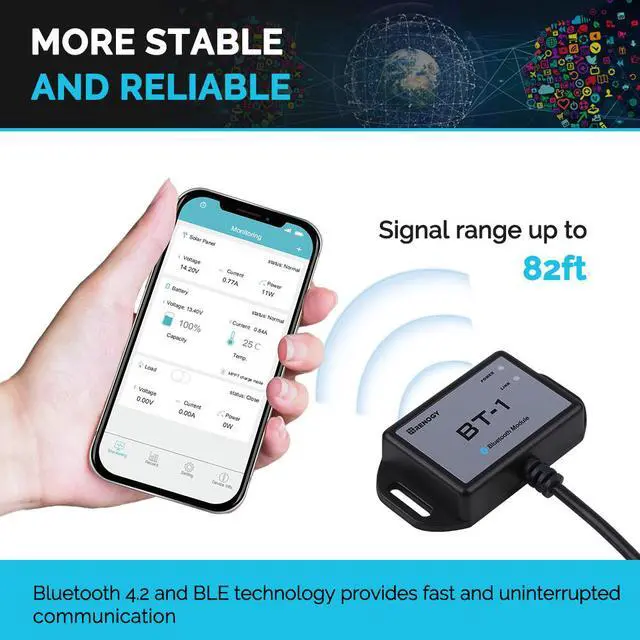

- 6. Signal range up to 82ft

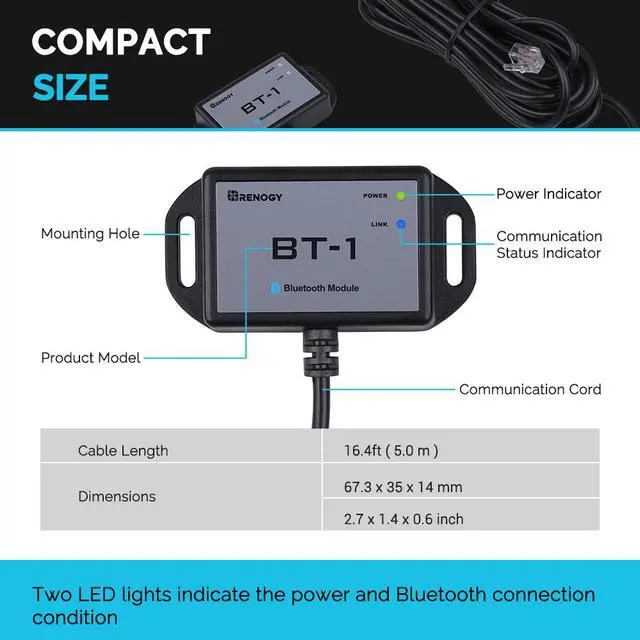

- 7. Two LED lights indicate the power and Bluetooth connection condition
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

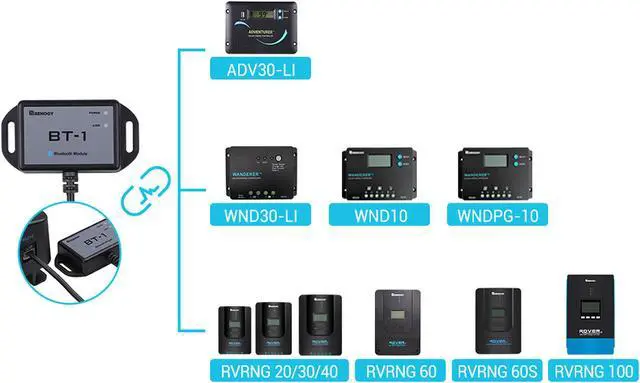

The Renogy BT-1 Bluetooth Module (New Version) pairs great with any compatible Renogy solar charge controller. This updated model boasts an increased signal range of up to 82 feet and an additional LED to indicate when your devices have synced. Plug the BT-1 into your controller's RJ12 port to seamlessly monitor and change settings straight from your smart device through the DC Home App (available in both the App Store and Google Play).
Specifications Input Voltage: 5V Standby
Power Consumption: 0.04W Operating
Power Consumption: 0.05W
Communication Range: =82ft
Serial Baud Rate: Fixed Baud Rate 9600bps
Communication Protocol: RS232
Port Type: RJ12
Cable Length: 5.00 m ( 16.4 ft)
Dimension: 2.65 X 1.38 X 0.55 in ( 67.3 X 35 X 14 mm)
Installation Dimensions: 67.3 f 3.5 mm ( 2.66 f 0.14 in)
Operation Temperature: -20
? ~85? (-4°F to 185°F)
Weight: 4.58 oz (130g)
Protection Grade: IP54
Specifications Input Voltage: 5V Standby
Power Consumption: 0.04W Operating
Power Consumption: 0.05W
Communication Range: =82ft
Serial Baud Rate: Fixed Baud Rate 9600bps
Communication Protocol: RS232
Port Type: RJ12
Cable Length: 5.00 m ( 16.4 ft)
Dimension: 2.65 X 1.38 X 0.55 in ( 67.3 X 35 X 14 mm)
Installation Dimensions: 67.3 f 3.5 mm ( 2.66 f 0.14 in)
Operation Temperature: -20
? ~85? (-4°F to 185°F)
Weight: 4.58 oz (130g)
Protection Grade: IP54
