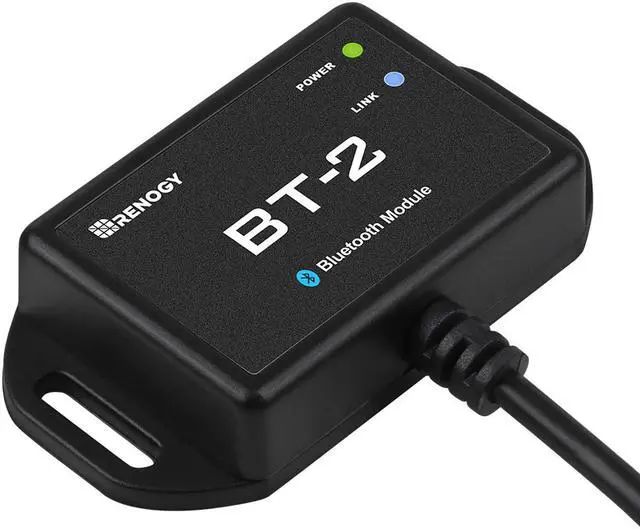

Renogy BT-2 Bluetooth Module for Solar Charge Controller Wireless monitor

In stock.
Ships from United States.
Most customers receive within 3-9 days.
  • 1. Wirelessly monitor and control compatible solar charge controllers via Bluetooth
  • 2. Connects to our user-friendly smartphone App, Renogy
  • DC Home, to keep track of your system
  • 3. Embedded exclusive Bluetooth chip with high efficiency and low energy
  • consumption
  • 4. Bluetooth 4.2 and BLE technology provides fast and uninterrupted
  • communication
  • 5. Powered directly through the RJ45 communication port

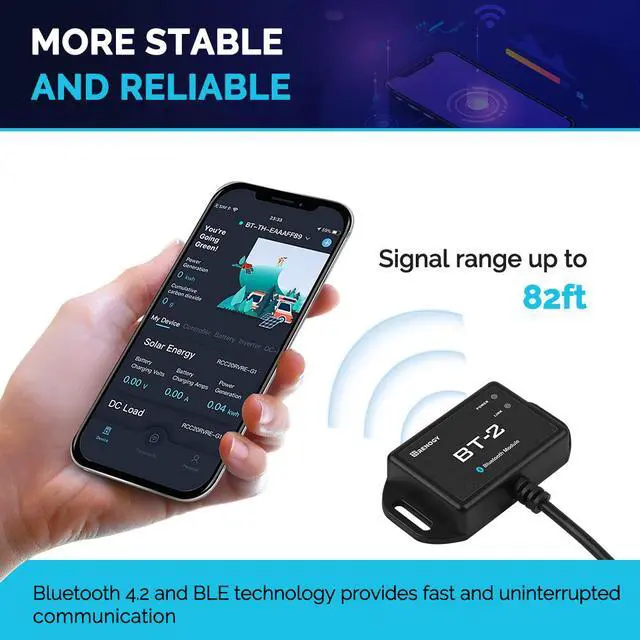

  • 6. Signal range up to 82ft

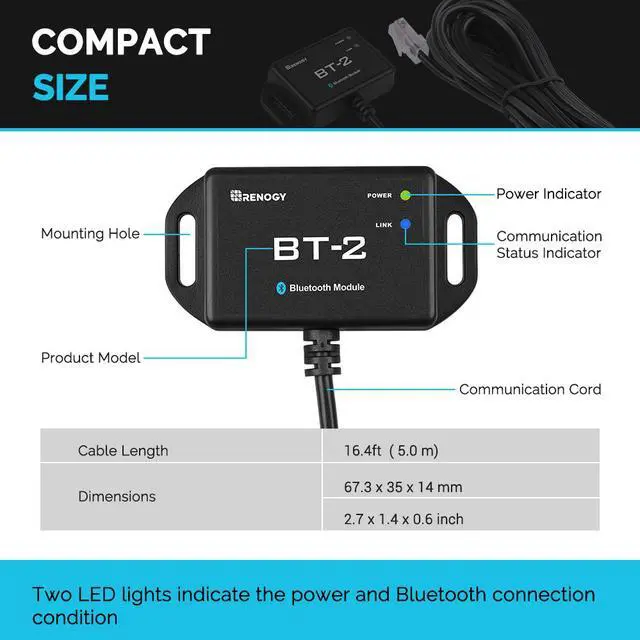

  • 7. Two LED lights indicate the power and Bluetooth connection condition

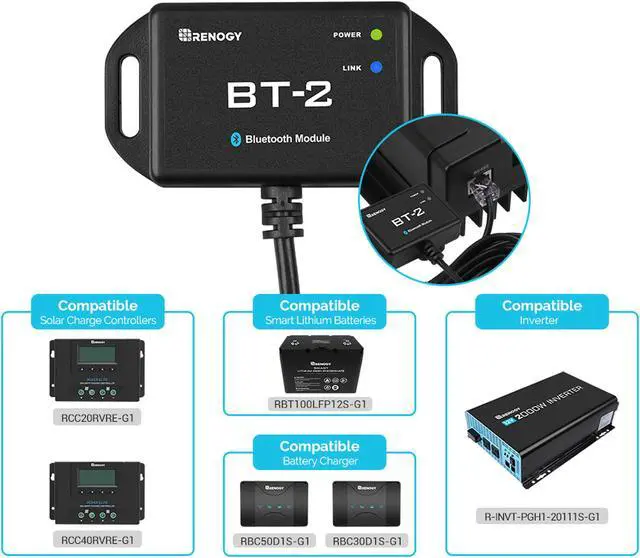

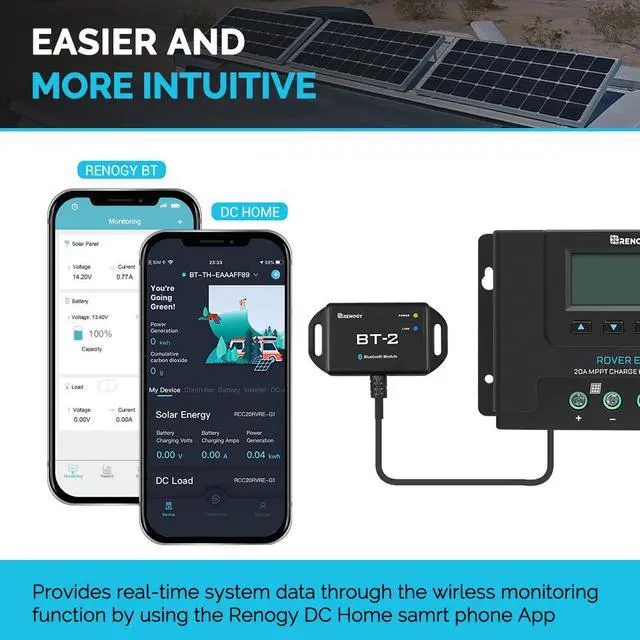

The Renogy BT-2 is a new generation of Bluetooth module for Renogy solar charge controllers, smart lithium batteries, inverters, and DC-DC MPPT Battery Chargers. Powered by its RJ45 communication port, the BT-2 provides wireless monitoring of the system data through Renogy DC Home smart phone App.

Input Voltage: 5V or 12V
Standby Power Consumption: 0.04W
Operating Power Consumption: 0.05W
Communication Range: =82ft
Serial Baud Rate: Fixed Baud Rate 9600bps
Communication Protocol: RS485
Port Type: RJ45
Cable Length: 5.00m (16.4ft)
Dimension: 2.65 X 1.38 X 0.55 in (67.3 X 35 X 14 mm)
Installation Dimension: 67.3 f3.5mm (2.66 f 0.14in)
Operation Temperature: -4°F to 185°F (-20°C~85°C)
Weight: 4.58oz (130g)
Protection Grade: IP54
