YCX Solar Charge Controller

12V/24V

Dual USB output

YCX solar charge controller uses industrial-grade built-in chips.
Fully 3-stage charge management.
Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.
Reverse current protection,low heat production.

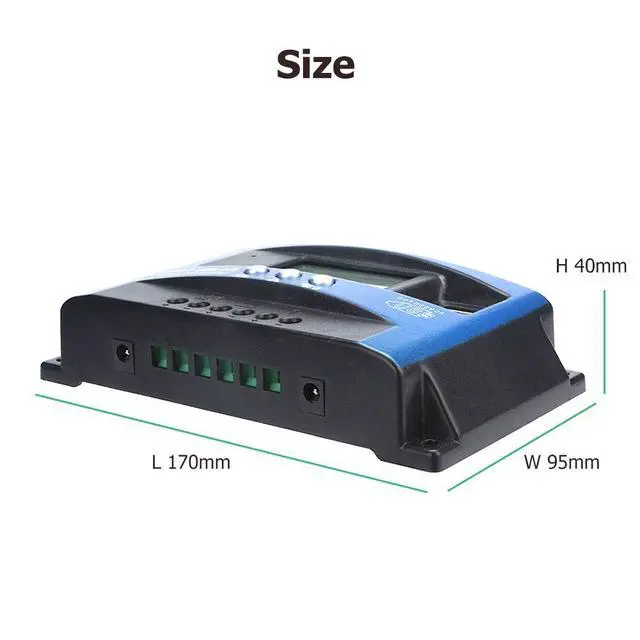

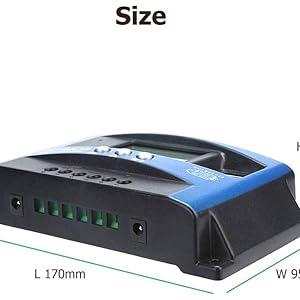

L: 170mm

W: 95mm

H: 40mm

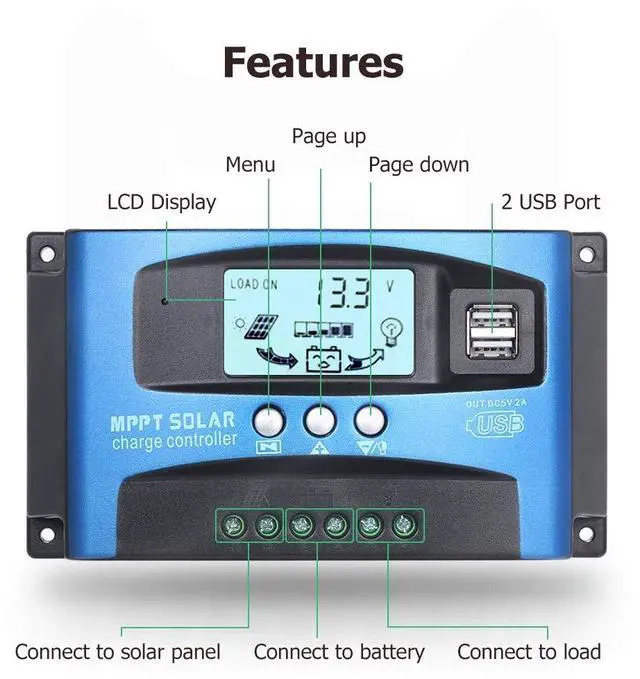

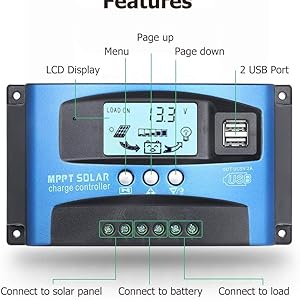

Large-screen LCD display,charging and discharging current display,cumulative power generation and discharge power query,temperature display,light control+delay control;adjustable charge and discharge parameters,with power-off memory and other functions.

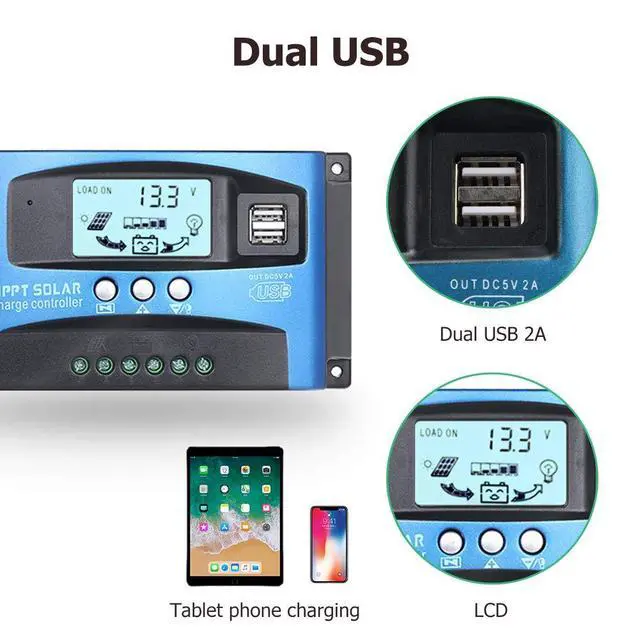

Dual USB output,the maximum current of 2.5A,to support Apple's mobile phone charging.

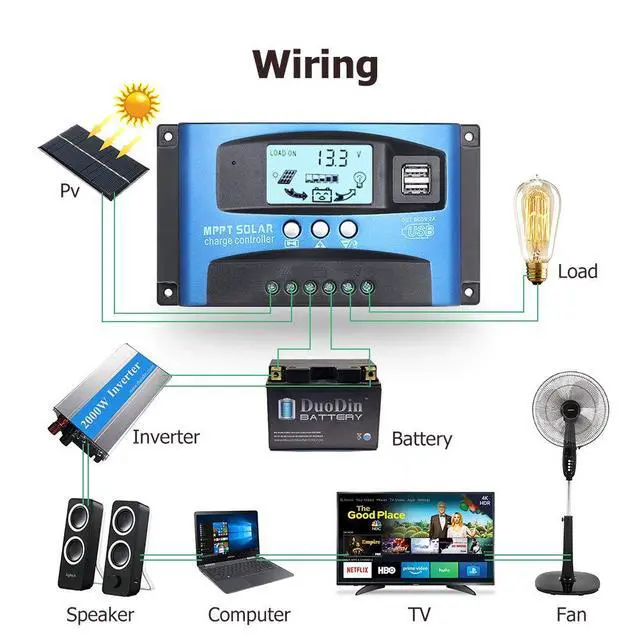

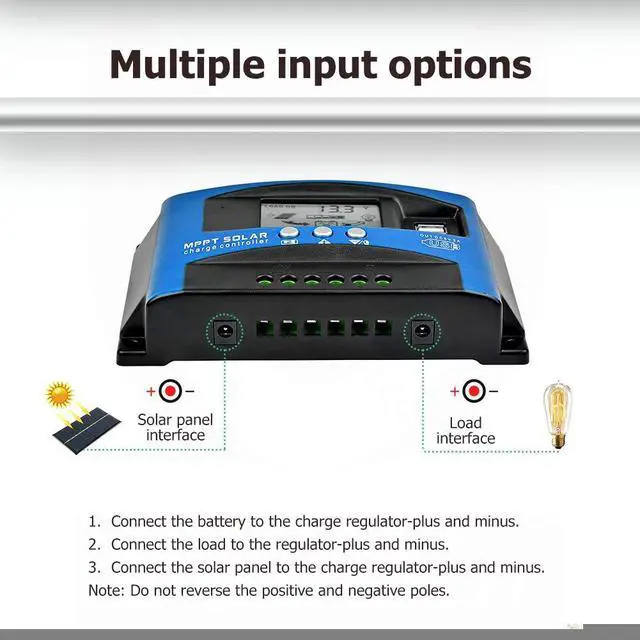

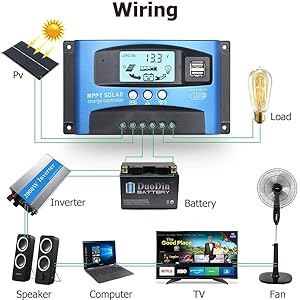

Connect the battery to the charge regulator-plus and minus.
Connect the photovoltaic module to the regulator-plus and minus.
Connect the consumer to the charge regulator-plus and minus.
The regulator is only suitable for lead acid batteries:OPEN,AGM,GEL.It is not suited for nickel metal hydride,lithium ions or other batteries.
The charge regulator is only suitable for regulating solar modules.Never connect another charging source to the charge regulator.

Batt voltage	12V/24V auto
Max solar input	12Vbattery,the highest 23V; 24V battery the highest 46V
Equalization	12V:14.4V; 24V:28.8V
Float charge	12V:13.7V; 24V:27.4V
Discharge stop	12V:10.7V; 24V:21.4V
Discharge reconnect	12V:12.6V; 24V;25.2V
Voltage of open light	12V:Solar panel 8V(Light lights delay) 24V:Solar panel 16V(Light lights delay)
Voltage of close light	12V:Solar panel 8V(Light off delay) 24V:Solar panel 16V(Light off delay)
USB output	2 way USB output, 5V/2.5A(MAX)

SolaMr solar charge controller give the Sun a Brain – Let Your Energy Flow with Precision!

Is this a real MPPT solar controller?
Yes, this solar controller includes essential components for MPPT solar controllers - high-power magnetic rings and large electrolytic capacitors, which is also one of the reasons for the high cost of MPPT solar controllers.
Why has our product been recognized?
The CM and GM series are new products developed by SolaMr, which simplify functionality and allocate most of the cost to the main components of MPPT solar controllers, providing customers with high-quality and suitable products. We committed to serving every customer well.
SolaMr GM & CM MPPT
Ultra-Stable MPPT Controller
EPEVER MPPT 10A/20A/30A/40A
EPEVER MPPT 50A/60A/80A/100A
EPEVER MPPT Set
MPPT Charge Controller
PWM Solar Controller
EPEVER PWM Controllerr
MPPT+ PWM charging mode
How to choose a solar controller with the appropriate specifications?
You can directly contact SolaMr to select for you.
?
The control you will purchase must meet two conditions
1. The rated current of the controller must be greater than (the power of the solar panel divided by the voltage of the battery)
2. The open circuit voltage of the controller must be greater than the open circuit voltage of your solar panel, and both must be greater than the voltage of your battery
