MPPT Solar Charge Controller
Solar Hybrid Inverter
60A MPPT Solar Charge Controller Warm Tips:

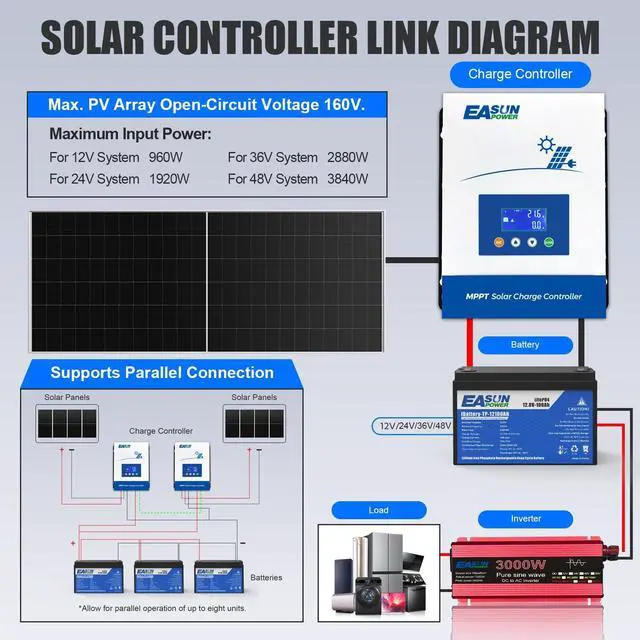

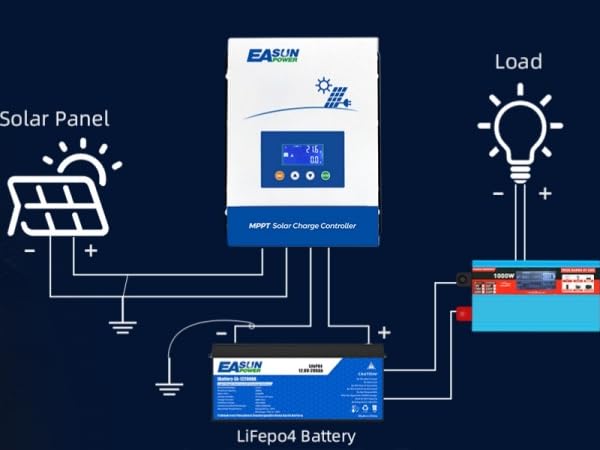

- Solar controller link order: first connect to battery; then connect to PV array; finally connect to load appliance.
- Don't connect inverter, wind, alternator charger into the charge controller! Please connect the solar controller to the battery.
- If solar PV input voltage lower 3V or lower than batteries’ voltage. It may be appears to have been discontinued.

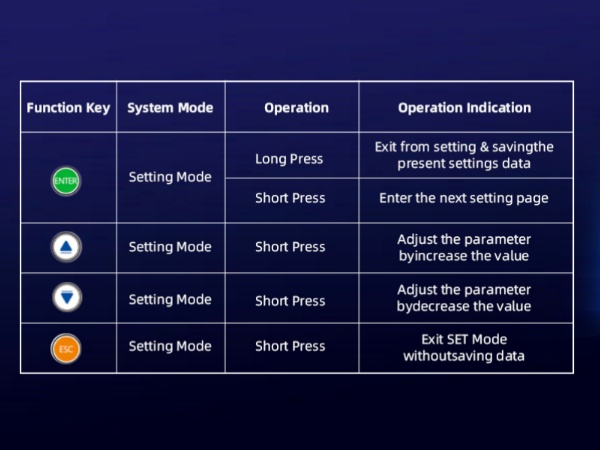

- Parameter Setting:Floating voltage > Low voltage reconnect > Low voltage discharge.
- When controller makes buzzing because the controller dissipate heat. It will be stop when temperature return to normal.
- Don't let the positive (+) and negative (-) terminals of the battery touch each other.
Precautions before using a POWLAND MPPT 60A solar controller ?
Users should first connect the battery before connecting the solar panel for the solar controller to function properly.Otherwise, it may cause irreversible damage to the controller.
Why is there no voltage displayed after I connect the solar panel?
It may be caused by low voltage. When connecting the PV, it is necessary to ensure that the PV voltage is 1.5 times higher than the battery voltage.
Why does my controller display a current of Zero?

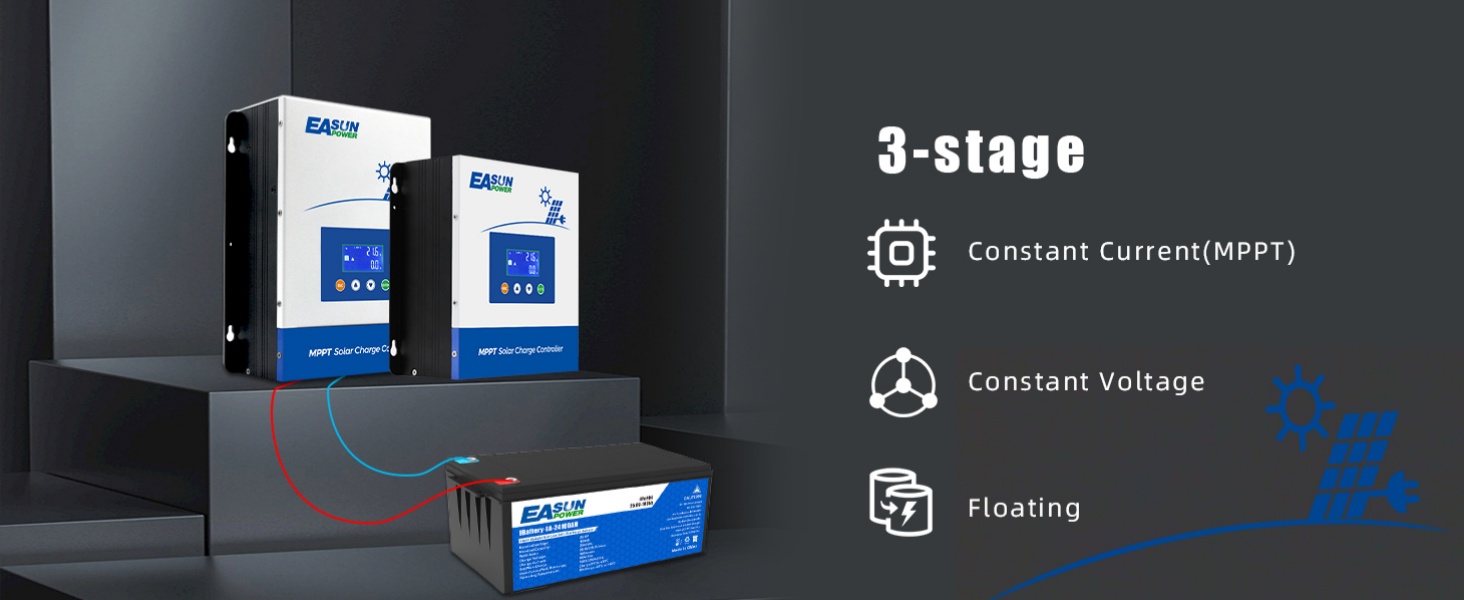

When the battery is in float charging state or the solar panel is damaged, the charging current is problly to be less than 1ah. When the charging current is less than 1Ah, the charging current is displayed as ZERO.
What you can get when you buy a POWLAND MPPT solar controller?
MPPT Controller*1;User Manual*1;3M Sticker*1;External Temperature Sensor*1
Our POWLAND company, a pioneer in renewable energy solutions
Our mission is to empower businesses and communities worldwide with eco-energy, reducing carbon footprints and fostering a greener future. Join us in our journey towards a brighter, more sustainable tomorrow.
MPPT Solar Charge Controller
Solar Hybrid Inverter

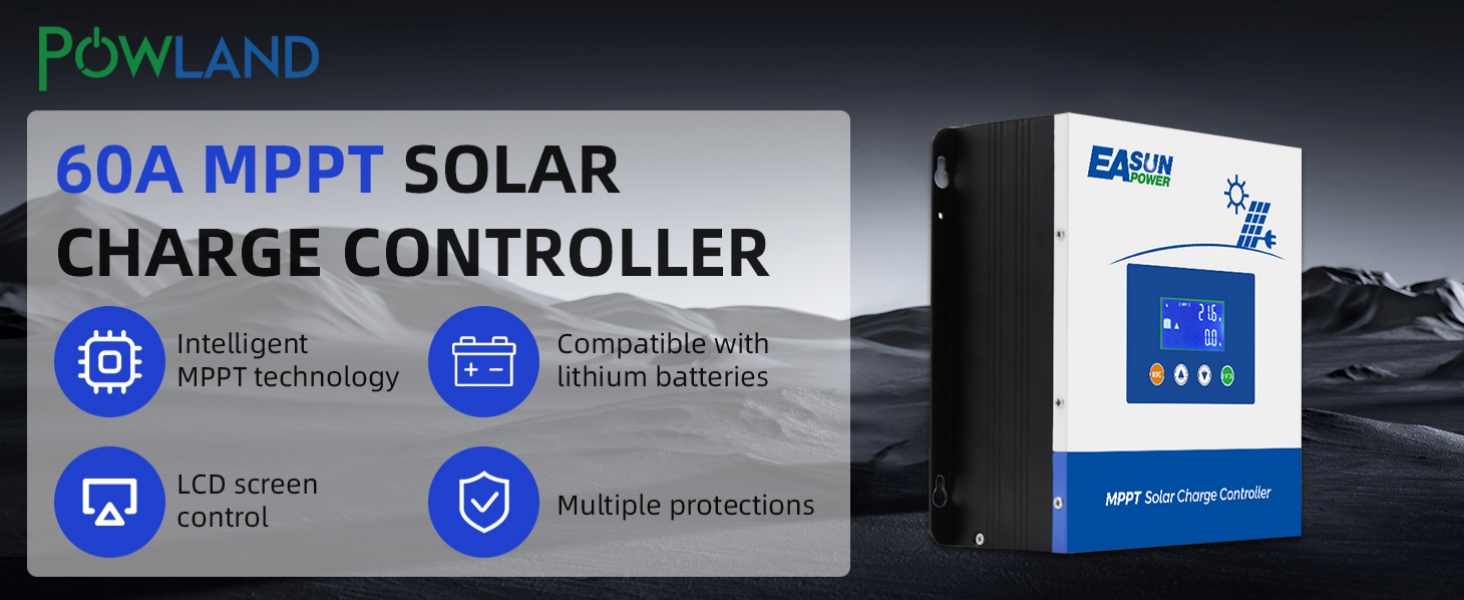

60A MPPT Solar Charge Controller Warm Tips:

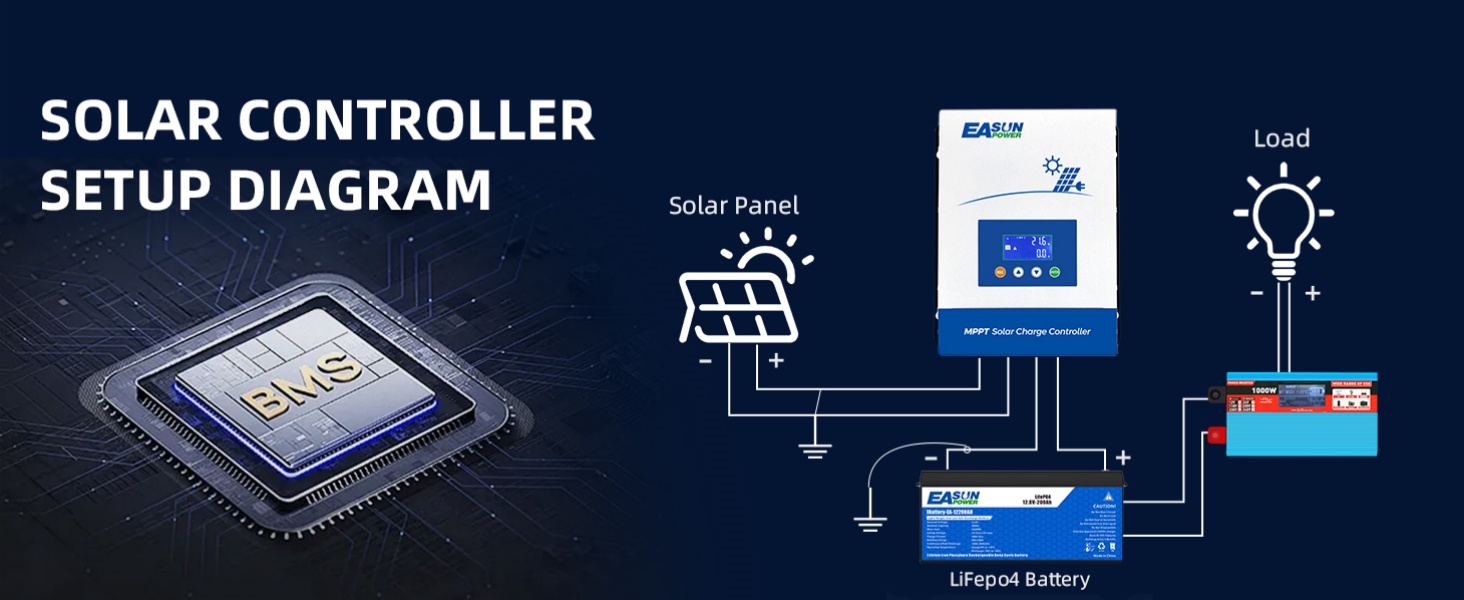

- Solar controller link order: first connect to battery; then connect to PV array; finally connect to load appliance.
- Don't connect inverter, wind, alternator charger into the charge controller! Please connect the solar controller to the battery.
- If solar PV input voltage lower 3V or lower than batteries’ voltage. It may be appears to have been discontinued.
- Parameter Setting:Floating voltage > Low voltage reconnect > Low voltage discharge.
- When controller makes buzzing because the controller dissipate heat. It will be stop when temperature return to normal.
- Don't let the positive (+) and negative (-) terminals of the battery touch each other.
| System Voltage | 12/24/36/48/Auto |
|---|---|
| Auto Temperature Compensation | -3mV/2V/ºC |
| Overcharging Protection | 36VSystem(48V) /48V System(64V) /12V System(16V)/24V System(32V) |

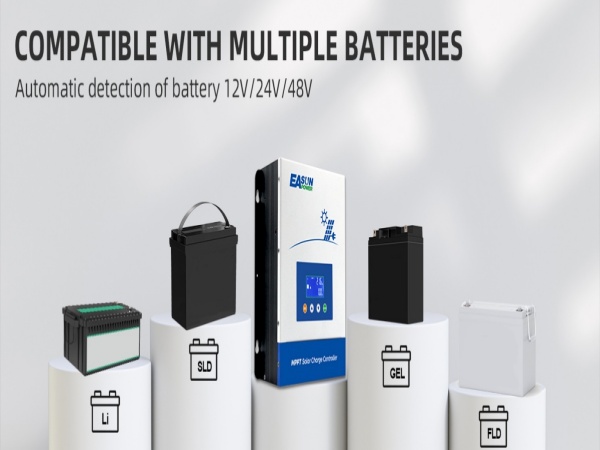

| Battery Voltage Automatic | 12V System(DC8.7V-DC15.5V);24V System(DC16V -DC31V);36V System(DC33V -DC41V);48V System(DC42V -DC64V) |
| Max PV Input Power | 900W/12V(PV voltage D?20V-DC150V);1800W/24V(PV voltage D?37V-DC150V);2600W/36V(PV voltage D?50V-DC150V);3200W/48V(PV voltage D?72V-DC150V) |
| Max PV Input Voltage | 150 Voc |
| PV Utilization | =99% |
| Limited Current Protection | 60A |
| Max Efficiency | =98.1% |
| Size | 7.91in*7.91in*3.16in |
| Net Weight | 1.72Kg |
Precautions before using a POWLAND MPPT 60A solar controller ?
Users should first connect the battery before connecting the solar panel for the solar controller to function properly.Otherwise, it may cause irreversible damage to the controller.
Why is there no voltage displayed after I connect the solar panel?
It may be caused by low voltage. When connecting the PV, it is necessary to ensure that the PV voltage is 1.5 times higher than the battery voltage.
Why does my controller display a current of Zero?
When the battery is in float charging state or the solar panel is damaged, the charging current is problly to be less than 1ah. When the charging current is less than 1Ah, the charging current is displayed as ZERO.
What you can get when you buy a POWLAND MPPT solar controller?
MPPT Controller*1;User Manual*1;3M Sticker*1;External Temperature Sensor*1
