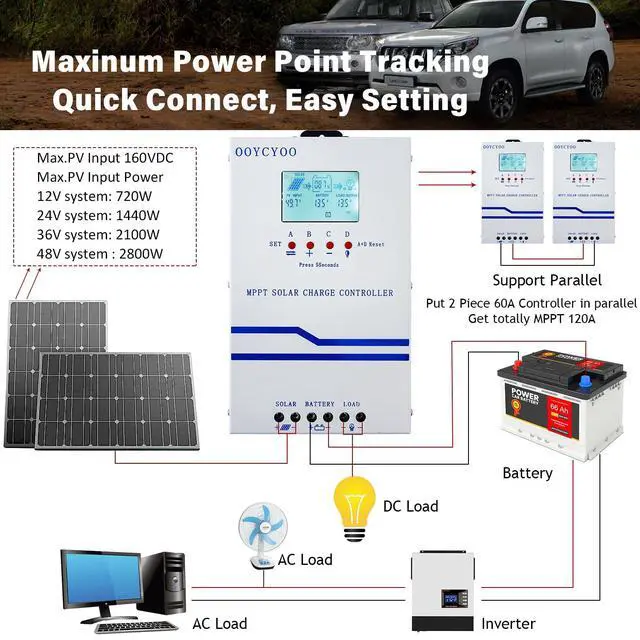

60A Solar Charge Controller MPPT 12V 24V 36V 48V Controller 60amp Solar Charge Regulator MPPT 160V w/LCD Display Work with AGM, Gel, Flooded and Lithium
- 60A MPPT CHARGING CONTROLLER :4-stage battery charging algorithm for a rapid, efficient , safe charging(Bulk Charge, Boost Charge, Float Charge,and Equalization), 60amp Rate Charging current
- Wide Range Voltage/Powe Support60a solar controller supports High PV Input Power/Voltage. The charger controller can accept Solar voltage up to 160V. When battery is 12V system: Suggest Solar power 720W, suggest range: DC20V~DC80V; 1440W 37~105V when in 24V; 2100W 50~160 when in 36V; 2800W 72-160v when in 48V
- 12V/24V/36V/48V BATTERY SUPPORT:Negative grounding design controller more safe, controller Compatible with a variety of batteries (lead-acid, lithium, Sealed, Gel, Flooded and LI (LFP) battery charging parameter pre-set, User-defined, etc.)
- 99% Tracking TechnologyMPPT Charge Controller with advanced Maximum Power Point Tracking technology can continuously track the arrays maximum power point to get the maximum power to charge the battery. The tracking efficiency is not less than 98.1% and the peak conversion efficiency is up to 98%
- Dual Cooling, Efficient Heat DissipationThe 60-amp charge controller is constructed with die-cast aluminum, ensuring excellent heat dissipation and reduced power consumption. Additionally,Built-in cooling fan, Fan will ON when temperature >45 and off < 40,Porous heat dissipation and fan use BEARING technologies increase life UP TO 5000hrs in normal use.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
MPPT Solar Charge Controller 60A , 12V/24V/36V/48V Auto Work
60A mppt solar charge controller is new upgrade versionBetter funcations and advanced technology .
Added Features:
Blacklight LCD Display
The display directly shows the amount of charge: KWH, without the need for other measuring instruments
Two new vents are added for scientifically designed convection cooling.
More Safety Protection
Maximum DC/DC transfer efficiency is as high as 99%
MPPT 60A Technical datas :
Rated charge current:60A
12V battery system:open circuit voltage 72V(Voc) maximum. PV input power:720W
24V battery system:Open circuit voltage 108V(Voc) maximum.PV input power:1440W
36V battery system:Open circuit voltage 144V(Voc) maximum.PV input power:2100W
48V battery system:Open circuit voltage 160V(Voc) maximum.PV input power:2800W
System nominal voltage :12V/24V/36V/48V DC Auto identifying
Battery voltage range: 9V~55V
Max.PV open circuit voltage:160VDC
Power terminal:6-12 AWG
Dimension: 11*6*2.5in
Weight : 4(ib)
Protection function:
PV Over Current/power
PV Short Circuit
PV Reverse Polarity
Night Reverse Charging
Battery Reverse Polarity
Battery Over Voltage
Battery Over Discharge
Battery Overheating,Controller Overheating
Lithium Battery Low Temperature
Load Short Circuit
Load Overload
TVS High Voltage Transients
Package List:
1 x 60A MPPT Solar Charge Controller
1 x User Manual (English)
