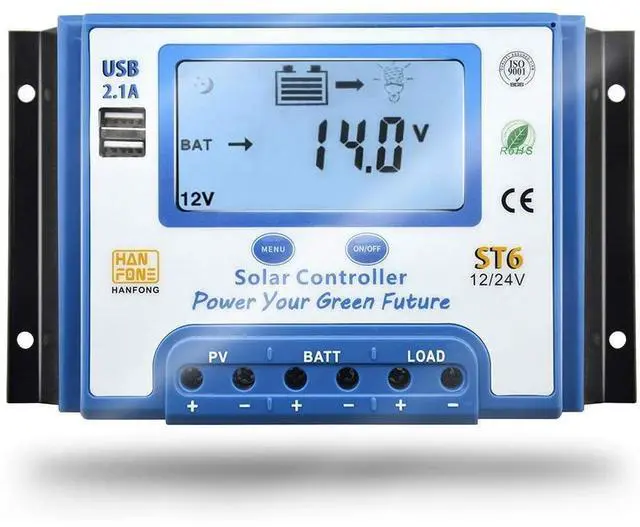

60A PWM Solar Charge Controller
The controller is for off-grid solar system and control the charging and discharging of the battery. Main function is protecting battery. The intelligent charging process has been optimized for long battery life and improved system performance.

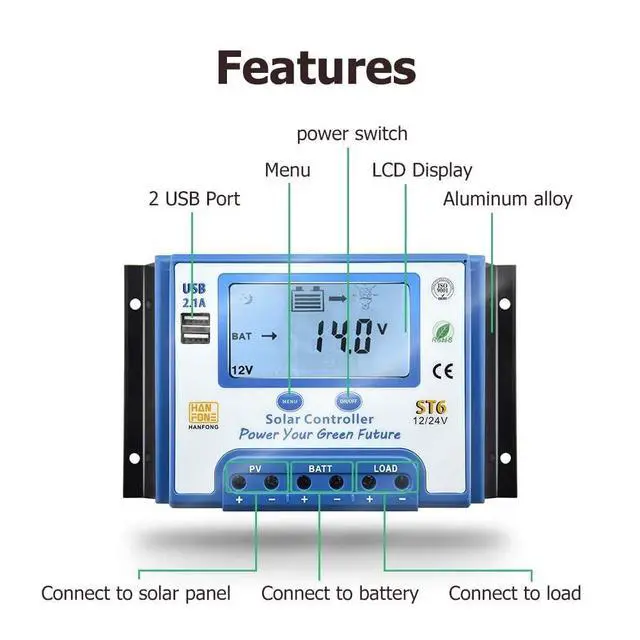

Features

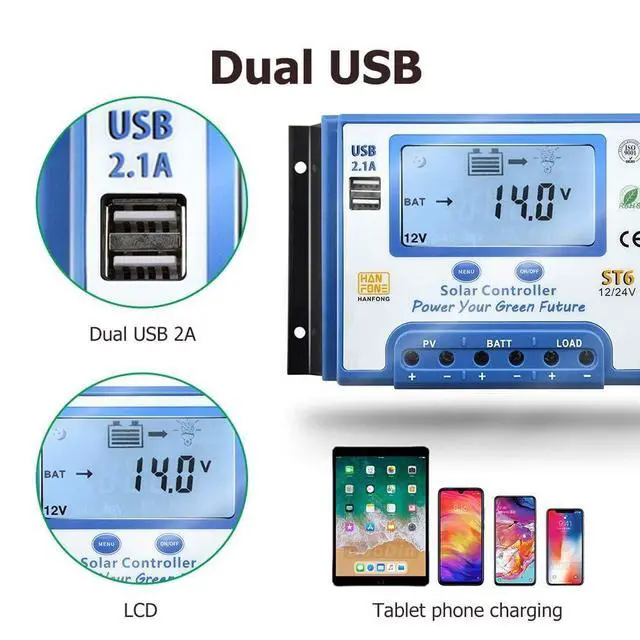

- Automatic Identification System Voltage, 12V24V auto recognition.Humanized LCD displaying and double button operation of man-machine interface.
- High efficiency intelligent PWM 3 stage charging.
- The load control mode can be selected, the time function can be reset for street light at night.
- RS485 communication interface (optional) .
- Discharge capacity control and counter of ampere hour .
- Working Storage Function: record the total run time of system, record timers of error during running time, record times of full charged battery .
- Reliable over voltage protection, short circuit protection, over load protection, overcharge protection, over-discharge protection.
- Accurate temperature compensation, correcting the charging and discharging voltage automatically, improving the battery lifetime.
- Solar Panels, Battery, Solar Charge Controller positive poles are all connected together, adopting negative MOSFET in series control circuit.
connection & application
- All terminals are in tight status after factory, in order to well connected, please loose all terminals at first.
- The following order of connection please do not free charge, or cause system voltage recognition fault.

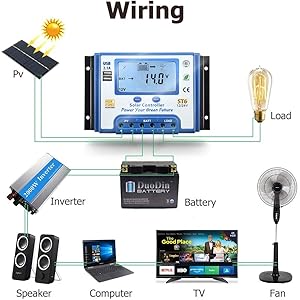

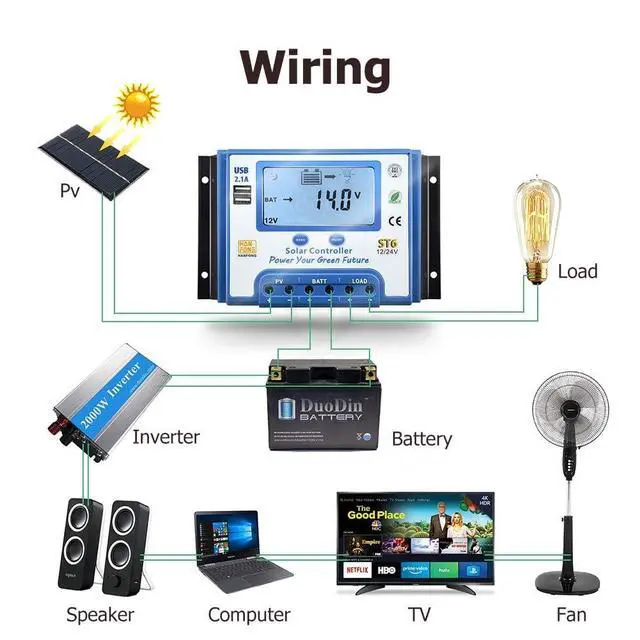

- As figure, first connected the battery to controller correct poles. In order to avoid short circuit, please screw the cable of battery to the controller in advance, then connected to battery poles secondly. If your connection is correct, the LCD displaying will show battery voltage and other technical data. If LCD no indicate, please check the fault. The length of cable between battery and controller as shorter as possible. Suggest to 30CM - 100CM.
- As figure, connected solar panels with controller correctly. If the connection is successful and sunshine is full, the LCD will show solar panel and an arrow from solar panel to battery will be light.
The voltage of solar panel is very high under sunshine, high voltage can cause injury or destroy controller. As figure, connected loads with controller correctly. Under 48V system, the reverse connection of solar panel will be destroy the solar charge controller.
In order to avoiding injury from load voltage, please close to the output of controller with button at first, then connected the load on the controller. The controller do not offer reverse connection protection for load will be destroy bulb.
Technical Date
Plug & Play Simplicity
SolaMr solar charge controller give the Sun a Brain – Let Your Energy Flow with Precision!
Is this a real MPPT solar controller?
Yes, this solar controller includes essential components for MPPT solar controllers - high-power magnetic rings and large electrolytic capacitors, which is also one of the reasons for the high cost of MPPT solar controllers.
Why has our product been recognized?
The CM and GM series are new products developed by SolaMr, which simplify functionality and allocate most of the cost to the main components of MPPT solar controllers, providing customers with high-quality and suitable products. We committed to serving every customer well.
SolaMr GM & CM MPPT
![SolaMr [????????????????] 80A 180V MPPT Solar Charge Controller 12V/24V/36V/48V, LCD Screen Solar...](//c1.neweggimages.com/sellingpilot/modules/product/a-plus/7526f7c16ce3608a53c5991d6988cc103b84165d9dd56222734a9ff25e3a8bb3.jpg)
Ultra-Stable MPPT Controller
EPEVER MPPT 10A/20A/30A/40A
EPEVER MPPT 50A/60A/80A/100A
EPEVER MPPT Set
MPPT Charge Controller
PWM Solar Controller
EPEVER PWM Controllerr
MPPT+ PWM charging mode
How to choose a solar controller with the appropriate specifications?
You can directly contact SolaMr to select for you.
?
The control you will purchase must meet two conditions
1. The rated current of the controller must be greater than (the power of the solar panel divided by the voltage of the battery)
2. The open circuit voltage of the controller must be greater than the open circuit voltage of your solar panel, and both must be greater than the voltage of your battery
![SolaMr [????????????????] 80A 180V MPPT Solar Charge Controller 12V/24V/36V/48V, LCD Screen Solar...](http://c1.neweggimages.com/sellingpilot/modules/product/a-plus/7526f7c16ce3608a53c5991d6988cc103b84165d9dd56222734a9ff25e3a8bb3.jpg)
Plug & Play Simplicity
SolaMr solar charge controller give the Sun a Brain – Let Your Energy Flow with Precision!
Is this a real MPPT solar controller?
Yes, this solar controller includes essential components for MPPT solar controllers - high-power magnetic rings and large electrolytic capacitors, which is also one of the reasons for the high cost of MPPT solar controllers.
Why has our product been recognized?
The CM and GM series are new products developed by SolaMr, which simplify functionality and allocate most of the cost to the main components of MPPT solar controllers, providing customers with high-quality and suitable products. We committed to serving every customer well.
SolaMr GM & CM MPPT
Ultra-Stable MPPT Controller
EPEVER MPPT 10A/20A/30A/40A
EPEVER MPPT 50A/60A/80A/100A
EPEVER MPPT Set
MPPT Charge Controller
PWM Solar Controller
EPEVER PWM Controllerr
MPPT+ PWM charging mode
How to choose a solar controller with the appropriate specifications?
You can directly contact SolaMr to select for you.
?
The control you will purchase must meet two conditions
1. The rated current of the controller must be greater than (the power of the solar panel divided by the voltage of the battery)
2. The open circuit voltage of the controller must be greater than the open circuit voltage of your solar panel, and both must be greater than the voltage of your battery
60A PWM Solar Charge Controller
The controller is for off-grid solar system and control the charging and discharging of the battery. Main function is protecting battery. The intelligent charging process has been optimized for long battery life and improved system performance.
Features
- Automatic Identification System Voltage, 12V24V auto recognition.Humanized LCD displaying and double button operation of man-machine interface.
- High efficiency intelligent PWM 3 stage charging.
- The load control mode can be selected, the time function can be reset for street light at night.
- RS485 communication interface (optional) .
- Discharge capacity control and counter of ampere hour .
- Working Storage Function: record the total run time of system, record timers of error during running time, record times of full charged battery .
- Reliable over voltage protection, short circuit protection, over load protection, overcharge protection, over-discharge protection.
- Accurate temperature compensation, correcting the charging and discharging voltage automatically, improving the battery lifetime.
- Solar Panels, Battery, Solar Charge Controller positive poles are all connected together, adopting negative MOSFET in series control circuit.
connection & application
- All terminals are in tight status after factory, in order to well connected, please loose all terminals at first.
- The following order of connection please do not free charge, or cause system voltage recognition fault.
- As figure, first connected the battery to controller correct poles. In order to avoid short circuit, please screw the cable of battery to the controller in advance, then connected to battery poles secondly. If your connection is correct, the LCD displaying will show battery voltage and other technical data. If LCD no indicate, please check the fault. The length of cable between battery and controller as shorter as possible. Suggest to 30CM - 100CM.
- As figure, connected solar panels with controller correctly. If the connection is successful and sunshine is full, the LCD will show solar panel and an arrow from solar panel to battery will be light.
The voltage of solar panel is very high under sunshine, high voltage can cause injury or destroy controller. As figure, connected loads with controller correctly. Under 48V system, the reverse connection of solar panel will be destroy the solar charge controller.
In order to avoiding injury from load voltage, please close to the output of controller with button at first, then connected the load on the controller. The controller do not offer reverse connection protection for load will be destroy bulb.
Technical Date
| System Voltage | 12V/24V |
| Max. Input voltage | 55V/100V |
| Self-consumption | =10mA |
| Max. charge current | 60A |
| Max. discharge current | 60A |
| Float Voltage | 13.8V ADJ9V...15V;x2 / 24V;x4 |
| Boost charging | 14.4V;x2 / 24V;x4 / 48V |
| Charge Type | PWM |
| Working Temperature | -20?---+55? |
| Waterproof grade | IP32 |
