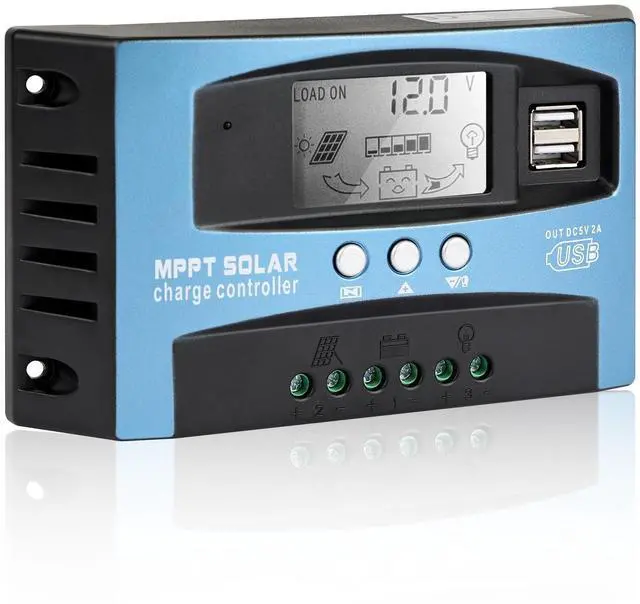

60A MPPT Solar Charge Controller, 12V/24V Auto Solar Panel Intelligent Regulator with Dual USB LCD Display Multiple Load Control Modes Timer Setting
- 60A MPPT SOLAR CHARGE CONTROLLER: This charge controller is 12V/24V and automatically adapts. Using innovative MPPT technology with high tracking efficiency of up to 99%, which helps you manage the working of solar panels and batteries in solar systems automatically. You don't need to reset it when the battery runs out cause it will memorize various parameters
- SAFE TO USE: Built-in over-current protection, short circuit protection, reverse connection protection, open circuit protection, all automatic recovery, no damage to the controller, a reliable protector for your devices. All necessary protections equipped, adjustable controlling parameter of the system, easy to set up and operate

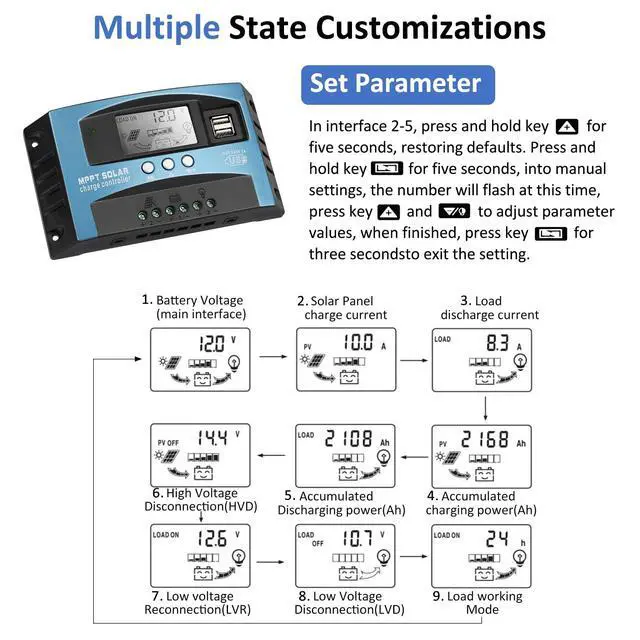

- FUNCTIONAL LCD SCREEN: Intuitive LCD display that can clearly indicate the status and data is able to switch modes and parameter configuration. The level of complete power-off is adjustable, which can perfectly protect the lithium battery from over-discharge, and also use this controller in kinds of places like homes, industrial, commercial, etc

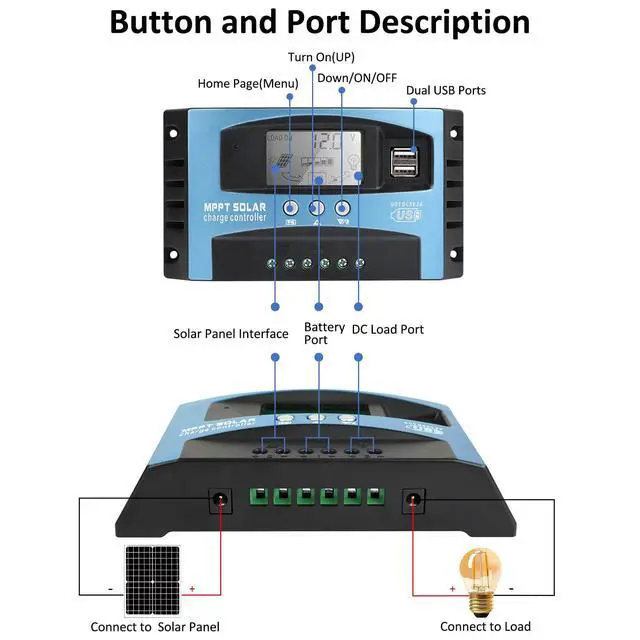

- PLUG AND PLAY: Firstly connect the battery, then connect the solar panels. When you first use it, make sure the battery has enough energy, so that the MPPT charge controller can recognize the correct battery type. You can also charge your phone, tablet, PCs through dual USB output 5V/2A (max)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Safety Instructions
Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.
The battery cable should be as short as possible to minimize loss.
Controller supports Lead-acid(OPEN, AGM, GEL), Lithium LiFePO4, Ternary Lithium batteries. lt is not suited for nickel metal hydride, lithium ions or other batteries.
The charge regulator is only suitable for regulating solar modules, never connect another charging source to the charge regulator.
Feature
Built-in industrial micro controller
Large-screen LCD display, charging and discharging current display, cumulative power generation and discharge power query, temperature display, light control + delay control; adjustable charge and discharge parameters, with power-off memory and other functions
Dual USB output, thr max current of 2A, to support mobile phone charging
Build-in short-circuit protection, open-circuit protection, reverse protection, over-load protection, reverse current protection, low heat production

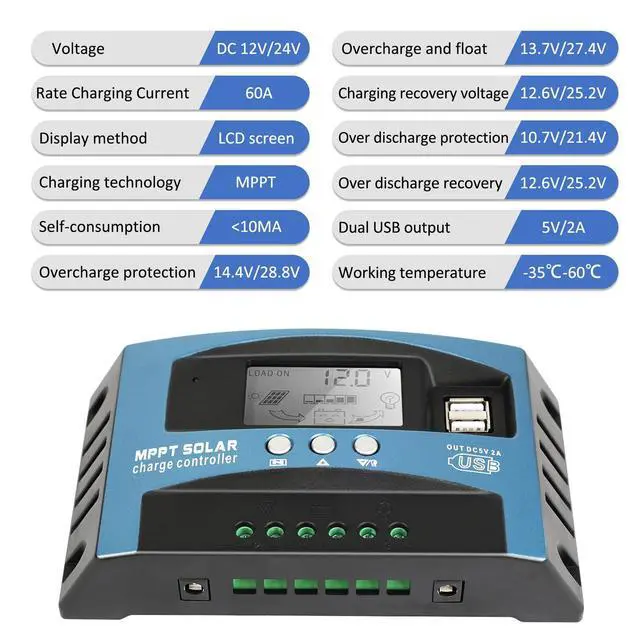

Specification
Voltage: DC 12V / 24V
Charge Current: 60A
Display method: LCD screen
Self-consumption: <10MA
Overcharge protection: 14.4V / 28.8V
Overcharge and float: 13.7V / 27.4V
Charging recovery voltage: 12.6V / 25.2V
Over discharge protection: 10.7V / 21.4V
Over discharge recovery: 12.6V / 25.2V
Dual USB output: 5V / 2A (Charge mobile phones, iPads, etc.)
Working temperature: -35-60
12V is suitable for 18V solar panels, 24V is suitable for 36V solar panels
Package includes
1 x MPPT Charge Controller
1 x User Manual
